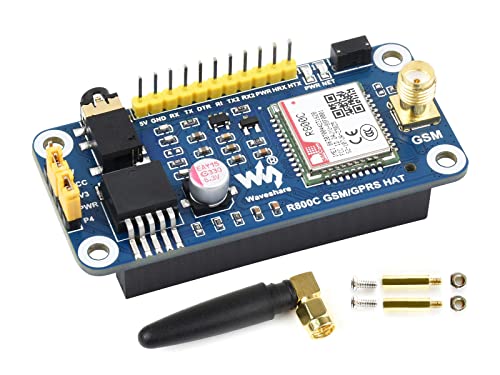

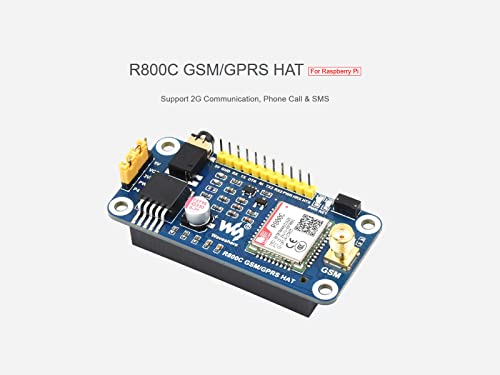

waveshare R800C GSM GPRS HAT for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B and Jetson Nano, Support 2G Communication, Phone Call, SMS, GPRS, TCP/IP, DTMF, HTTP, FTPl, etc.

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

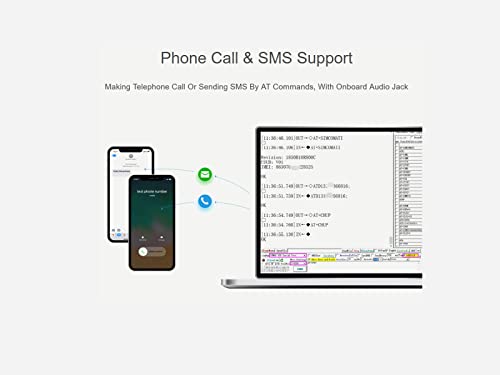

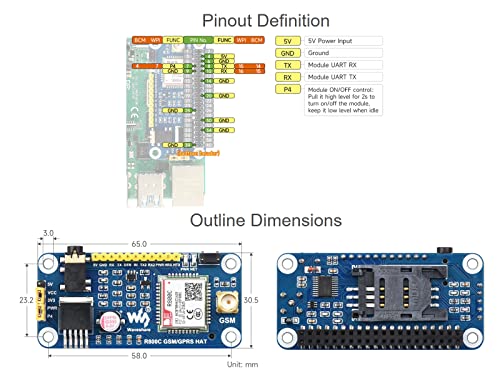

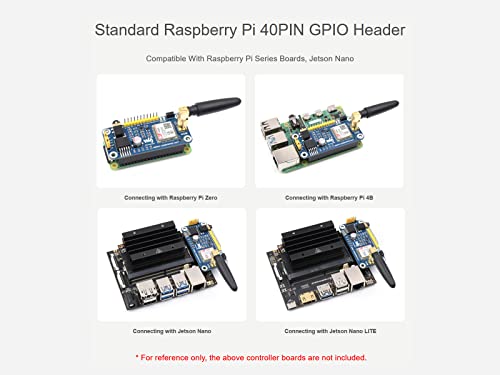

•R800C GSM/GPRS HAT supports SMS, phone call, GPRS, TCP/IP, DTMF, HTTP, FTPl, etc. with standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano
•Onboard voltage translator, 3.3V by default, switch to 5V via jumper, 2x LED indicators, easy to monitor the working status
•SIM card slot, supports 1.8V/3V SIM card, Supports SIM application toolkit: GSM 11.14 Release 99
•Baudrate: 2400bps ~ 115200bps (115200bps by default), Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
•Onboard UART interface, for connecting controller boards like Arduino/STM32

waveshare R800C GSM GPRS HAT for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B and Jetson Nano, Support 2G Communication, Phone Call, SMS, GPRS, TCP/IP, DTMF, HTTP, FTPl, etc.

waveshare R800C GSM GPRS HAT for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B and Jetson Nano, Support 2G Communication, Phone Call, SMS, GPRS, TCP/IP, DTMF, HTTP, FTPl, etc.
