Waveshare ESP32-P4-WIFI6 5inch Development Board, 720 × 1280 R | Shop The World
From USA
Newwaveshare

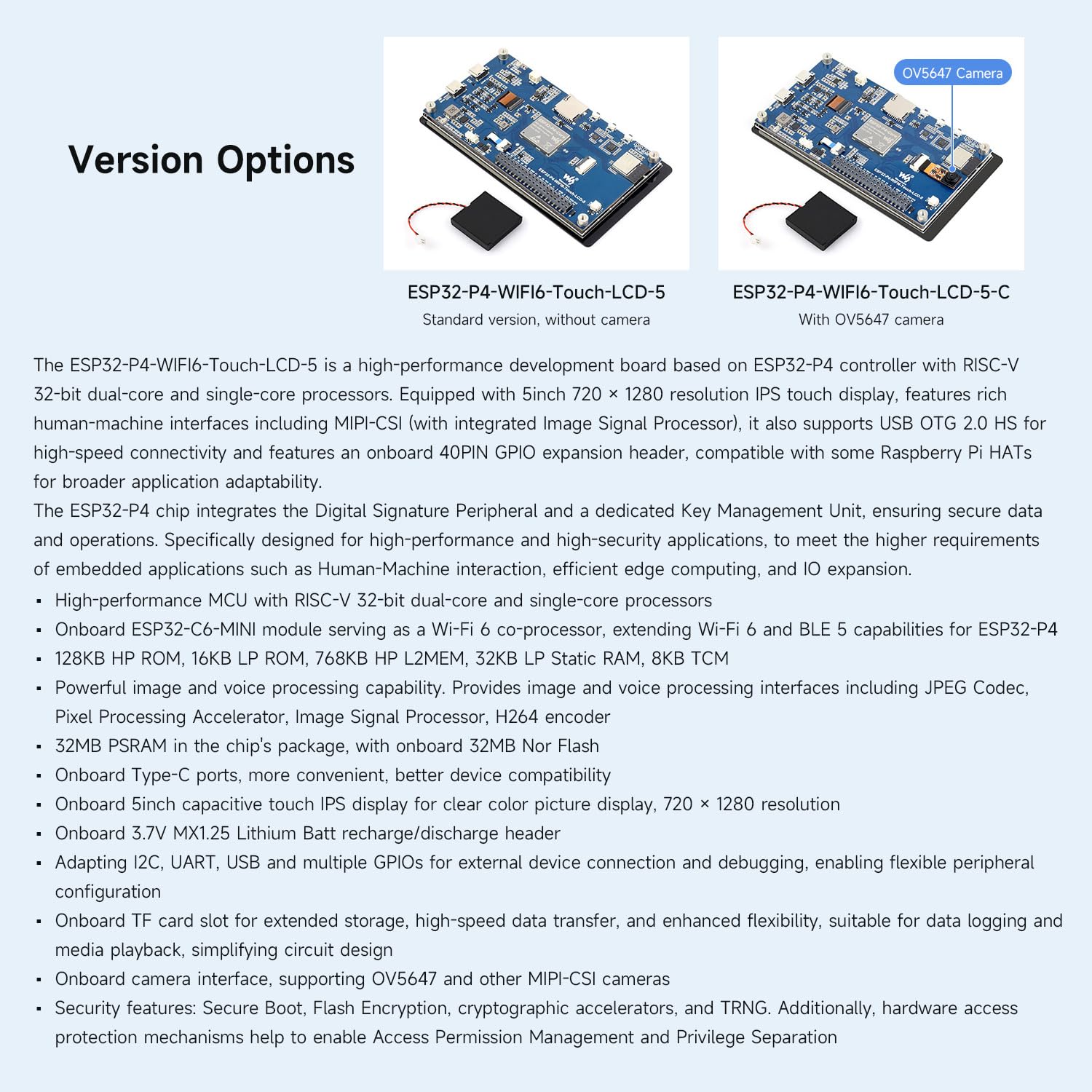

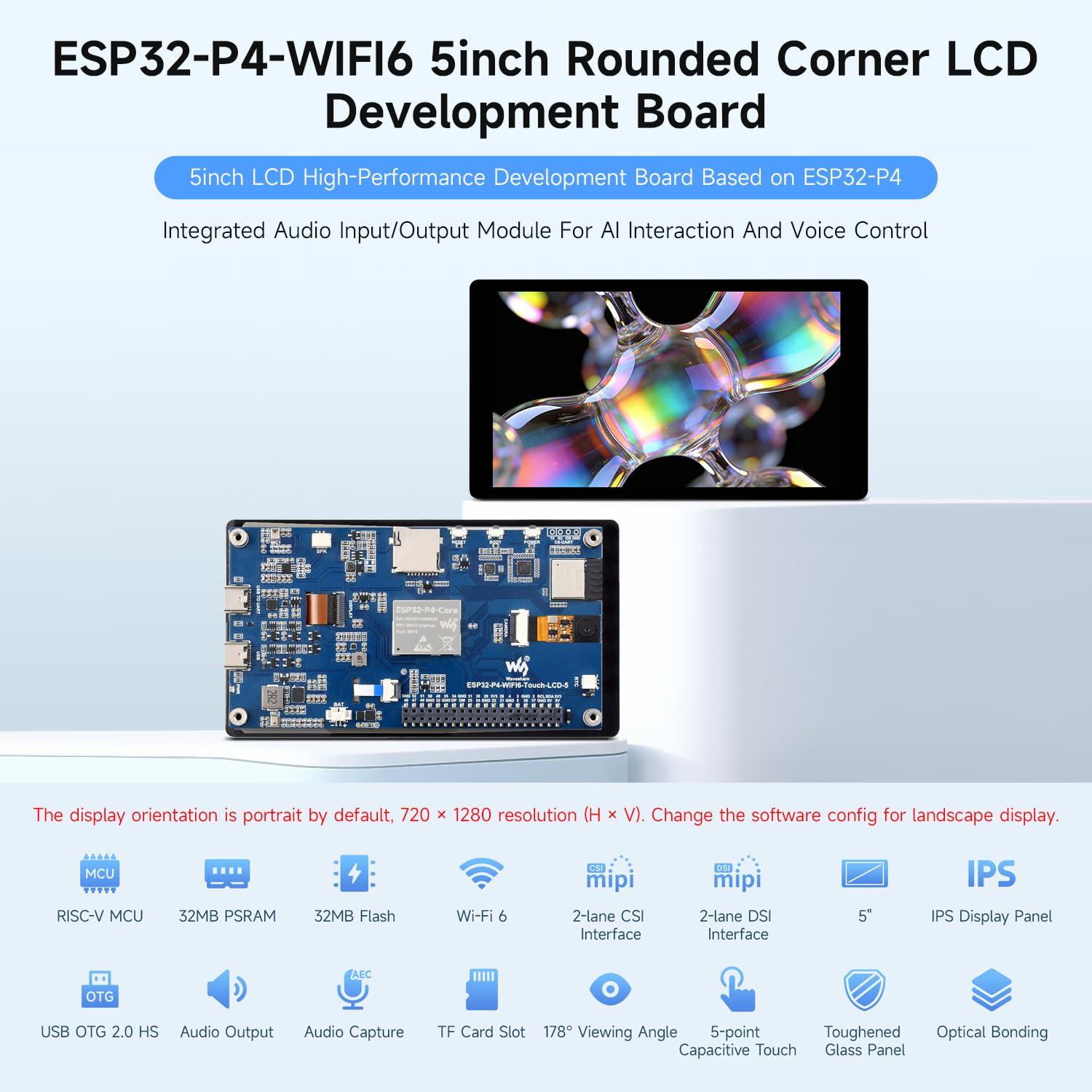

Waveshare ESP32-P4-WIFI6 5inch Development Board, 720 × 1280 Resolution, 5-Point Touch, Onboard Audio codec chip, Supports Wi-Fi 6 and BLE 5
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•High-performance MCU with RISC-V 32-bit dual-core and single-core processors. Onboard ESP32-C6-MINI module serving as a Wi-Fi 6 co-processor, extending Wi-Fi 6 and BLE 5 capabilities for ESP32-P4. 128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP Static RAM, 8KB TCM
•Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder. 32MB PSRAM in the chip's package, with onboard 32MB Nor Flash. Onboard Type-C ports, more convenient, better device compatibility

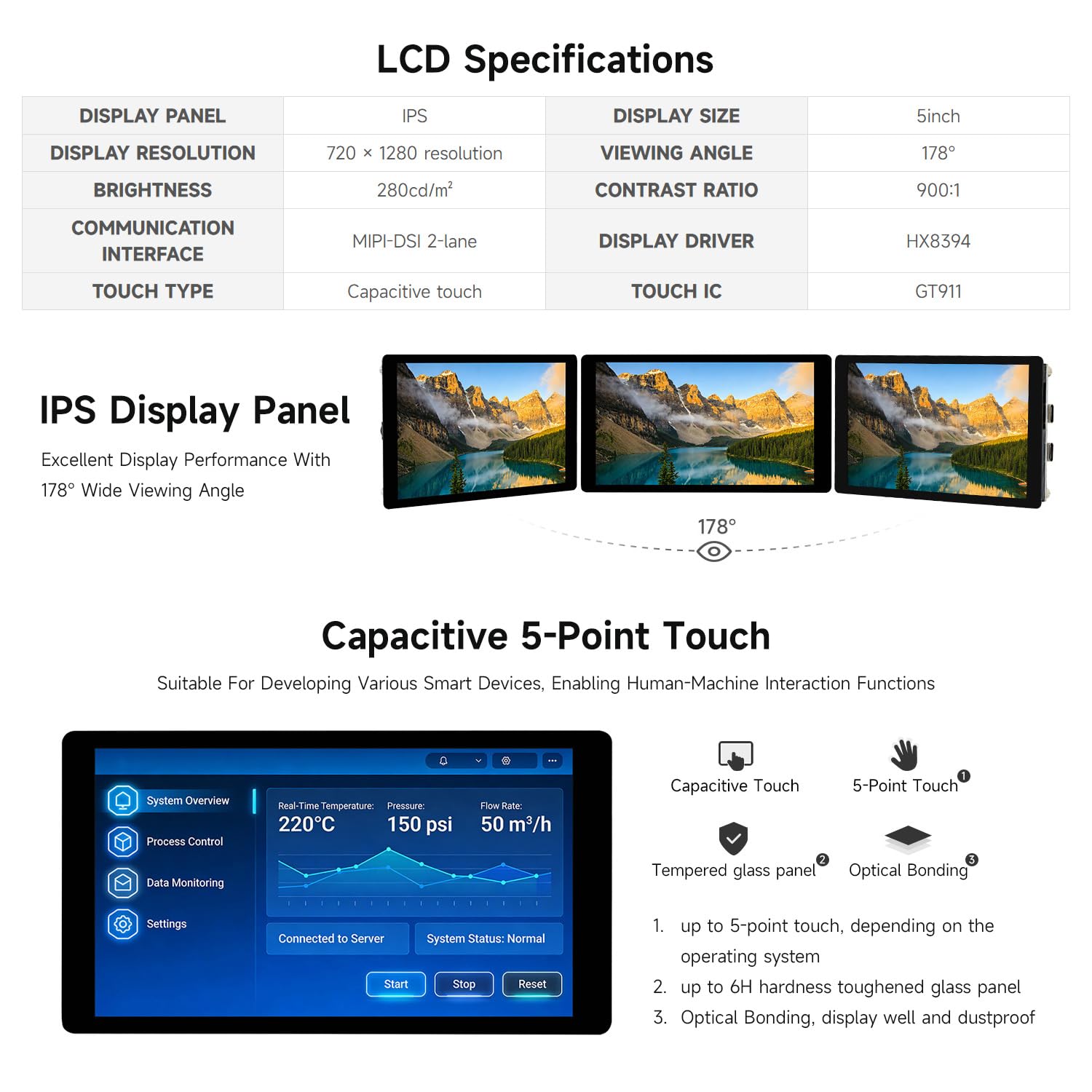

•Onboard Type-C ports, more convenient, better device compatibility. Onboard 5inch capacitive touch IPS display for clear color picture display, 720 × 1280 resolution. Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
•Adapting I2C, UART, USB and multiple GPIOs for external device connection and debugging, enabling flexible peripheral configuration. Onboard TF card slot for extended storage, high-speed data transfer, and enhanced flexibility, suitable for data logging and media playback, simplifying circuit design
•Onboard camera interface, supporting OV5647 and other MIPI-CSI cameras. Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation
