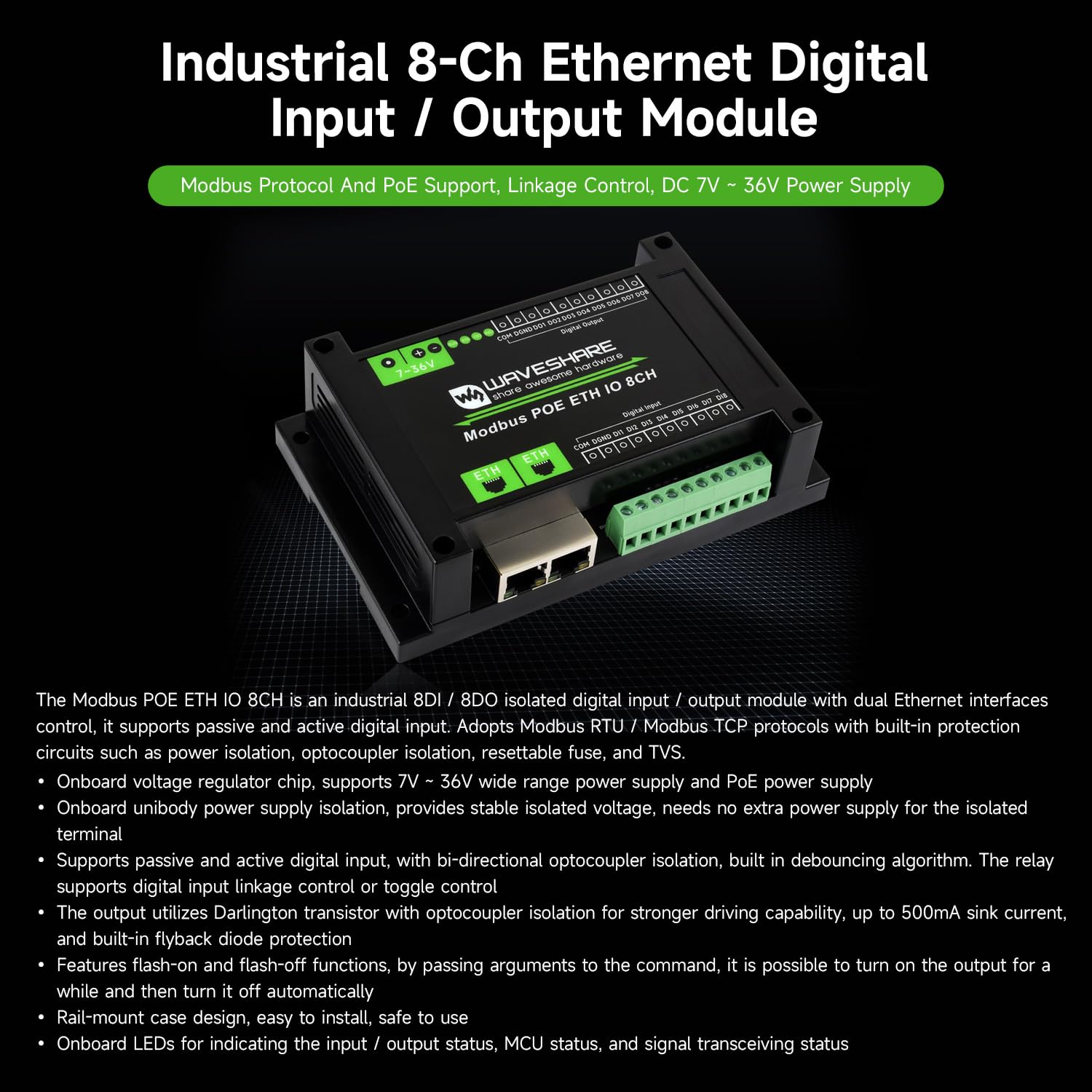

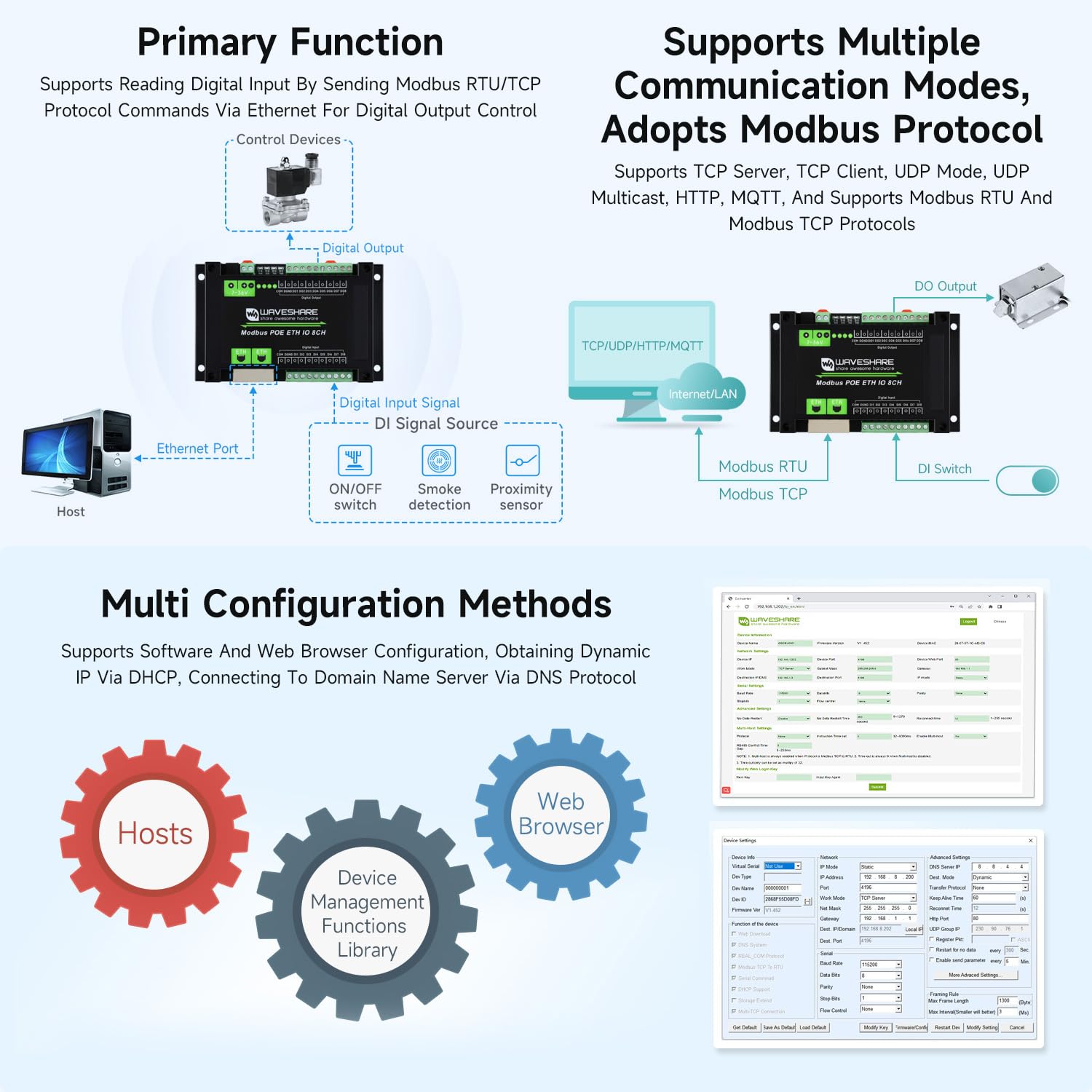

Waveshare Industrial 8-Ch Ethernet Digital Input/Output Module, Modbus RTU/TCP Protocols, Supports PoE Power Supply, with Various Isolation and Protection Circuits
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

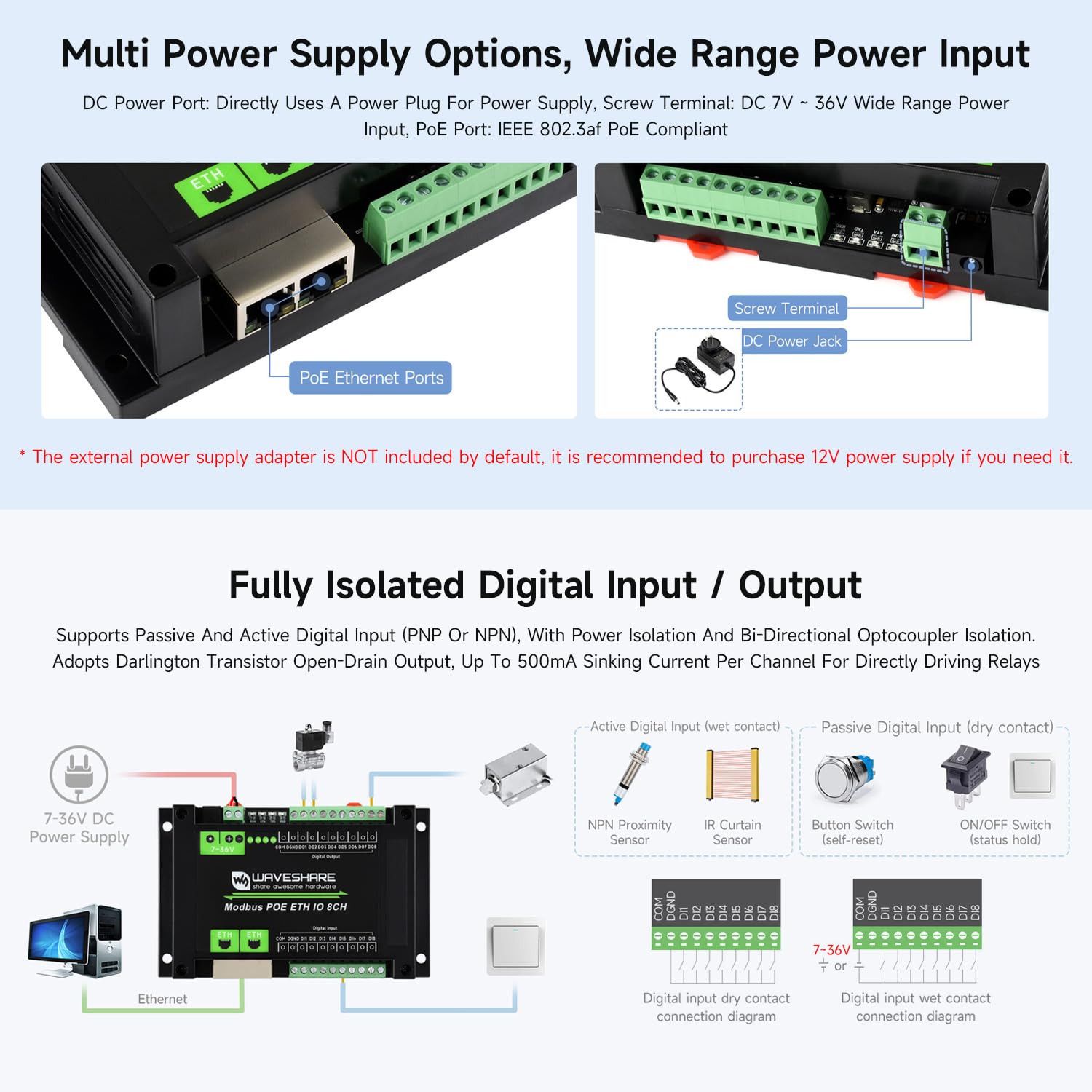

•Onboard voltage regulator chip, supports 7V ~ 36V wide range power supply and PoE power supply. Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
•Supports passive and active digital input, with bi-directional optocoupler isolation, built in debouncing algorithm. The relay supports digital input linkage control or toggle control
•The output utilizes Darlington transistor with optocoupler isolation for stronger driving capability, up to 500mA sink current, and built-in flyback diode protection
•Features flash-on and flash-off functions, by passing arguments to the command, it is possible to turn on the output for a while and then turn it off automatically
•Rail-mount case design, easy to install, safe to use. Onboard LEDs for indicating the input / output status, MCU status, and signal transceiving status
