waveshare MLX90641 IR Array Thermal Imaging Camera 16×12 Pixels, 55° Field of View, 3.3V/5V, Communicating via I2C Interface, Compatible with Raspberry Pi/Arduino(ESP32)/STM32
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

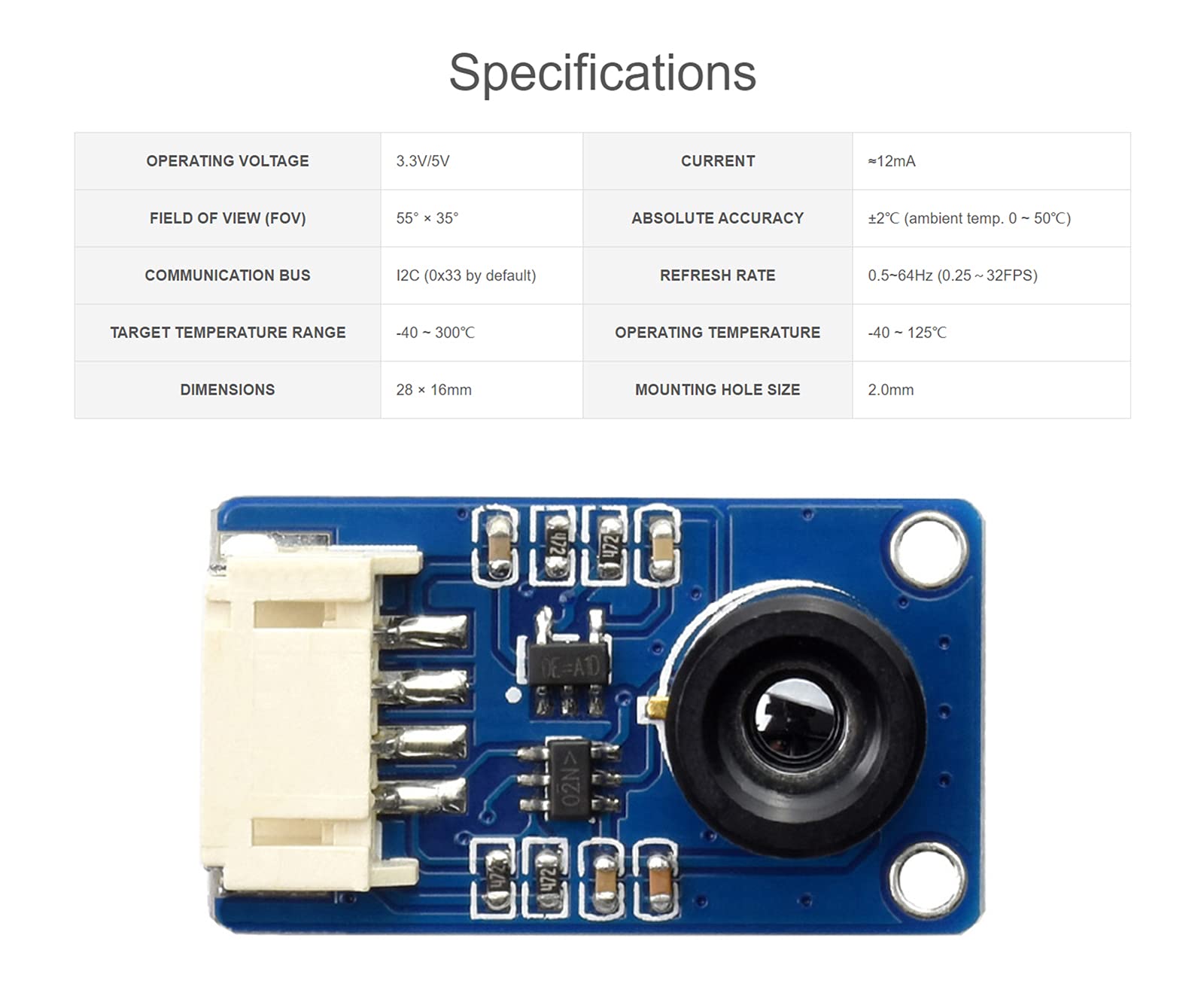

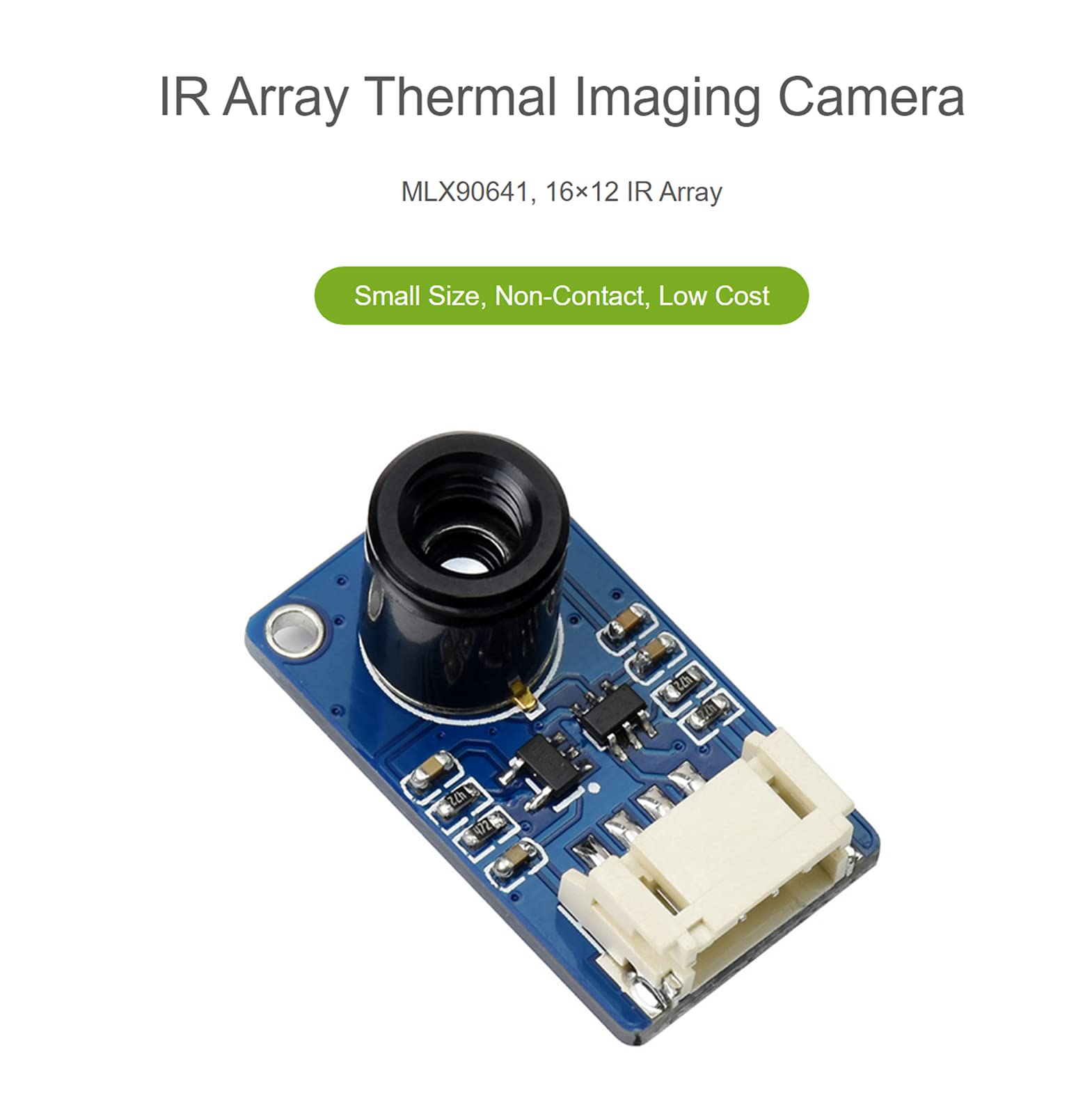

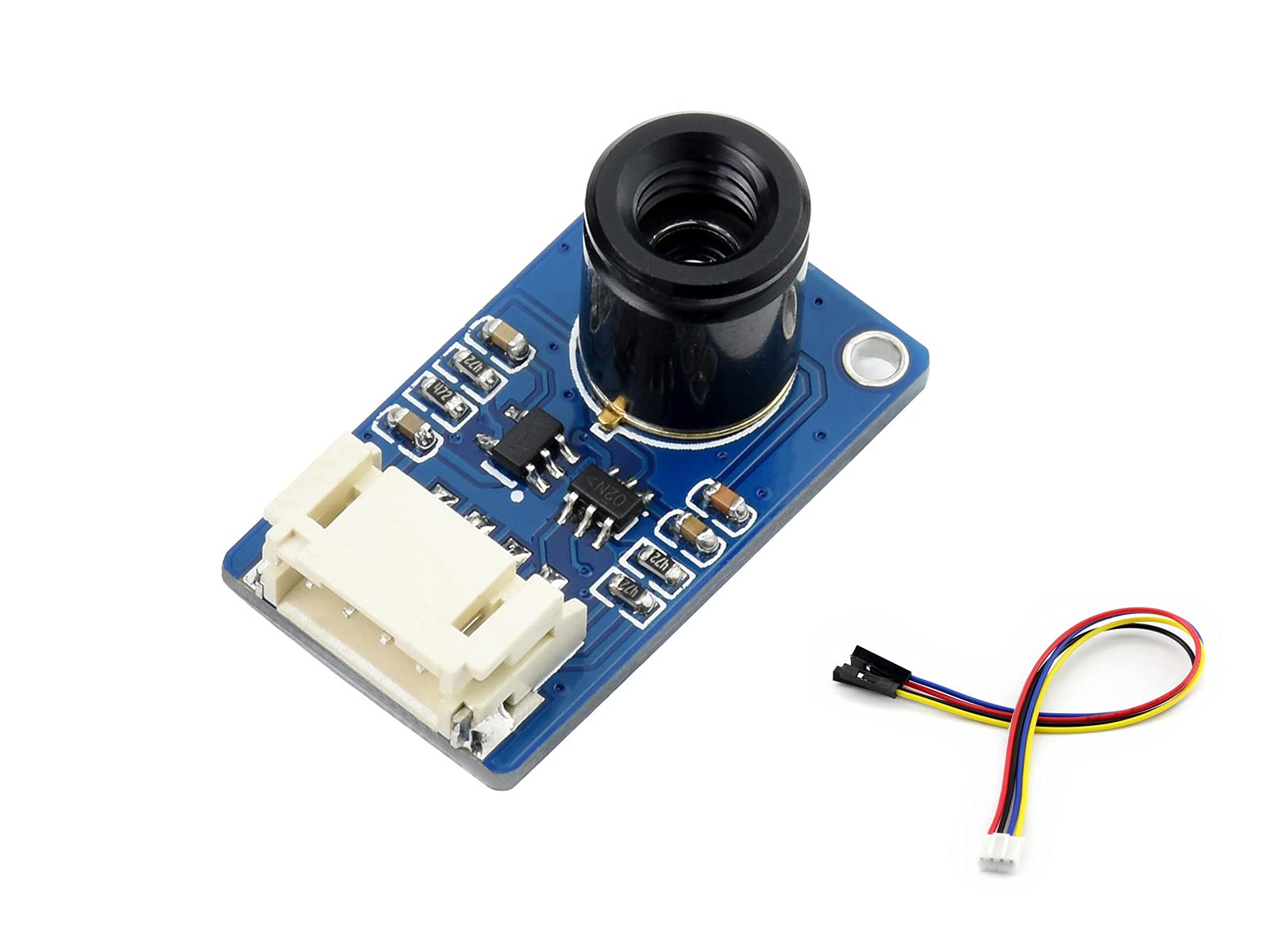

•Waveshare MLX90641-D55 Thermal Camera is a small size, non-contact, and low cost IR array thermal imaging camera, adopts MLX90641 far-infrared thermal sensor array, with 16×12 pixels

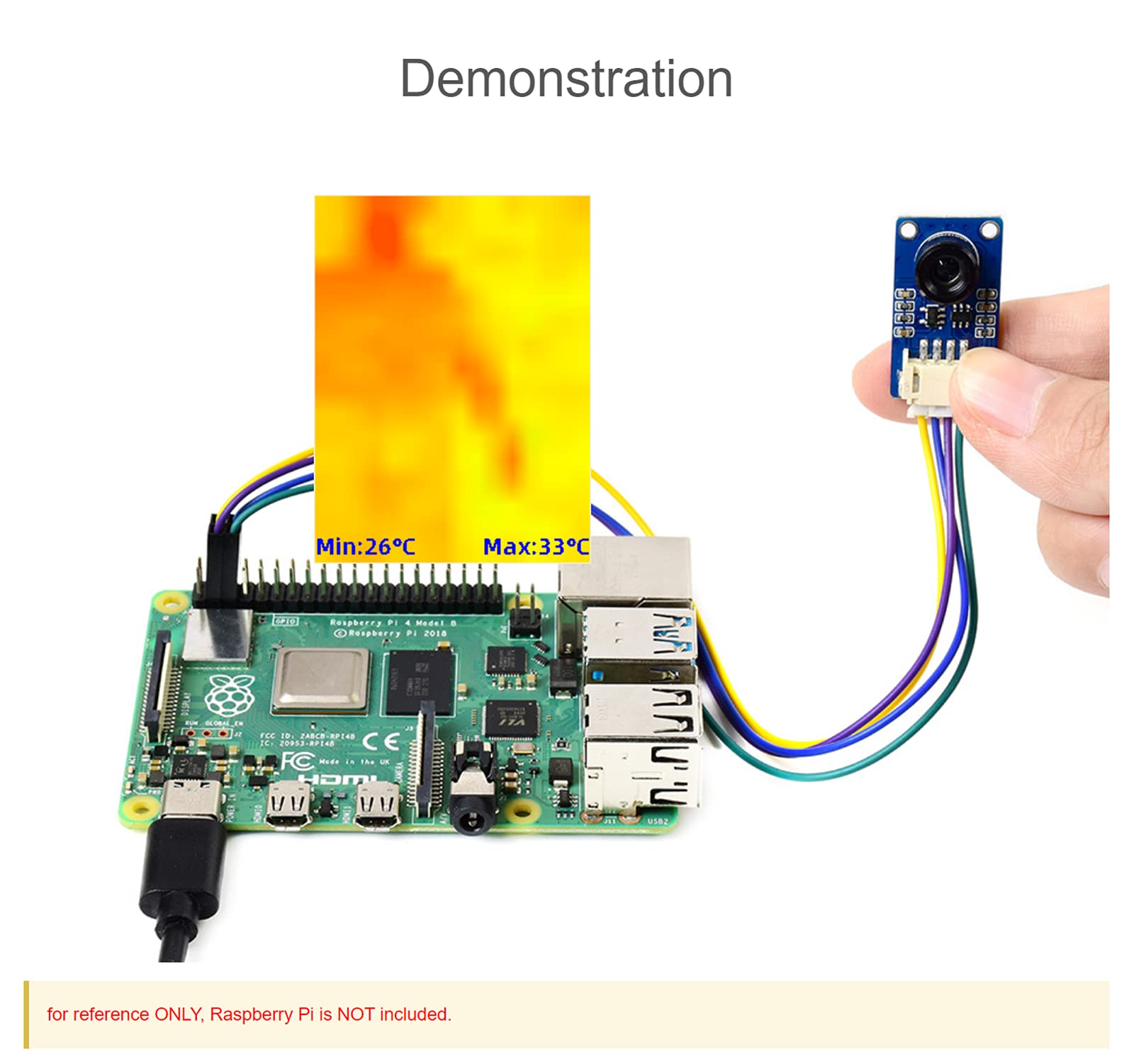

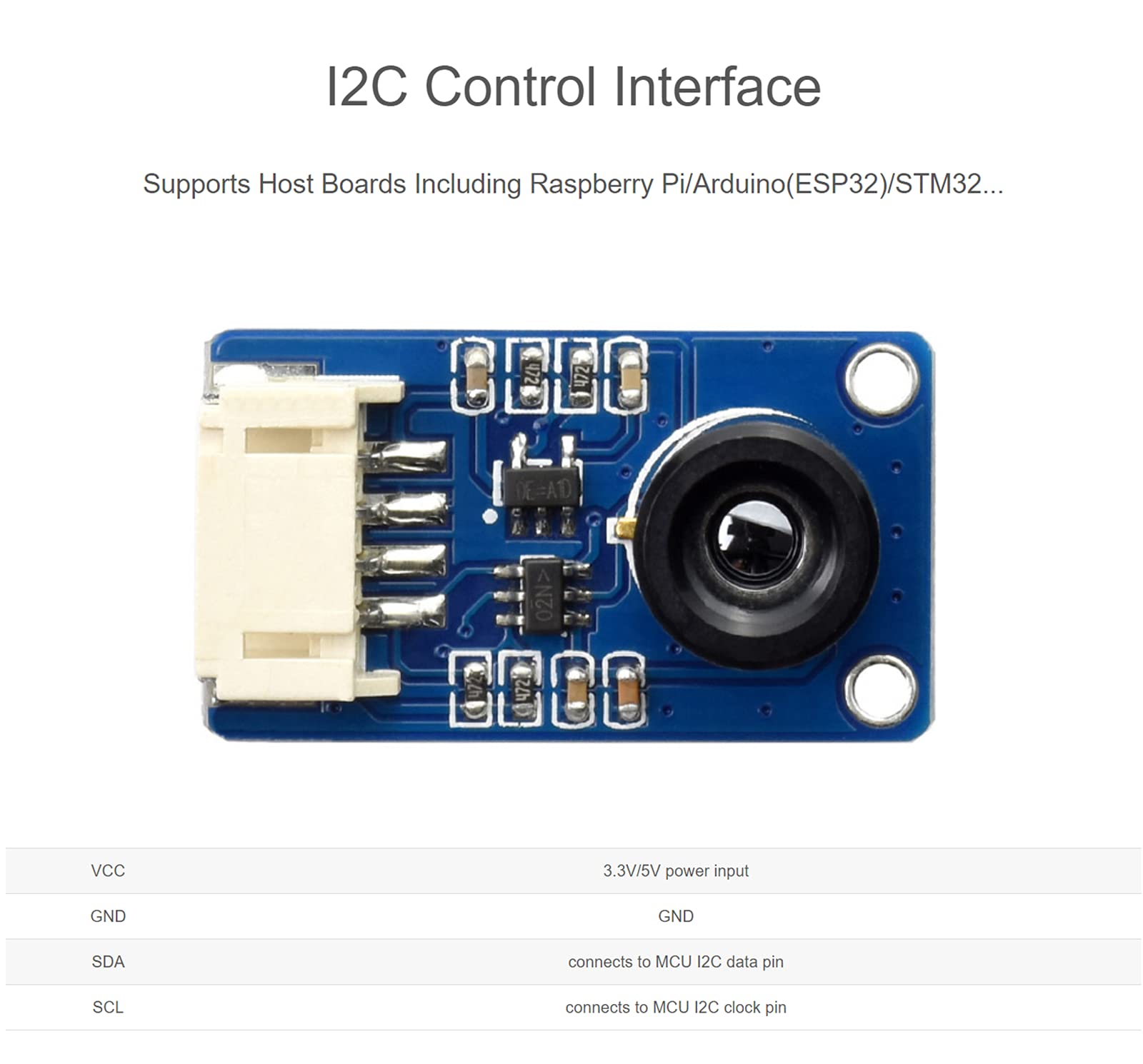

•Communicating via I2C interface, configurable to fast mode (up to 1MHz data rate), supports host boards including Raspberry Pi/Arduino(ESP32)/STM32
•Noise Equivalent Temperature Difference (NETD) 0.1K RMS@4Hz refresh rate
•Onboard voltage translator, compatible with 3.3V/5V operating voltage
