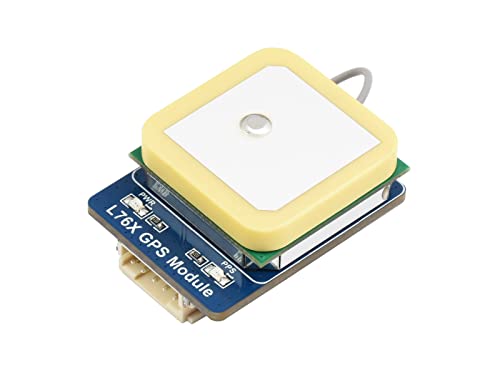

Waveshare L76K Multi-GNSS Module, Supports Multi-GNSS Systems Supports GPS/BeiDou(BDS)/GLONASS/QZSS, Compatible with Raspberry Pi/Pi Pico/Jetson Nano etc.

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

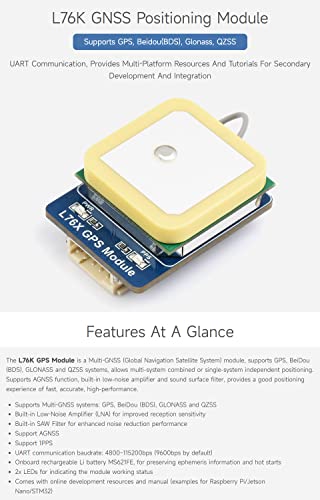

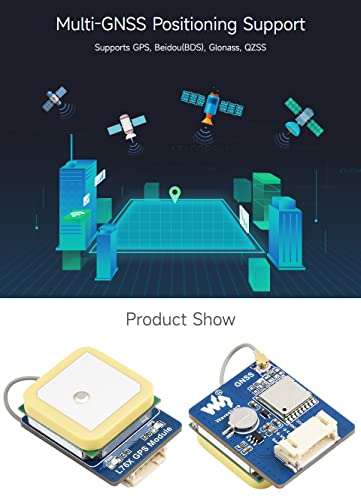

•The L76K GPS Module is a Multi-GNSS (Global Navigation Satellite System) module, supports GPS/BeiDou (BDS)/GLONASS and QZSS systems, allows multi-system combined or single-system independent positioning
•Built-in Low-Noise Amplifier (LNA) for improved reception sensitivity. Built-in SAW Filter for enhanced noise reduction performance
•Supports AGNSS function, Support 1PPS. UART communication baudrate: 4800~115200bps (9600bps by default)
•2x LEDs for indicating the module working status

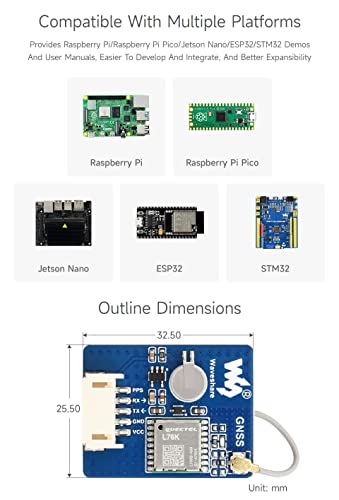

•With online development resources and manual (examples for Raspberry Pi/Jetson Nano). Easier To Develop And Integrate, And Better Expansibility

Waveshare L76K Multi-GNSS Module, Supports Multi-GNSS Systems Supports GPS/BeiDou(BDS)/GLONASS/QZSS, Compatible with Raspberry Pi/Pi Pico/Jetson Nano etc.

Waveshare L76K Multi-GNSS Module, Supports Multi-GNSS Systems Supports GPS/BeiDou(BDS)/GLONASS/QZSS, Compatible with Raspberry Pi/Pi Pico/Jetson Nano etc.
