Newwaveshare
waveshare Ethernet to UART Converter for Raspberry Pi Pico, 10/100M Ethernet, UART TTL 3.3V / 5V Compatible, TCP/UDP Operating Modes, Supports 2-CH Ethernet to UART Data Transparent Transmission
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

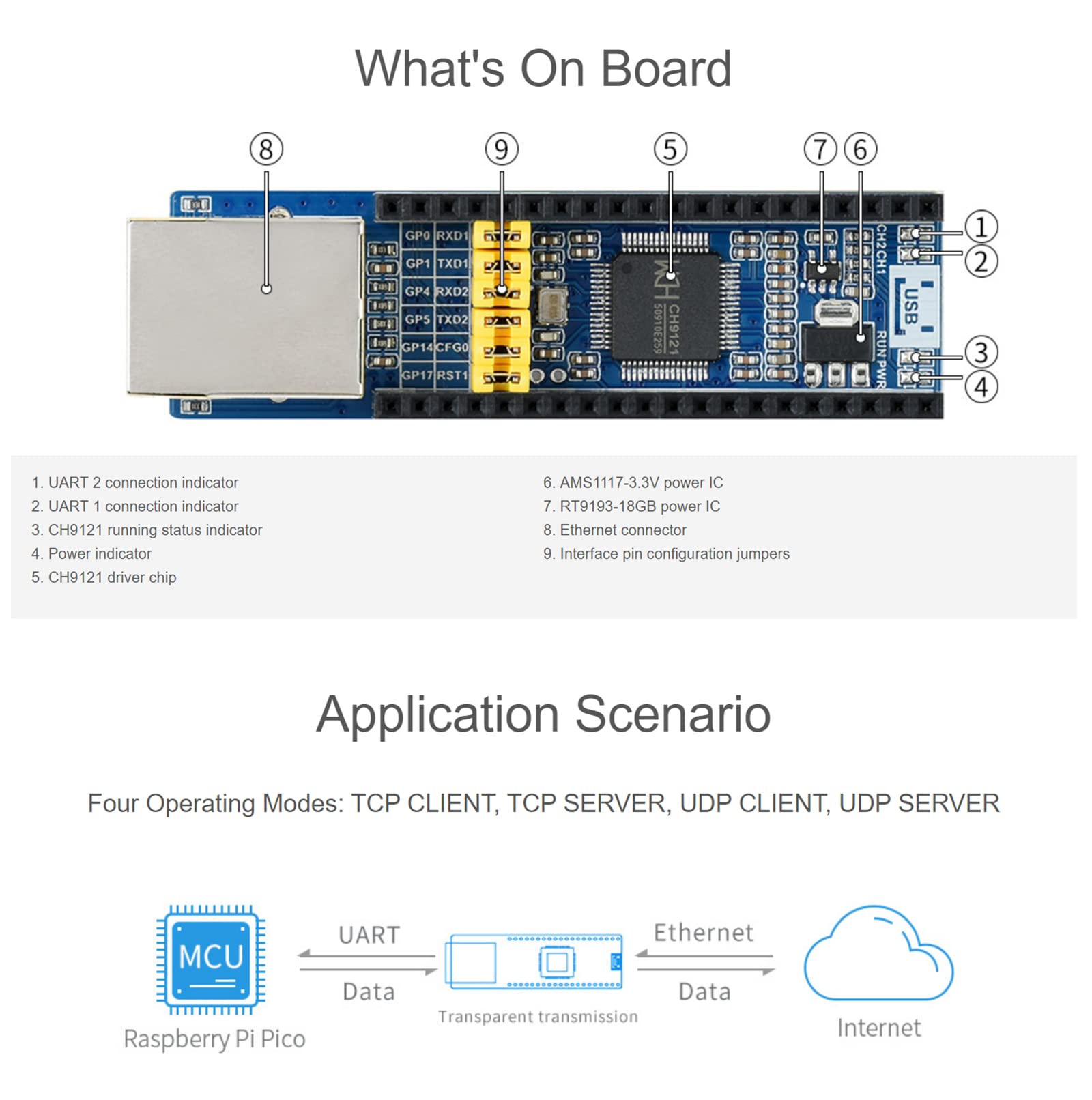

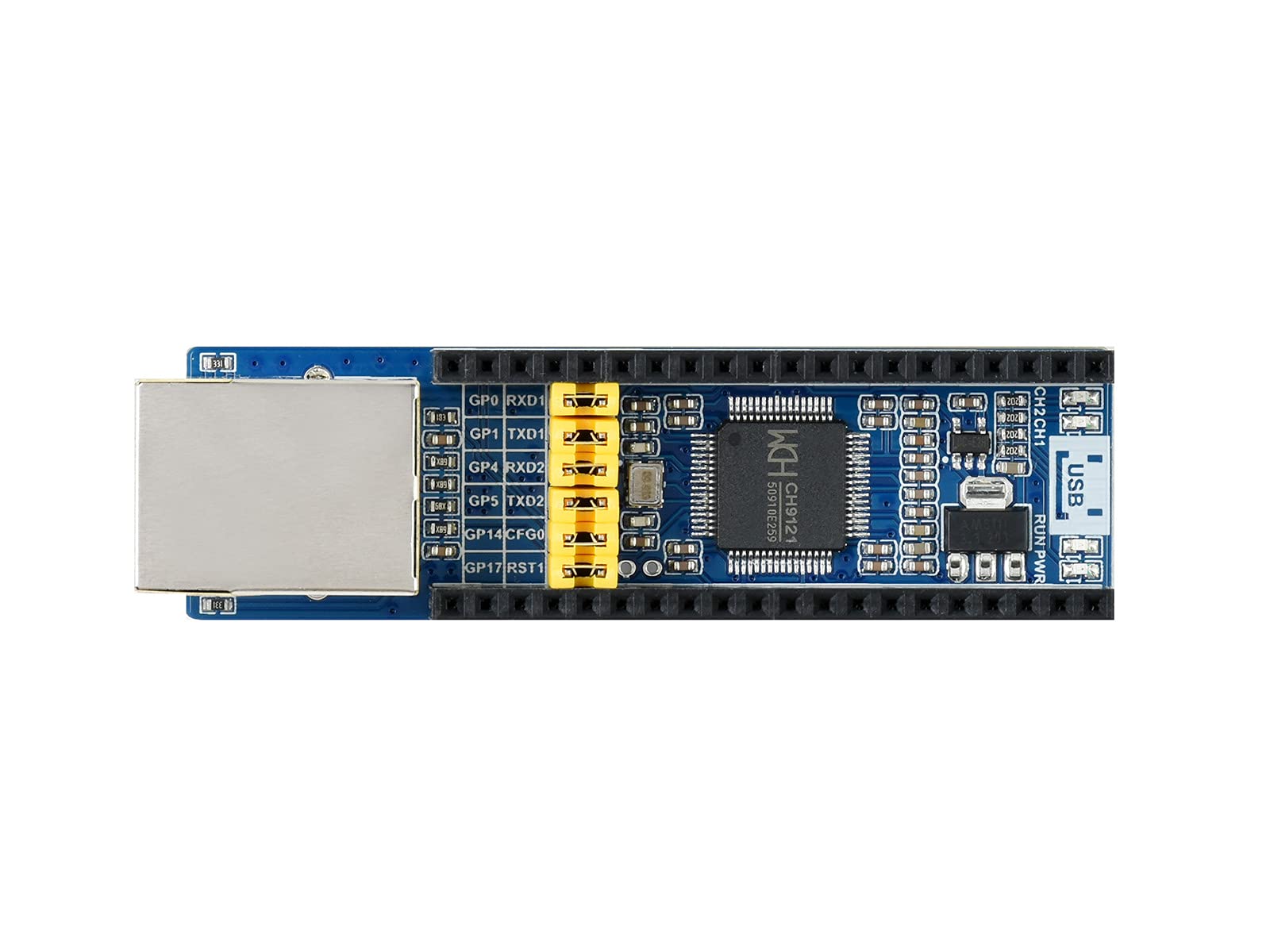

•Ethernet to UART converter for Raspberry Pi Pico, onboard Ethernet to UART transparent transceiver, 2-CH UART, standalone transparent transmission for each channel
•10/100M Ethernet, full-duplex/half-duplex auto-negotiation Ethernet interface, 802.3-compliant, embedded Ethernet MAC and PHY layers, bi-direction transparent data transmission between UART and Ethernet
•Auto-MDI/MDIX, detect and switch cable type automatically, supports DHCP auto-obtained IP and DNS domain access, network parameter configuration like chip operating mode, port, IP, via host computer software or UART command
•Full-duplex or half-duplex UART communication, supports RS485 RX/TX auto switch (external RS485 controller required), Supports virtual serial port software (provided), KEEPALIVE mechanism support
