Waveshare 7.5inch E-Paper HAT Display Module Compatible with Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH/Jetson Nano, 800×480 Resolution Black and White
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•This product has been updated to V2 with 800 x 480 resolution (the V1 has a resolution of 640 x 384). The hardware structure and interface of V2 are compatible with the V1, but the software needs to be updated. If you purchase it for the first time, and there is a V2 label on the back of the screen, you can directly use the program for V2.

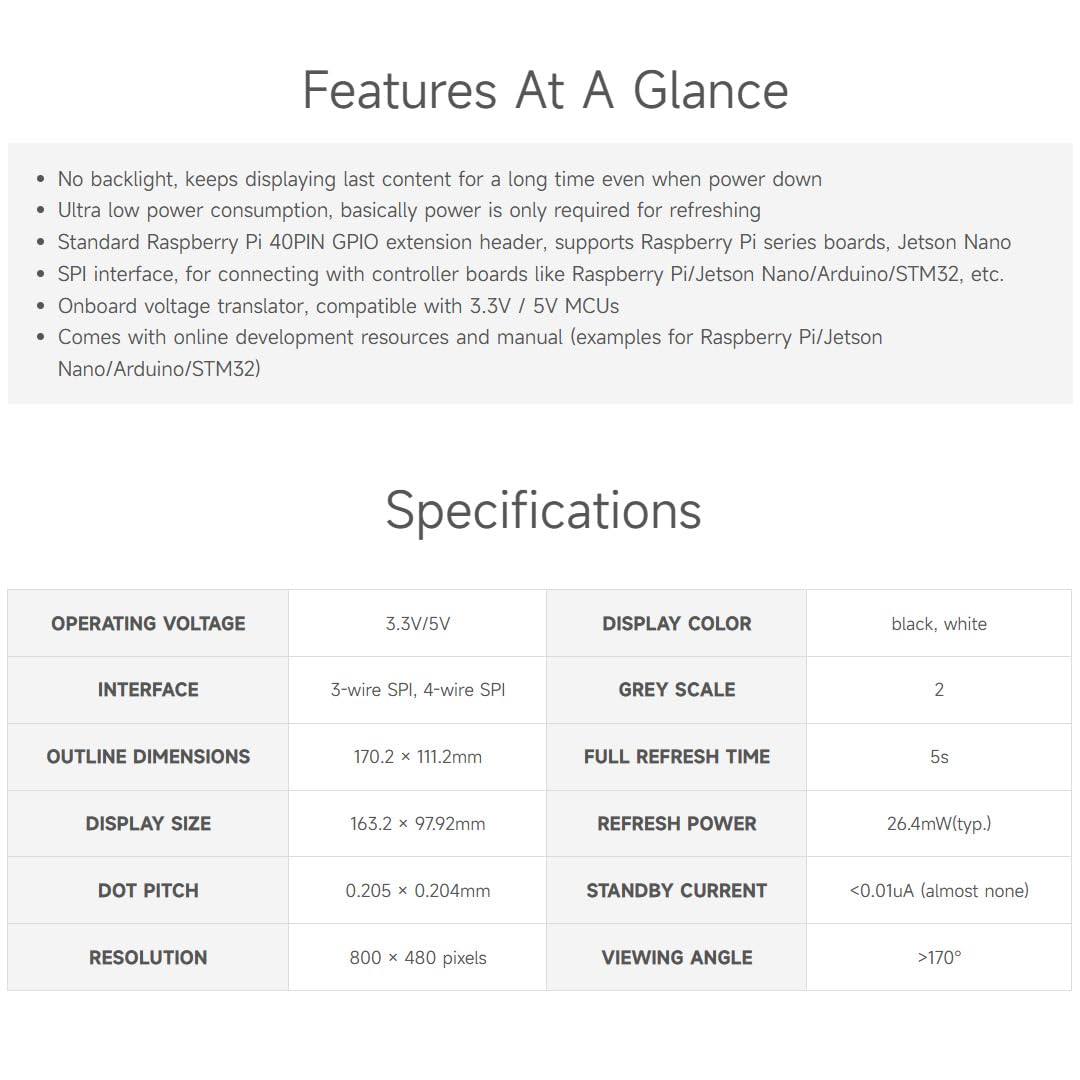

•This is an E-Ink display HAT for Raspberry Pi, 7.5inch, 800×480 resolution, with embedded controller, communicating via SPI interface. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
•No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing.

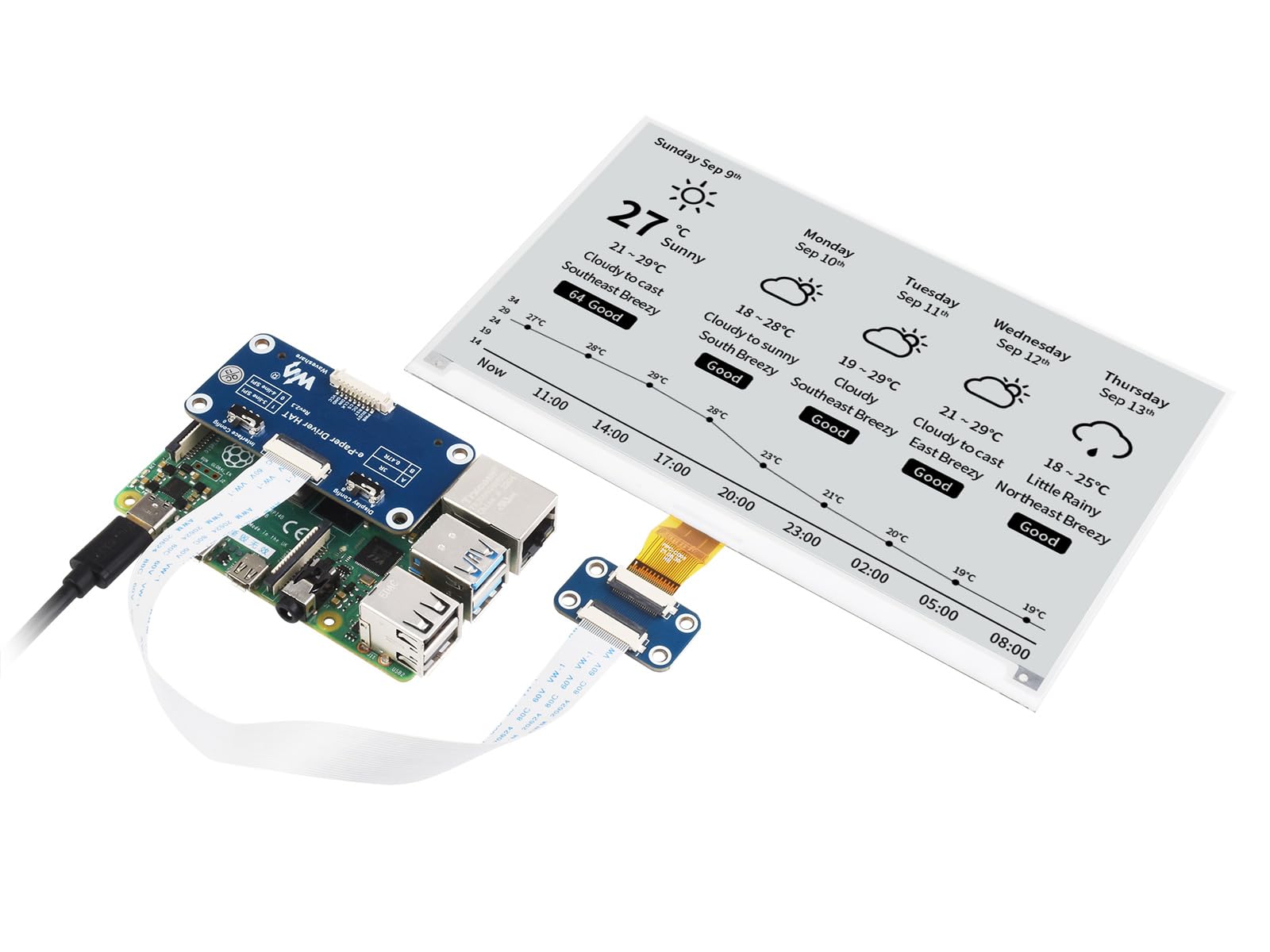

•Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. SPI interface, for connecting with other controller boards like Raspberry//Nucleo, etc. Onboard voltage translator, compatible with 3.3V/5V MCUs.
•Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano//STM32).
