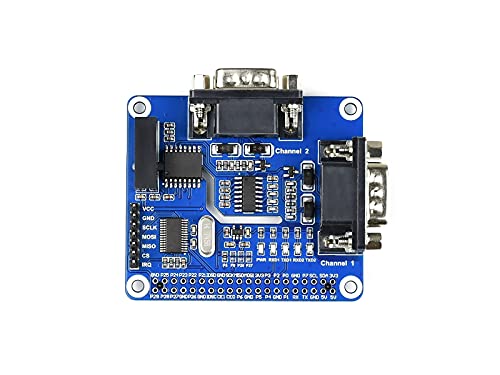

Waveshare 2-Channel Isolated RS232 Expansion HAT for Raspberry Pi SC16IS752+SP3232 with Protection Circuits Power Supply Isolation ADI Magnetical Isolation and TVS Diode
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

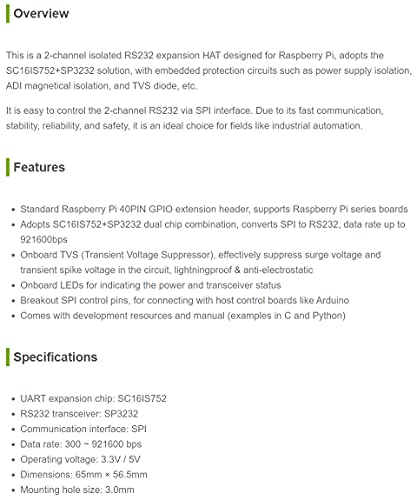

•Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

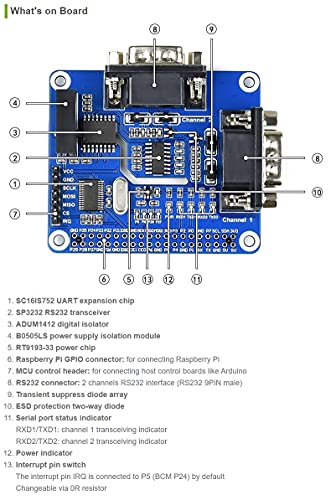

•Adopts SC16IS752+SP3232 dual chip combination, converts SPI to RS232, data rate up to 921600bps
•Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
•Onboard LEDs for indicating the power and transceiver status. Breakout SPI control pins, for connecting with host control boards like Arduino
•Comes with development resources and manual (examples in C and Python)
