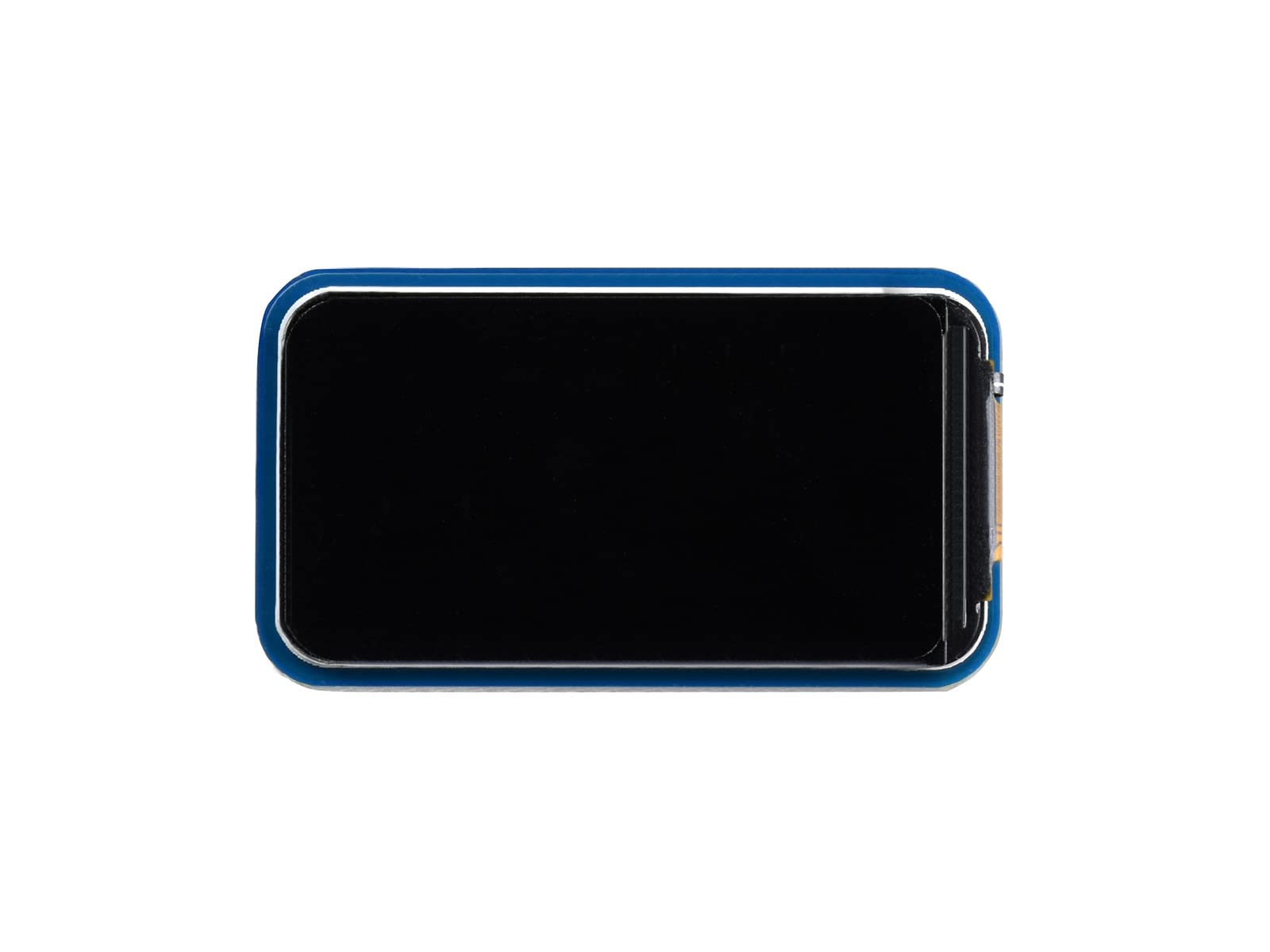

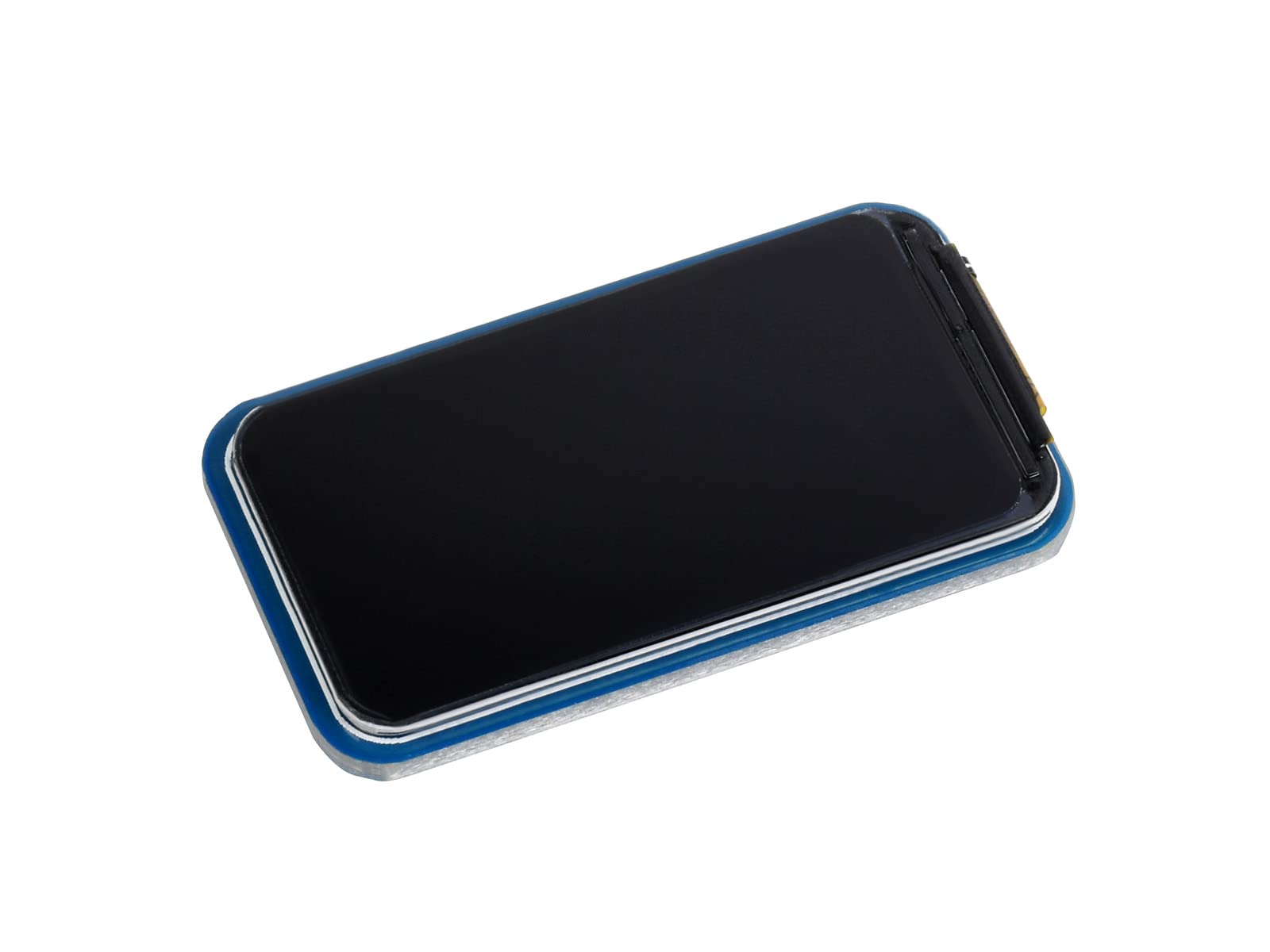

waveshare 1.47inch LCD Display Module Compatible with Raspberry Pi Pi4B/3B+/3B and so on Rounded Corners 172×320 Resolution with SPI Interface

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

•Comes with development resources (examples for Raspberry Pi/Arduino/STM32), please check it on the online user manual.

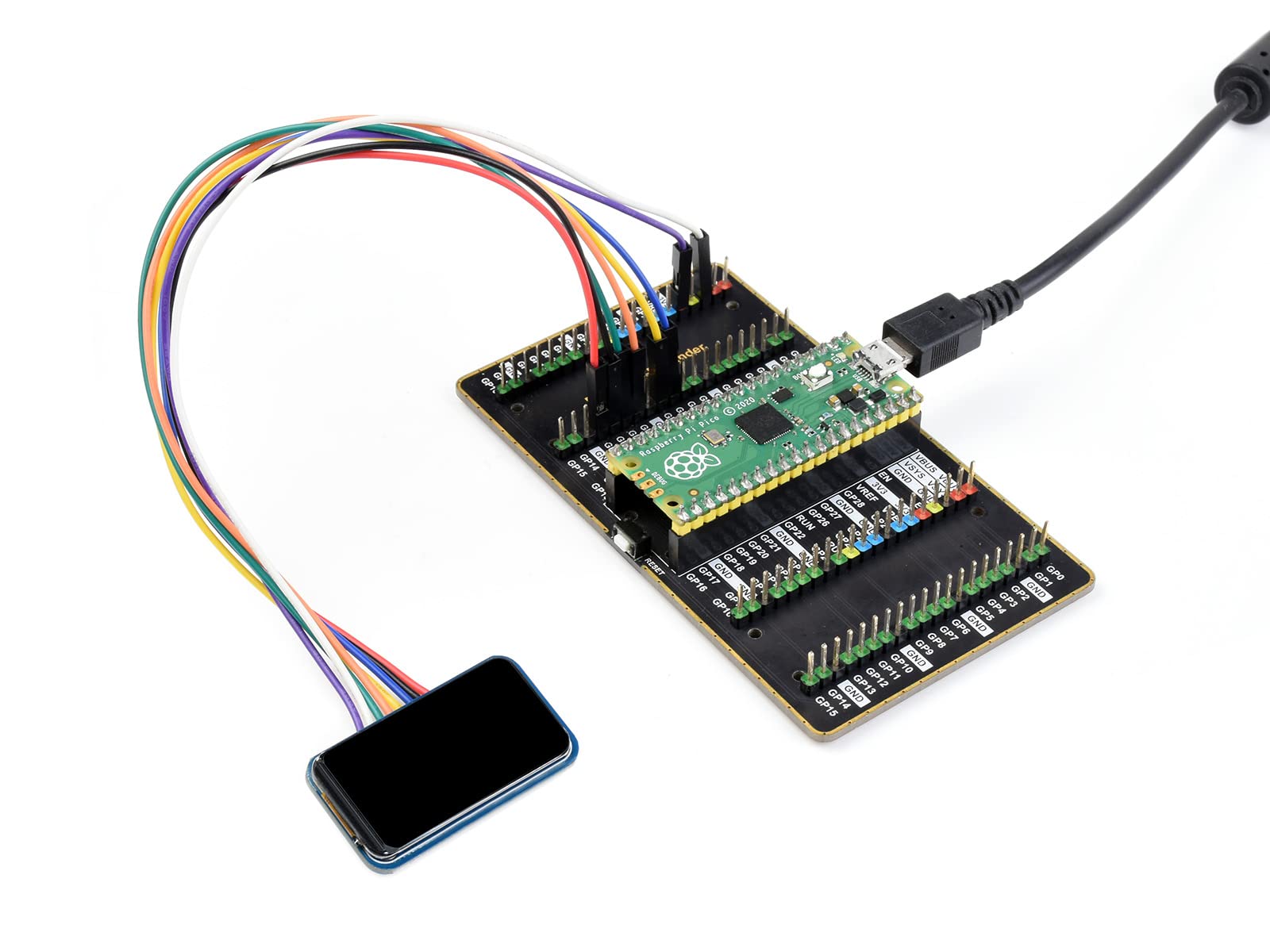

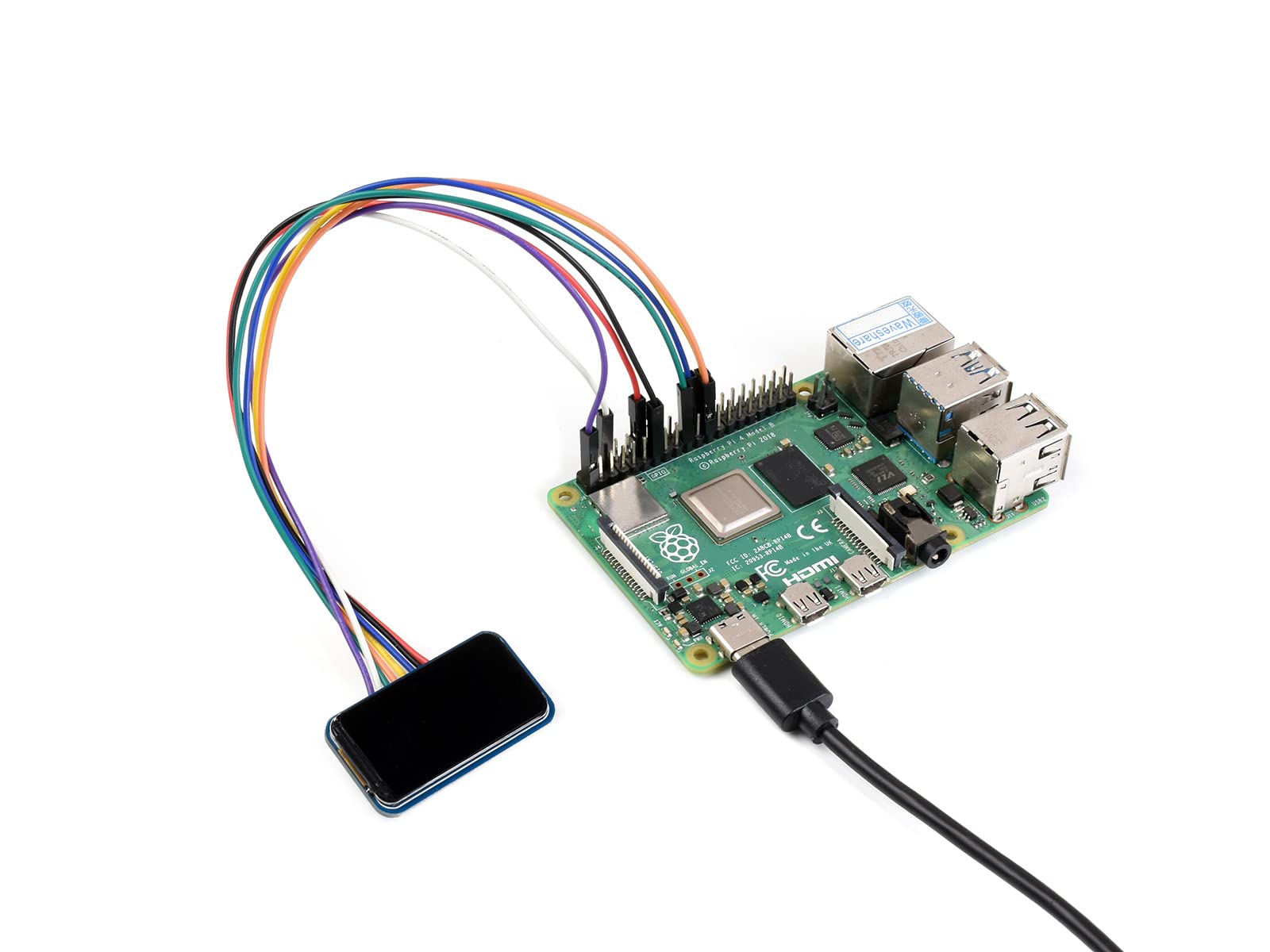

•SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
•172×320 resolution, 262K RGB colors, clear and colorful displaying effect
•Working voltage: 3.3V/5V (please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly)
•Communication interface: SPI;Screen Type: IPS;Control chip: ST7789V3;Resolution: 172(H)RGB x 320(V);Display size: 17.39 x 32.35 mm;Pixel pitch: 0.0337(H) x 0.1011(V) mm;Product size: 22.0 × 38.5 mm.
