Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

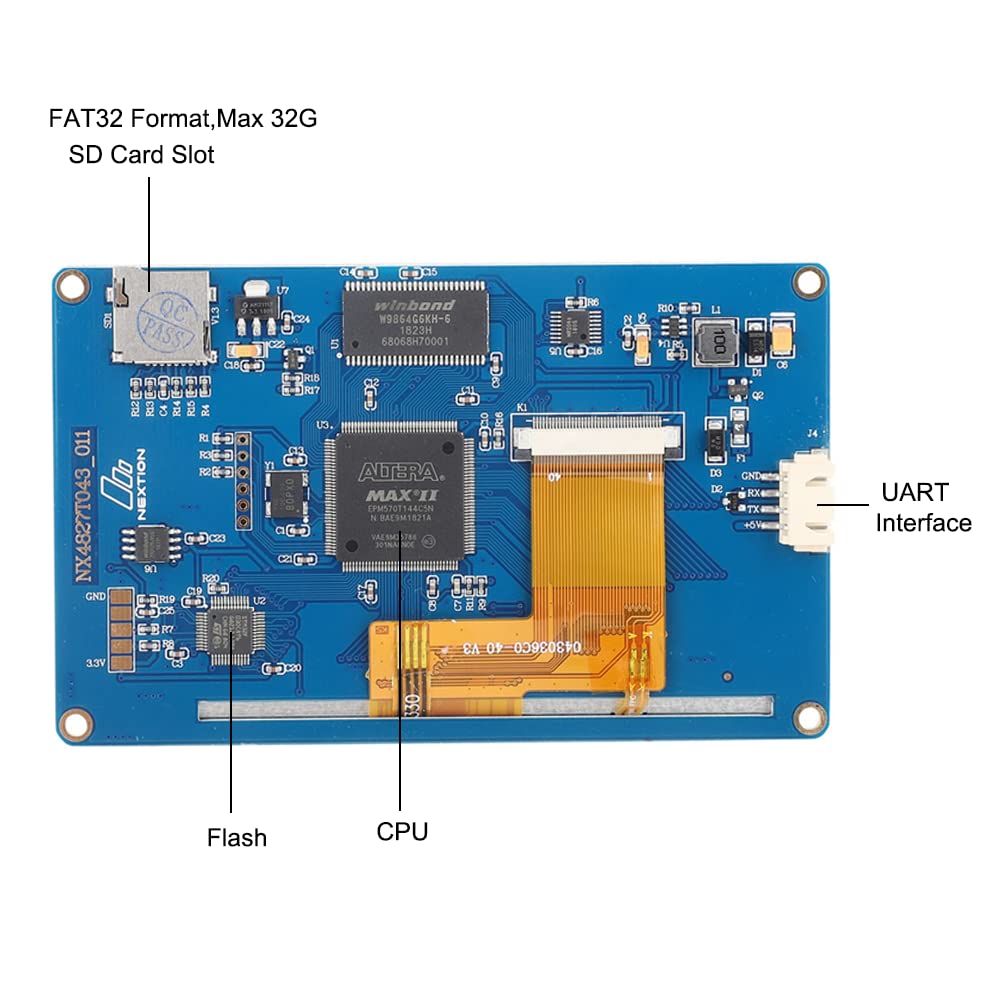

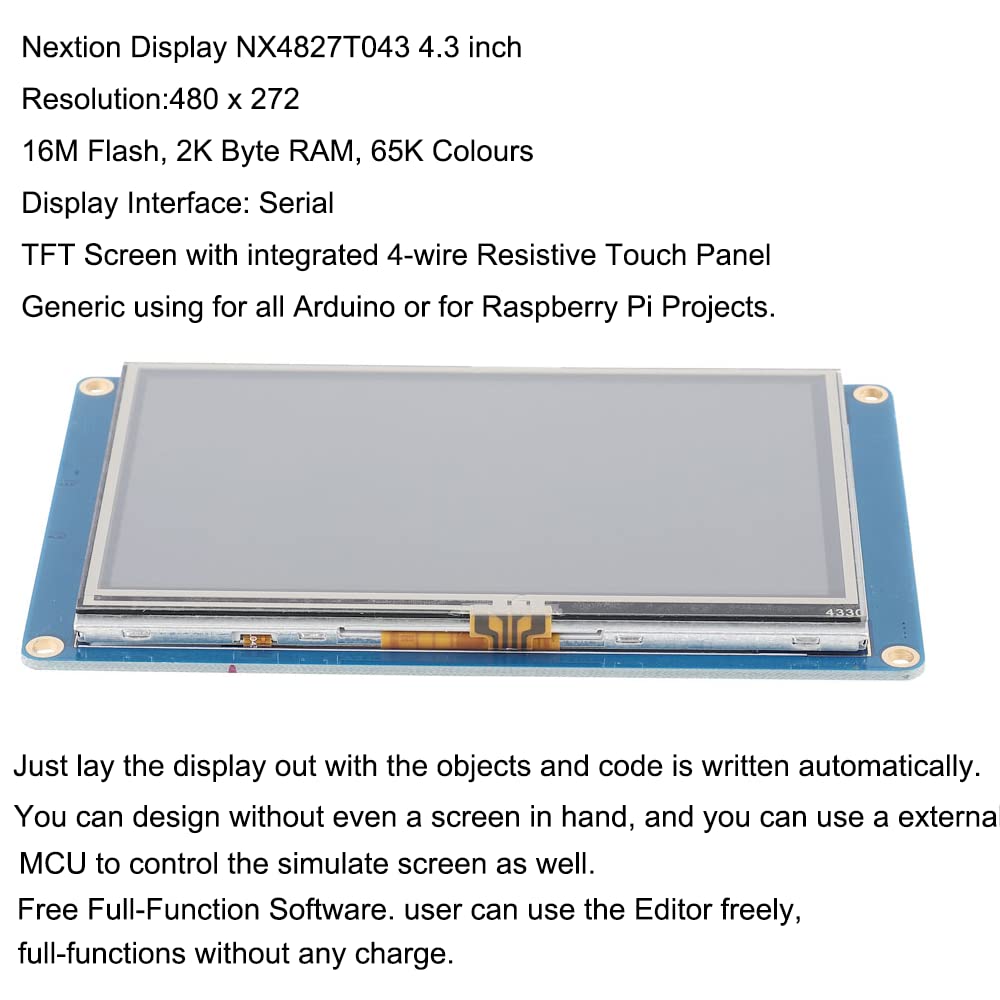

•NX2432T043 is a powerful 4.3'' HMI, a 4.3" TFT 480X272 resistive touch screen display, 16M Flash, 3584 Byte RAM, 65k colors.It's easy to adapt Nextion family HMI to existing projects, you just need to provide it a UART. Uploading TFT file via sd card is faster than 4pin serial port, but pls check card is FAT32 format and no more than 32GB.
•Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. Nextion is mainly applied to IoT or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.
•This solution includes hardware part - a series of TFT boards and software part - Nextion editor. Nextion TFT board uses only one serial port to do communicating. Let you get rid of the wiring trouble. We notice that most engineers spend much time in application development but get unpleasant results.
•In this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich your interface design. And the drag-and-drop function ensures that you spend less time in programming, which will reduce your 99% development workloads. With the help of this WYSIWYG editor, GUI designing is a piece of cake.
