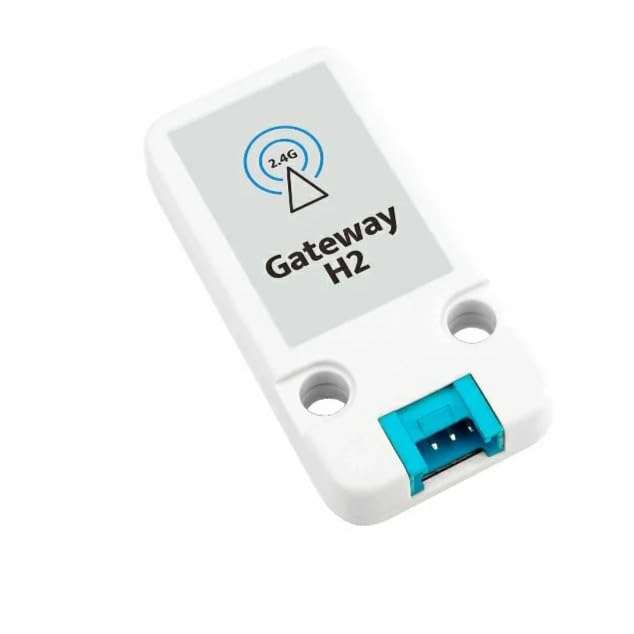

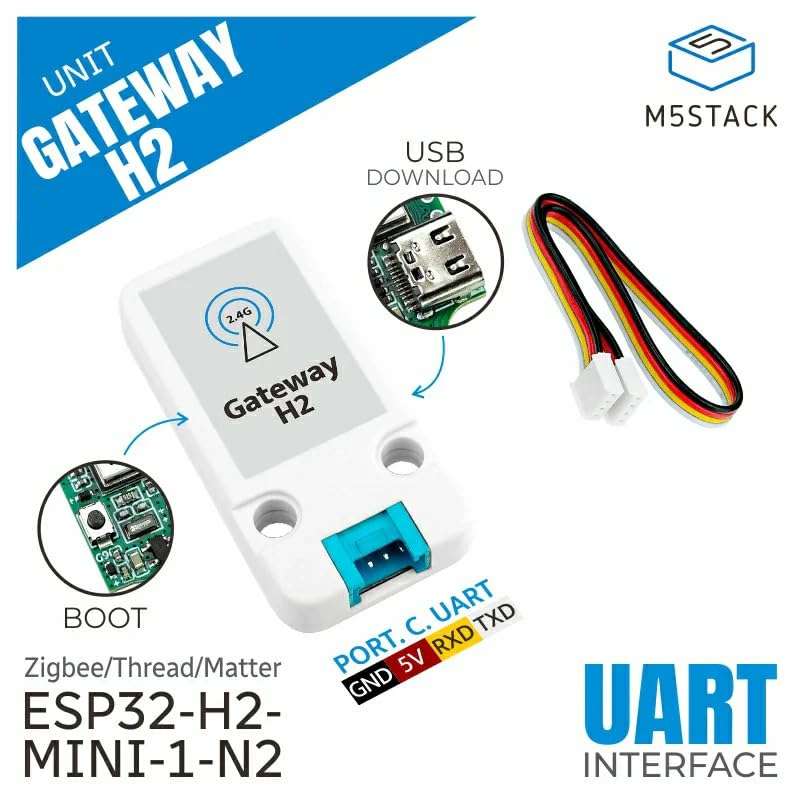

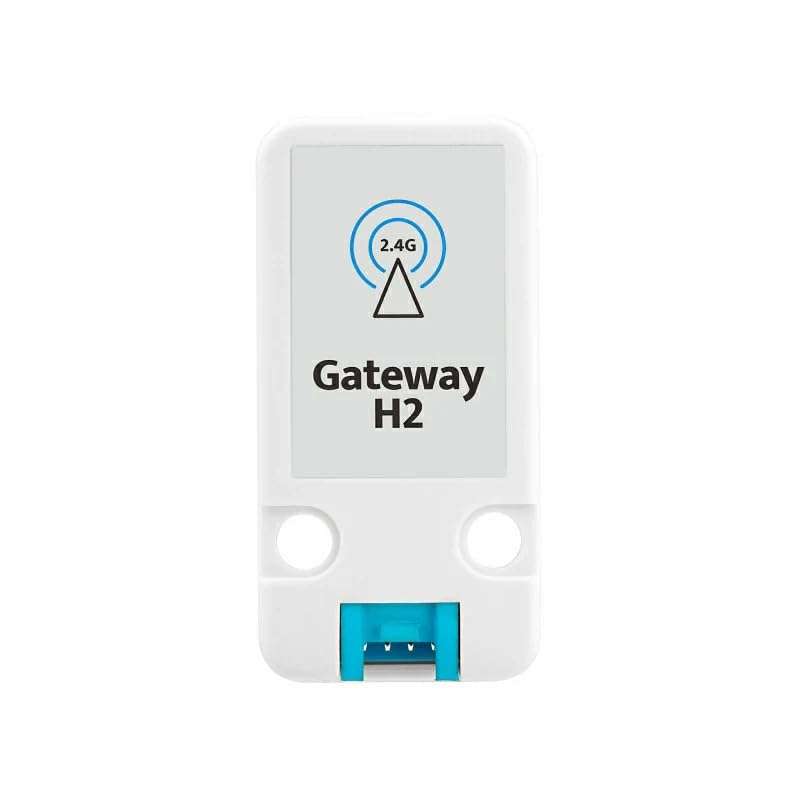

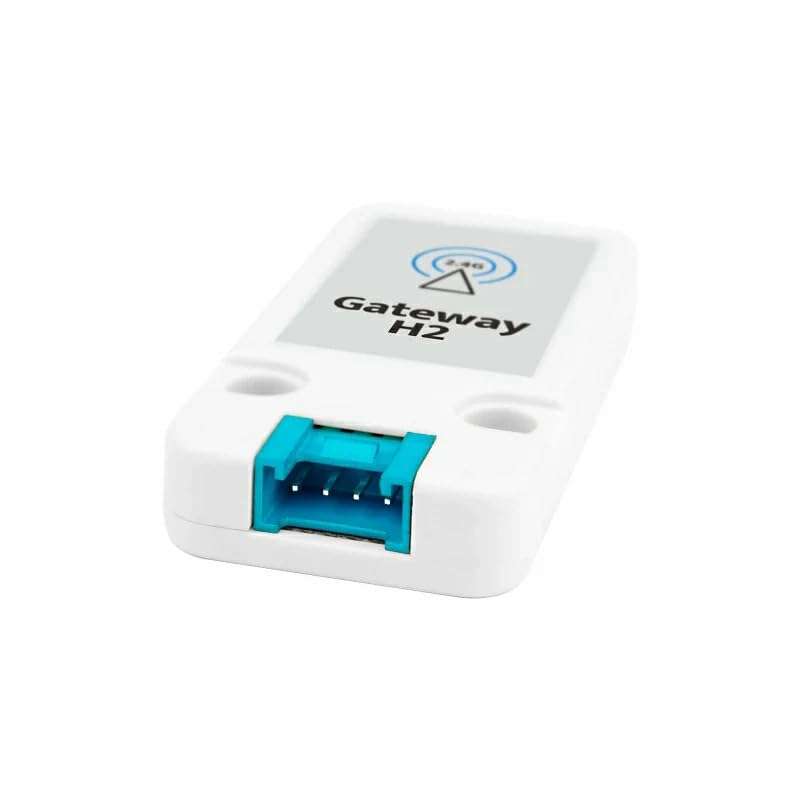

M5Stack ESP32-H2 Thread/Zigbee Gateway Unit, Grove Port C, ZigBee, Thread, and Matter, Integrated IEEE 802.15.4 Technology, UART Communication, Supports Hardware encryption functiona
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

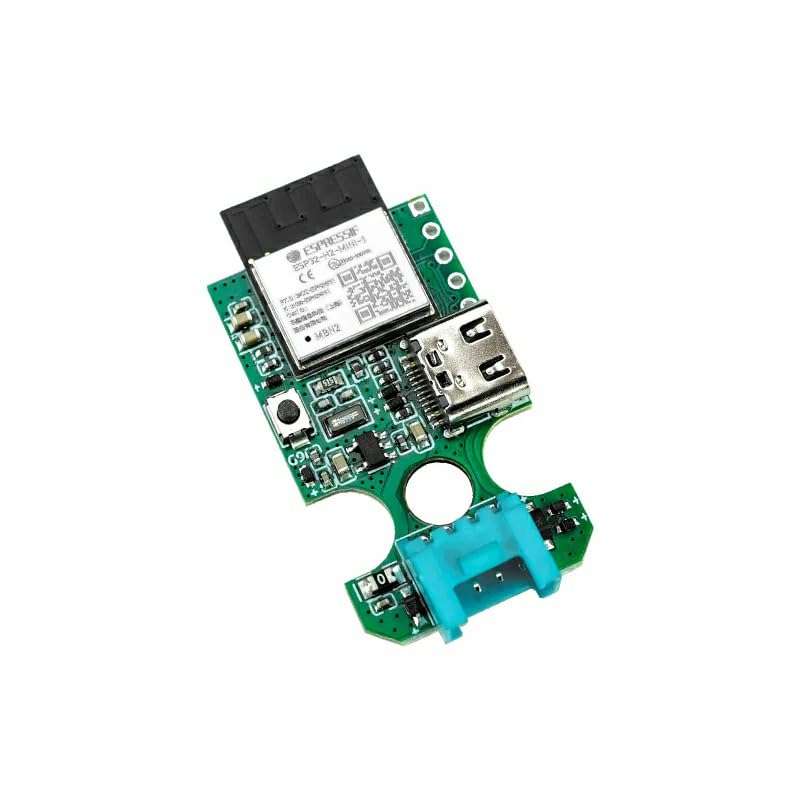

•ESP32-H2 CHIP: Built on ESP32-H2-MINI-1-N2 with RISC-V 32-bit single-core processor clocked up to 96 MHz, featuring 2MB flash memory and onboard PCB antenna for reliable wireless connectivity.
•MULTI-PROTOCOL SUPPORT: Integrates IEEE 802.15.4 technology supporting ZigBee 3.0, Thread 1.3, and Matter protocols for seamless cross-ecosystem IoT device interconnection and smart home applications.
•LOW POWER DESIGN: Ultra-efficient power consumption with operating current of 26.08mA, standby current of 16.16mA, and sleep current as low as 92.7uA at DC-5V for extended battery-powered operation.
•HARDWARE ENCRYPTION: Equipped with built-in hardware encryption engine to ensure high-security data transmission for IoT applications requiring enhanced protection and secure communications.
•COMPACT AND VERSATILE: Measures 1.89 x 0.94 x 0.31 inches and weighs only 0.24 ounces, features UART communication via Grove Port C interface, compatible with Arduino IDE and ESP-IDF development platforms.
