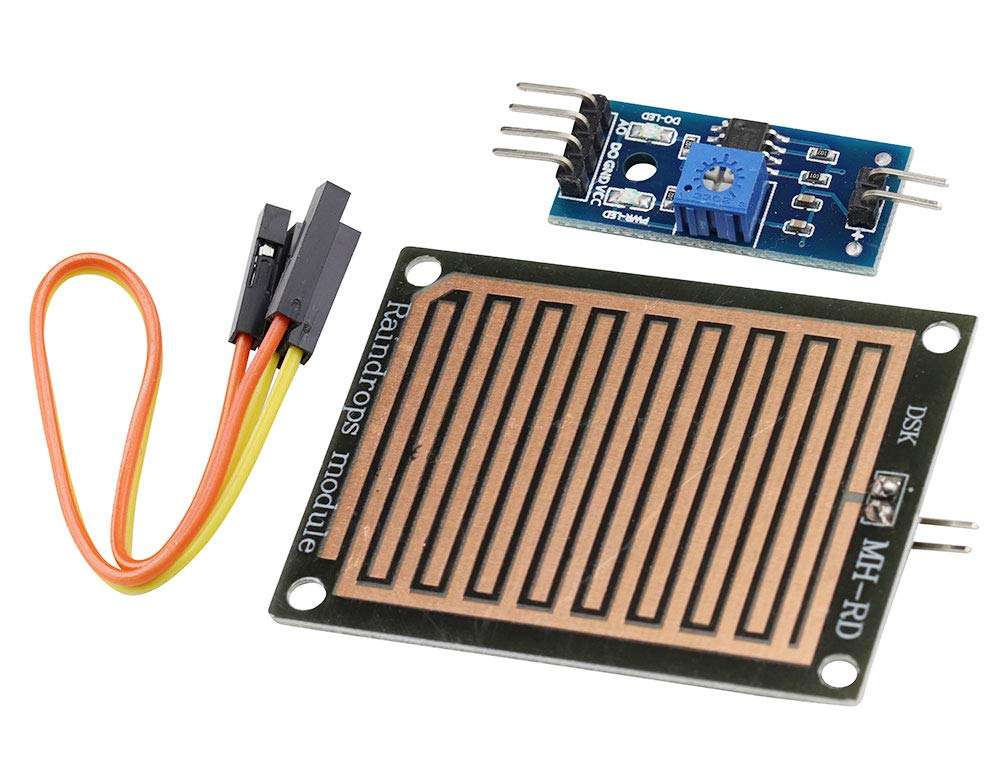

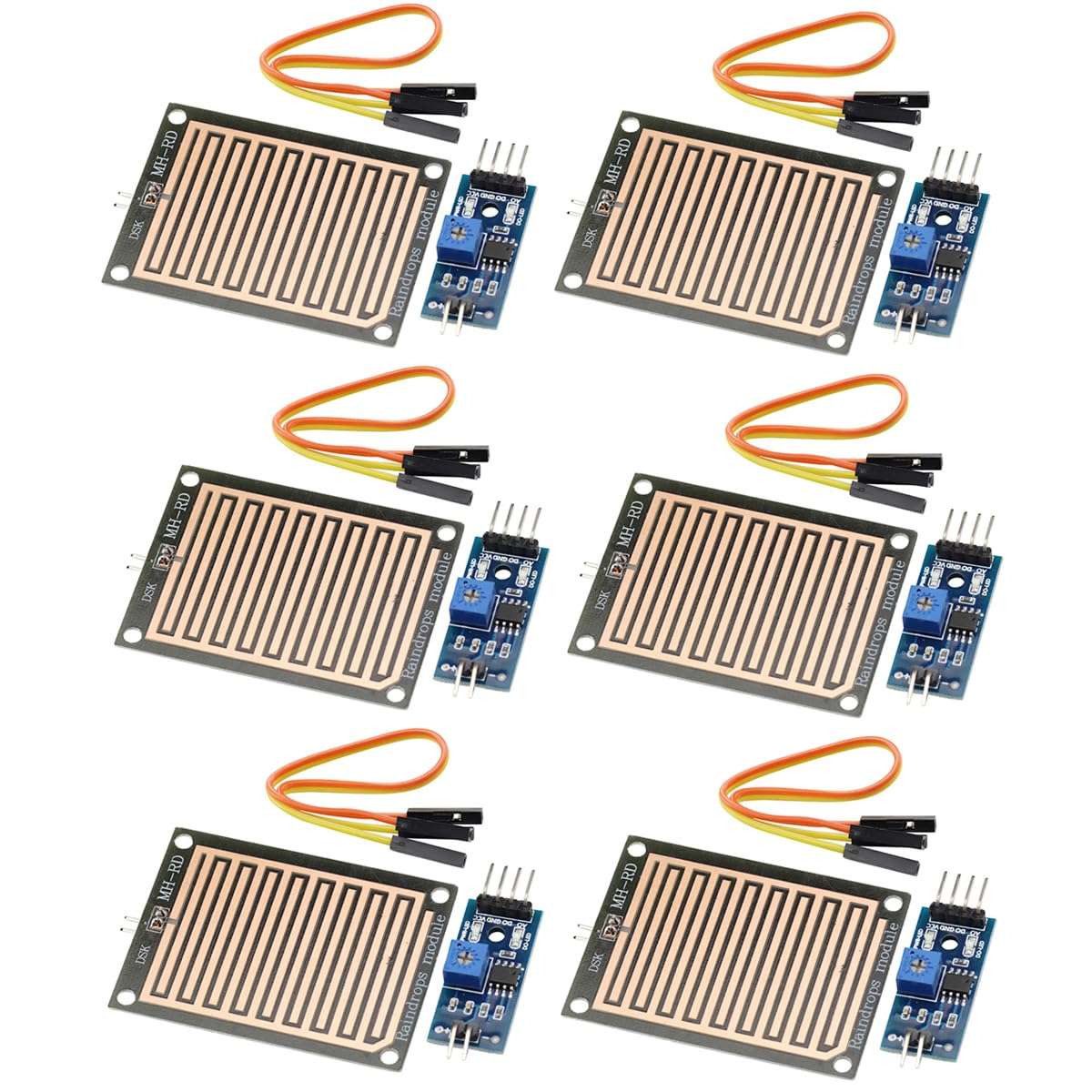

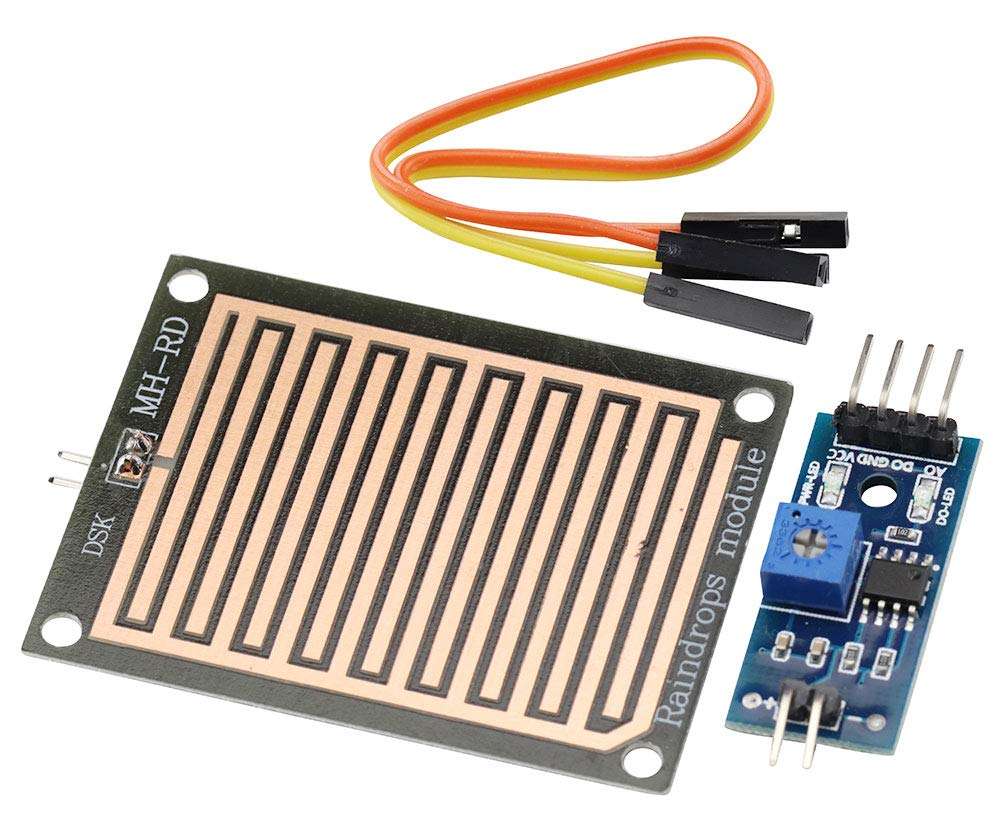

VKLSVAN 6PCS Rain Water Sensor Rainwater Module Rain Drops Detection Moisture Monitor Sensor 3.3V-5V LM393 Weather Humidity Module for Arduino
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•The raindrop sensor module adjusts the sensitivity through a potentiometer, and the working voltage is 3.3V-5V, ensuring adaptability to various power supplies; LM393 uses a wide voltage comparator, with clean signals, good waveform, strong driving capabilities, and greater than 15mA.
•Easy to use: Connect a 5V power supply, the power light is on, there is no water drop on the sensor board, the DO output is high, the switch light is off, drop a drop of water, the DO output is low, the switch indicator light is on, wipe off the water drop, and restore again, and output a high level state.
•The sensor uses high-quality FR-04 double-head material, with nickel-plated surface treatment, which has superior performance such as anti-oxidation, conductivity, and life, and is equipped with a potentiometer sensitivity adjustment; it is equipped with a fixing bolt hole for easy installation.
•Dual output format: Provides digital switch output (0 and 1) for easy integration into digital circuits, as well as analog AO voltage output for more accurate measurement and application.
•The raindrop board and the control board are separate, which is convenient for lead-in, TTL level output, and the effective signal of TTL output is low level. The driving capacity is about 100MA, which can directly drive relays, buzzers, small fans, etc.
