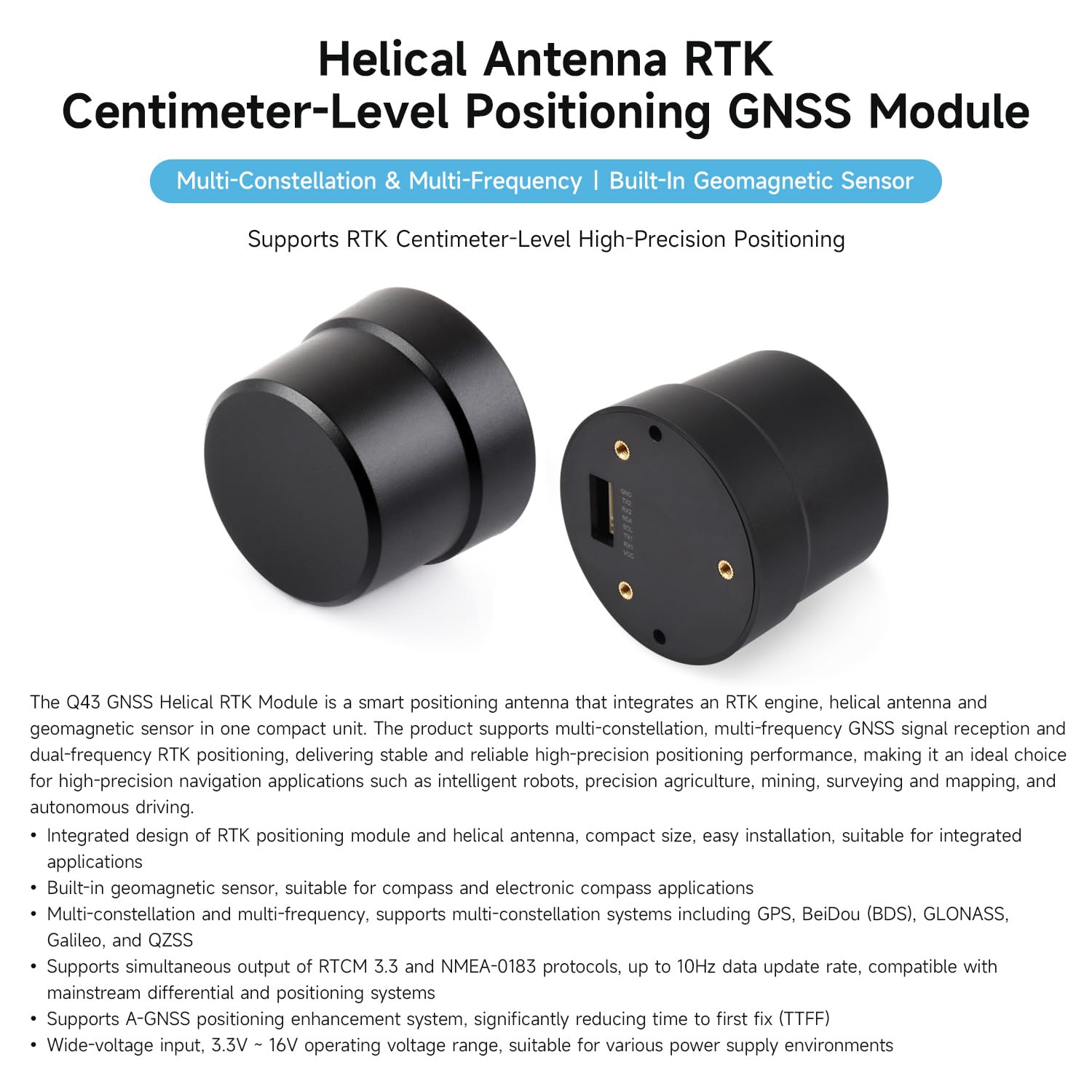

Waveshare Q43 Multi-Constellation Multi-Frequency Helical Antenna, RTK Centimeter-Level High-Precision GNSS Module with Built-in Geomagnetic Sensor and Simultaneous Reception
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Integrated design of RTK positioning module and helical antenna, compact size, easy installation, suitable for integrated applications. Built-in geomagnetic sensor, suitable for compass and electronic compass applications
•Multi-constellation and multi-frequency, supports multi-constellation systems including GPS, BeiDou (BDS), GLONASS, Galileo, and QZSS
•Supports simultaneous output of RTCM 3.3 and NMEA-0183 protocols, up to 10Hz data update rate, compatible with mainstream differential and positioning systems
•Supports A-GNSS positioning enhancement system, significantly reducing time to first fix (TTFF)
•Wide-voltage input, 3.3V ~ 16V operating voltage range, suitable for various power supply environments
