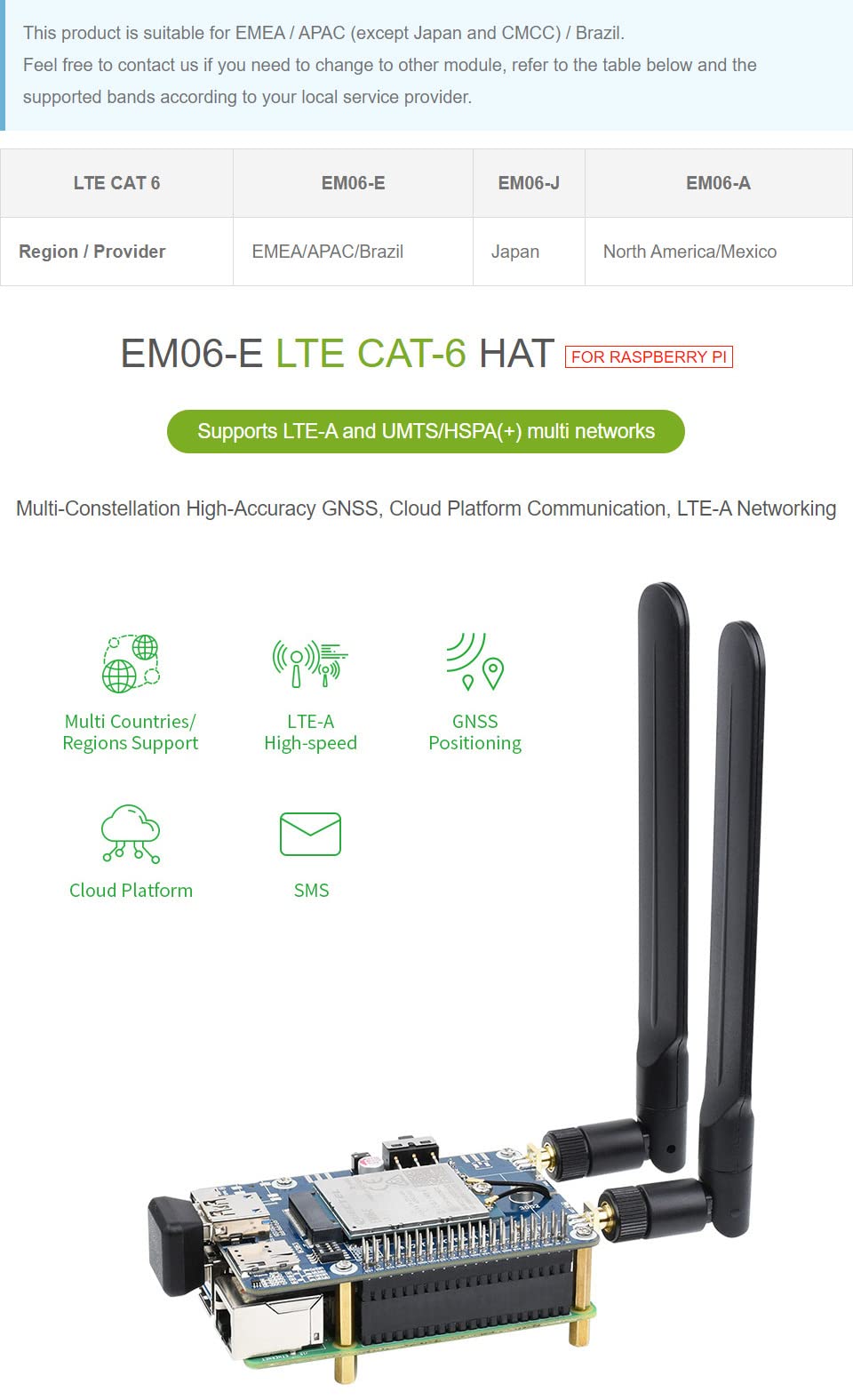

waveshare EM06-E LTE Cat-6 HAT for Raspberry Pi Dual Antennas LTE-A Multi Regions Multi Band GNSS
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

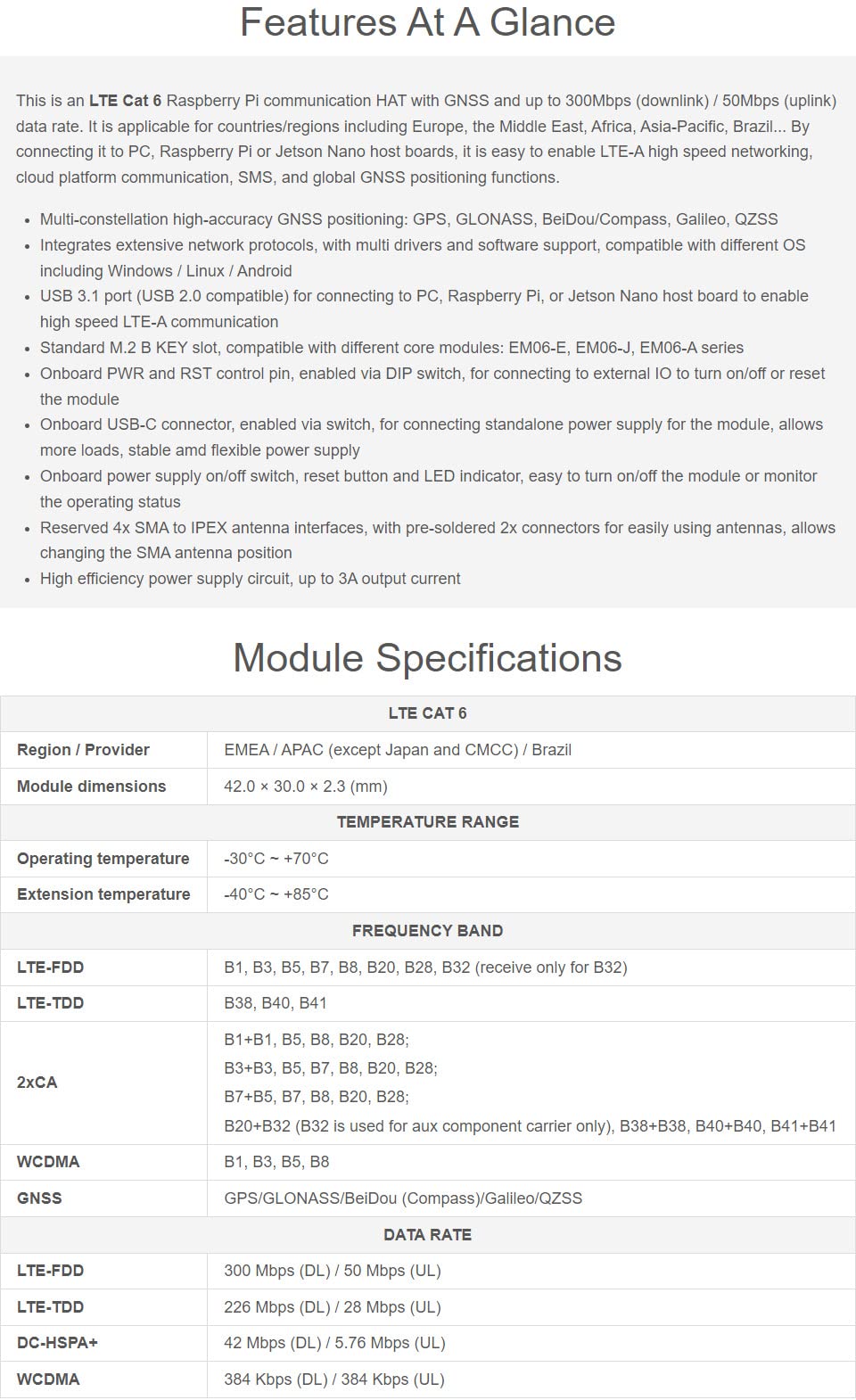

•Multi-constellation high-accuracy GNSS positioning: GPS, GLONASS, BeiDou/Compass, Galileo, QZSS. Integrates extensive network protocols, with multi drivers and software support, compatible with different OS including Windows / Linux / Android

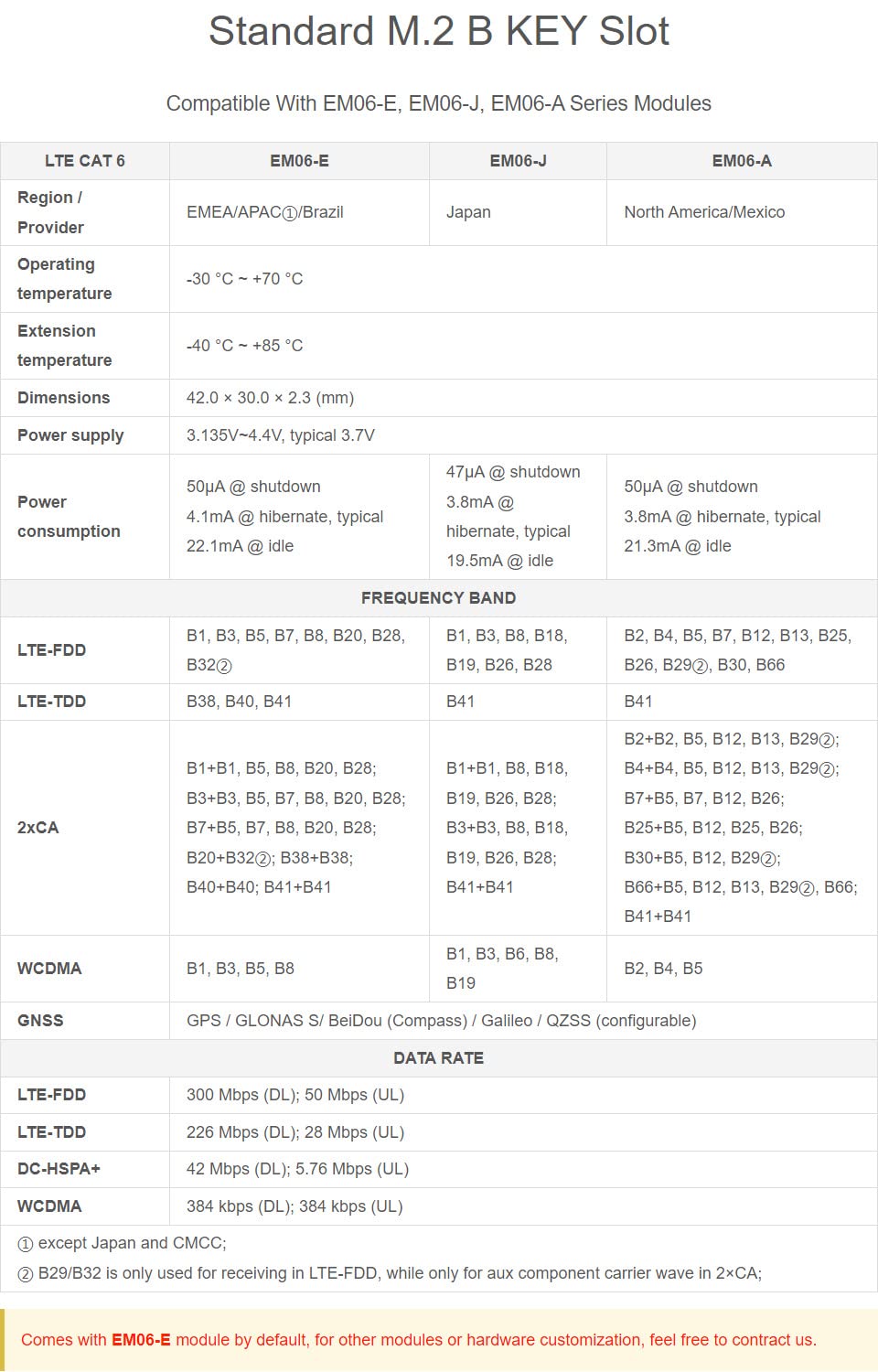

•USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed LTE-A communication. Standard M.2 B KEY slot, compatible with different core modules: EM06-E, EM06-J, EM06-A series
•Onboard PWR and RST control pin, enabled via DIP switch, for connecting to external IO to turn on/off or reset the module. Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
•Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
•Reserved 4x SMA to IPEX antenna interfaces, with pre-soldered 2x connectors for easily using antennas, allows changing the SMA antenna position. High efficiency power supply circuit, up to 3A output current
