youyeetoo K1 x86 Single Board Computer - Intel N100 3.4GHz CPU | Shop The World
From USA
NewWayPonDEV
youyeetoo K1 x86 Single Board Computer - Intel N100 3.4GHz CPU, 64bit Windows 11 Linux Mini PC, MAX 16GB LPDDR5 RAM 256GB eMMC, M.2 2280 NVMe or SATA SSD for AI IoT Edge (SBC Kit,8+128GB)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•[Alder Lake-N N100 X86 CPU Processor] youyeetoo K1 x86 Single Board Computer uses the latest Alder Lake-N N100 CPU(4 cores, 4 threads / 3.4 GHz Turbo Boost), base speed of 750Mhz with a burst speed up to 3.4GHz. Ideal for AI IoT Edge computing, industrial control device, industrial Gateway, Embedded Development, office work and home entertainment device and so on, which is more convenient than traditional sbc.

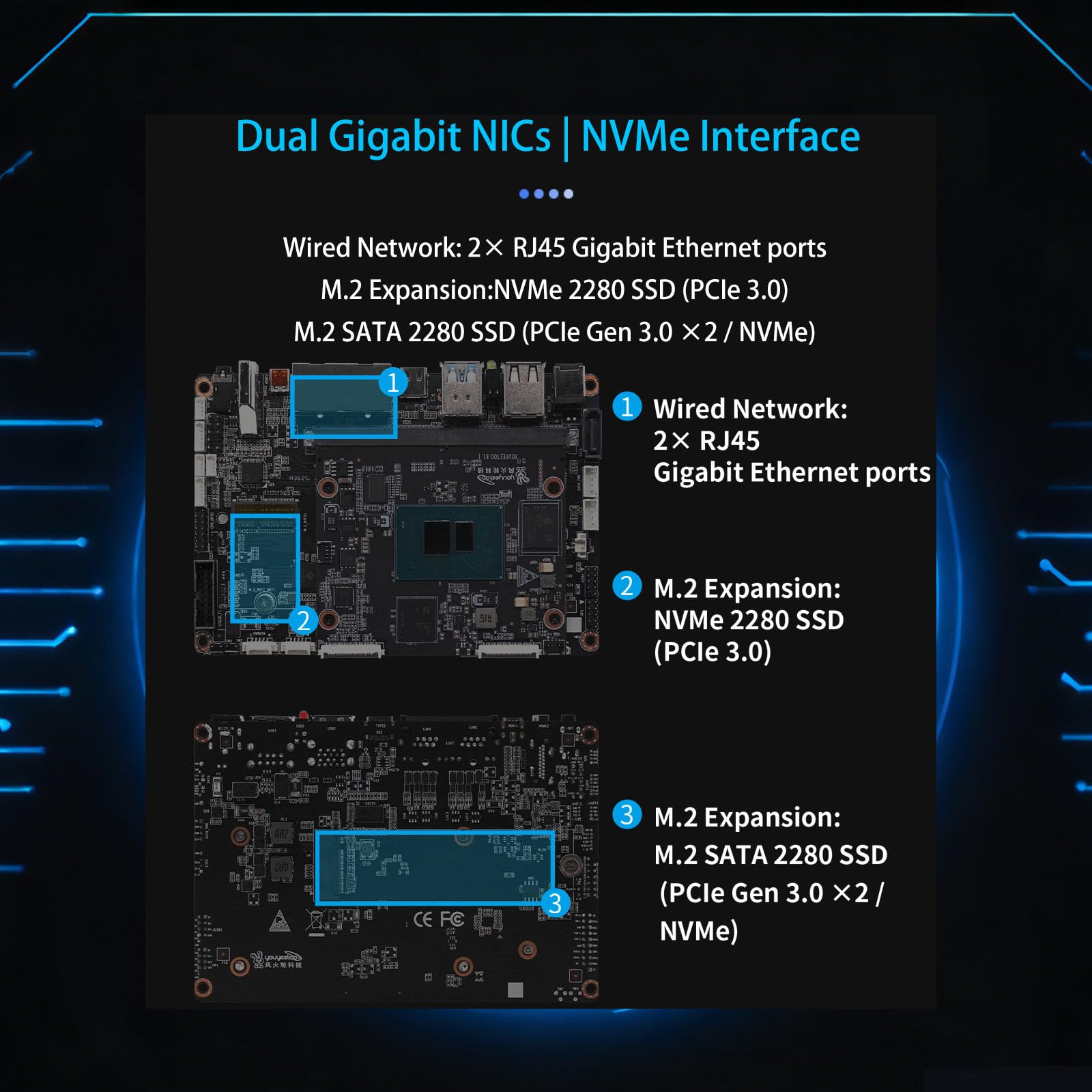

•[Large Capacity Memory & Storage] youyeetoo K1 x86 Single Board Computer SBC is prebuilt with 4GB/8GB/16GB LPDDR5 RAM, 0GB/64GB/128GB/256GB eMMC. You can optional external PCIe 3.0 M.2 2280 NVMe SSD or SATA3.0 SSD Hard Drive. Youyeetoo K1 x86 sbc boots up in seconds, work on multiple browser tabs, software applications and quickly transfers files.

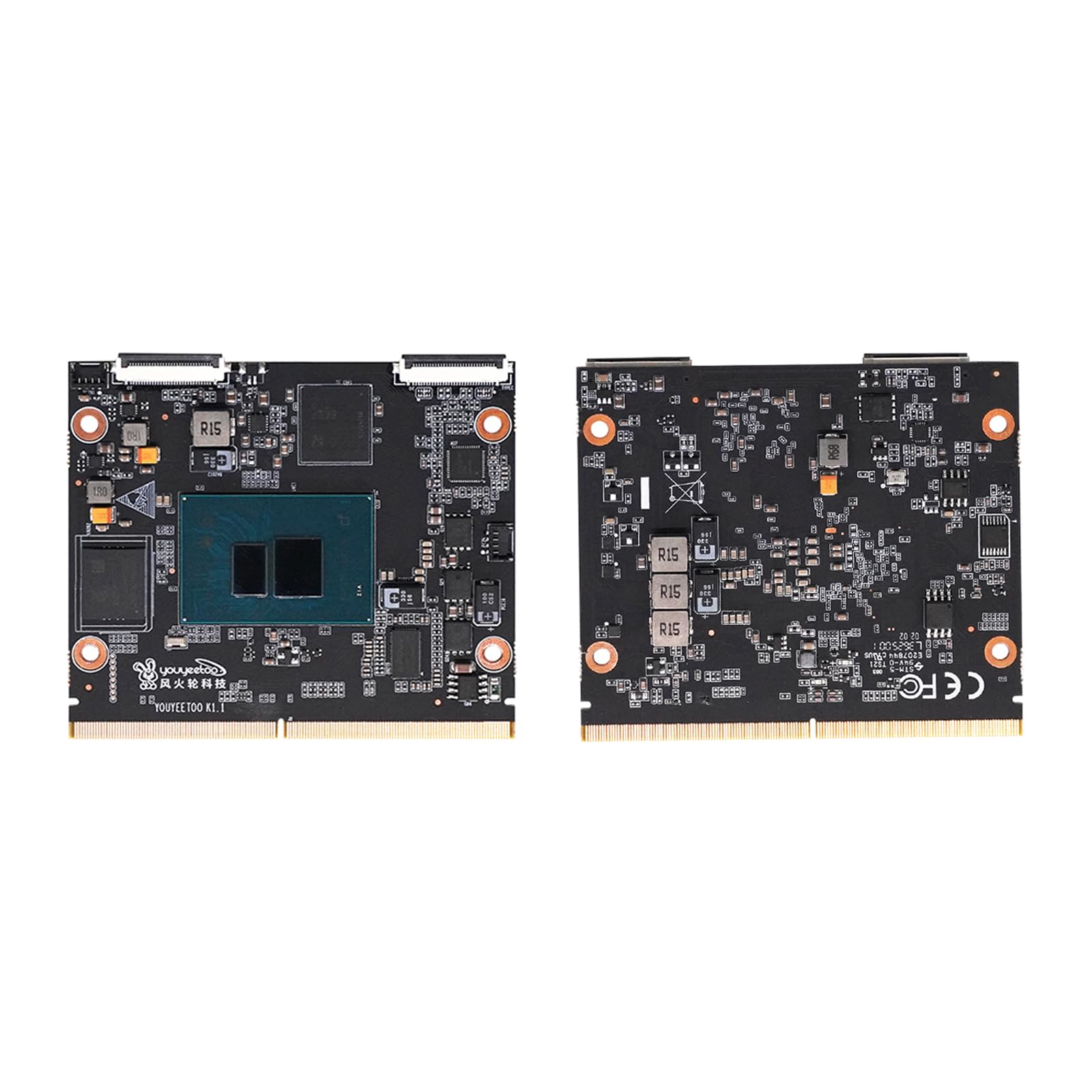

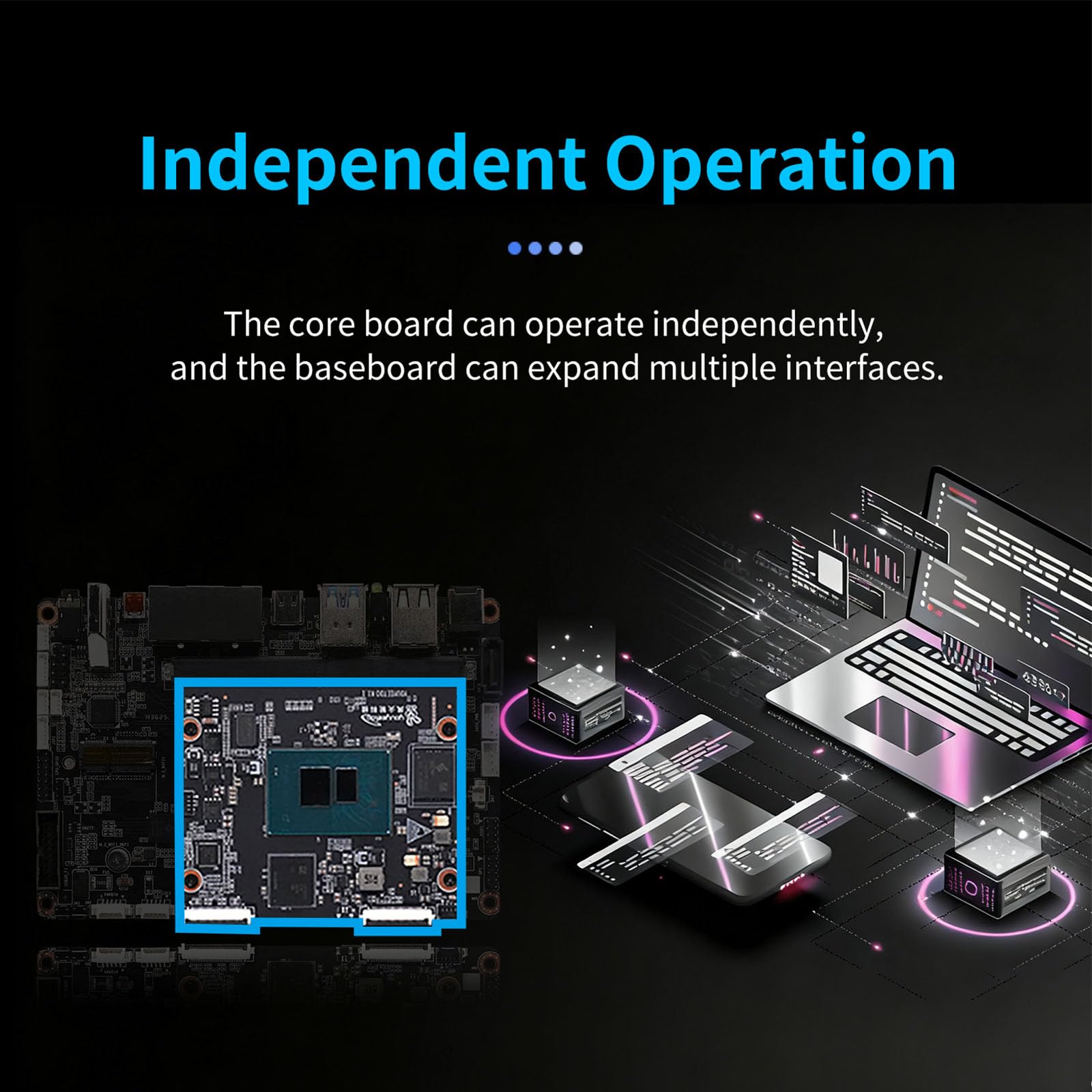

•[Core Board Independent Operation] youyeetoo K1 x86 Alder Lake-N N100 CPU Core Board measures only 82×71 mm(card size), integrating power, display, and communication interfaces, it can operate independently without a baseboard. It can connect directly to peripherals via an adapter board, or achieve dual network ports, multiple USB ports, M.2 SSD expansion, and other functions through an extended baseboard, meeting different size and functional requirements.

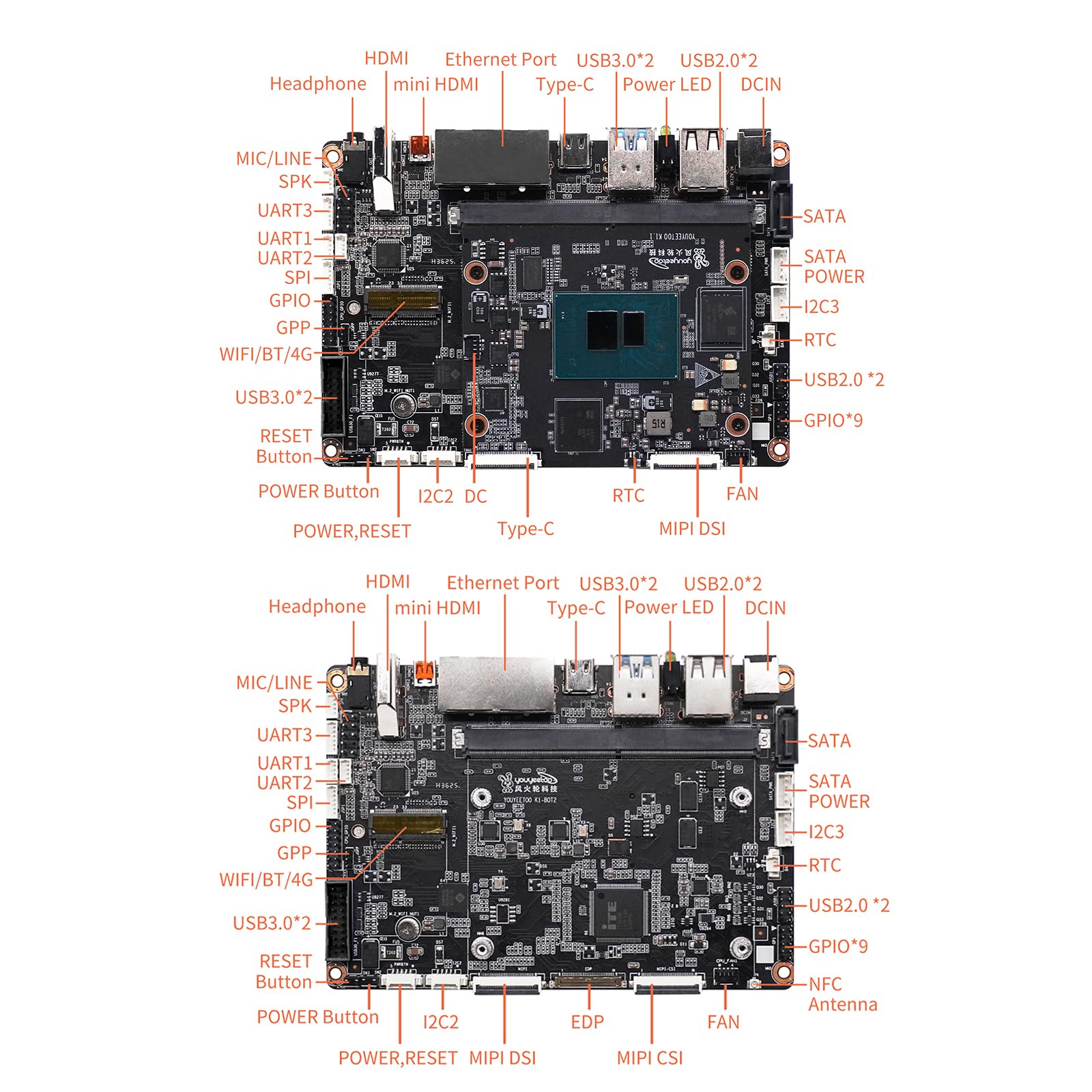

•[Rich Interface Expand] youyeetoo K1 x86 Windows 10 11 Single Board Computer is equipped with USB 3.0*2, USB2.0*2, HDMI(4K 60Hz)×2, MIPl/eDP multi-display x1. 3.5mm Audio Jack. Supports WiFi 6 & BT 5.2, 2x Gigabit Ethernet RJ45 network connectivity. This Mini PC supports multiple device connection and can be used with servers, monitoring equipment, office equipment, displays, projectors, televisions, etc.
•[Industrial-Grade Expansion Capabilities] youyeetoo K1 x86 single board computer features extensive interface options and powerful industrial-grade expansion capabilities. In addition, it offers 12 types of IoT industrial interfaces such as GPIO, I2C, SPI, MIPI,USB SPK, PWM and UART, which can directly connect to and control various hardware devices like lidar sensors and servos.
•[Built-in NFC for convenient interaction] youyeetoo K1 x86 Windows 10 11 Linux Single Board Computer Mini PC integrates an NFC chip, supporting “phone tap” to configure WiFi6 & Bluetooth 5.2, read device logs, and perform quick debugging and maintenance in screenless scenarios, improving the operational efficiency of industrial equipment. Also support All-in-one Type-C Interface.
•[4K Multi-screen Independent Display] youyeetoo K1 x86 windows 11 development board is equipped with upgraded UHD Graphics (max 750MHz) GPU, supports 4K video playback and AV1 decoding, connect the pc with a projector as a home theatre, enjoy a variety of entertainments. Two HDMI 2.0 ports allows you to multi-task efficiently on dual 4K 60Hz displays. It can compatible with a 7-inch MIPI touch screen and 11.3-inch eDP screen, and can independently drive three screens.
•[Wiki & Document] SDK Document & Getting Started:"wiki.youyeetoo.com/en/youyeetooK1"'; All after-sales questions, please click "WayPonDEV" store and ask the question. Or please leave the message to " wpd#youyeetoo&com (#--->@,&--->.)".
