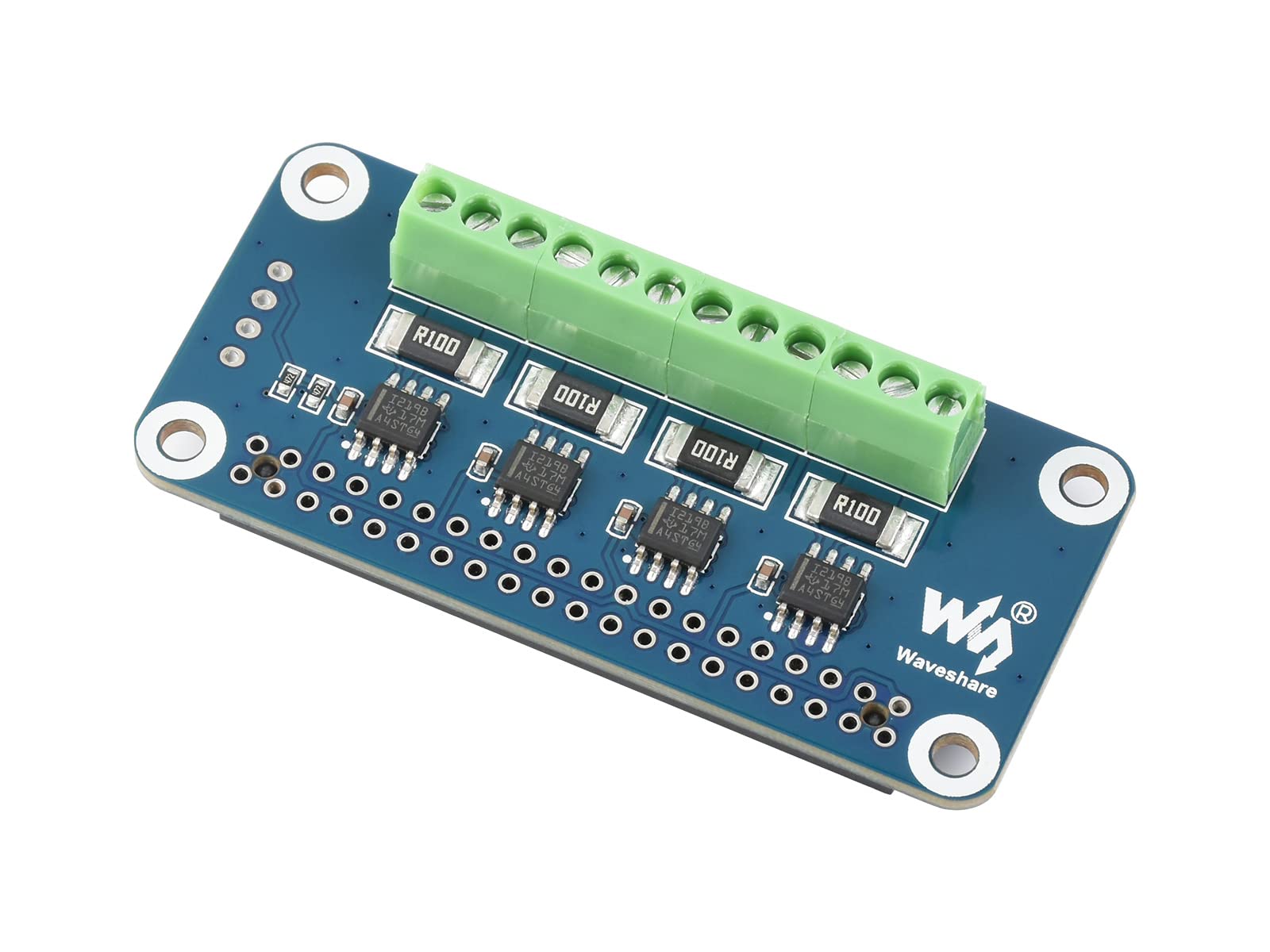

waveshare 4-ch Current/Voltage/Power Monitor HAT for Raspberry Pi with I2C/SMBus Interface
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

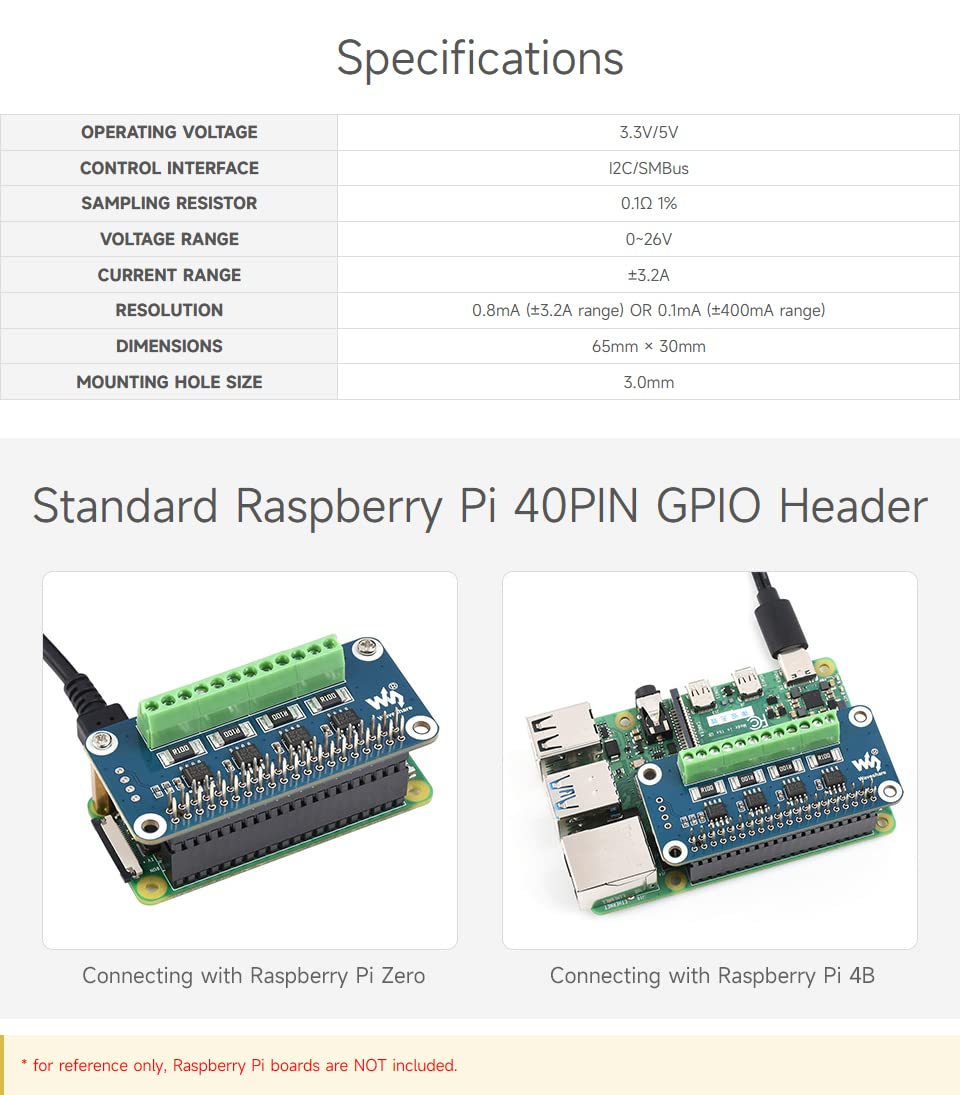

•Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards. 4-ch monitoring, via I2C/SMBus interface
•Onboard 0.1Ω 1％ sampling resistor, allows measuring bi-directional current up to 3.2A
•Embedded 12-bit ADC, supports multiple successive converting, 0~26V voltage measuring range
•Directly calculate and output measured power value through additional multiply register. I2C control pins for connecting with other host boards
•Comes with development resources and manual (examples for Raspberry Pi/STM32)
