UCTRONICS High Precision Handheld LC Inductor Capacitor Tester | Shop The World
From USA
NewUCTRONICS
UCTRONICS High Precision Handheld LC Inductor Capacitor Tester, Inductive Capacitance Meter Kit, 1pF-100mF, 1uH-100H
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Power Supply: The meter can be powered by included Φ5 DC power supply cable and mini USB cable. You can also install 4×AA batteries. Each way makes the meter work. Note: the AA battery is not included.
•Measuring Range: Capacitance 0.01pF-100mF, inductance 0.001uH-100H, frequency 500KHz/500Hz-50KHz.

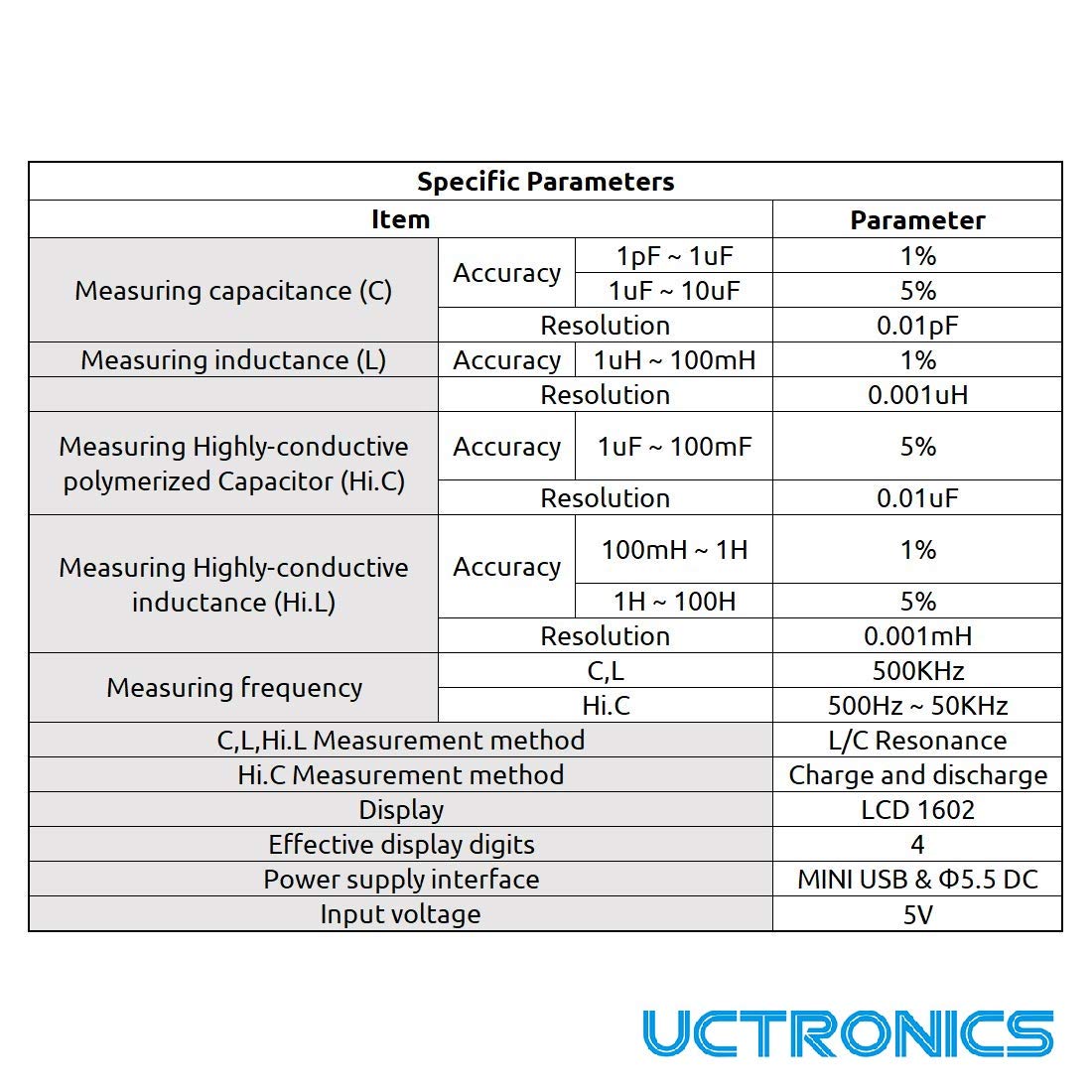

•High Precision: Accuracy 1% of capacitance range 1pF~1uF, 5% of range 1uF~100mF; 1% of inductance range 1uH~1H, 5% of range 1H~100H
•Easy to Calibrate: just press the button "ZERO" to calibrate, open circuit calibration in capacitance measuring mode, short circuit calibration in inductance measuring mode.
•Applications: This portable and handheld tester 1×handheld LC meter, 1 pair of alligator clip test leads, 1×LCR Kelvin alligator clip test lead, 1×mini USB cable, 1×manual
