General

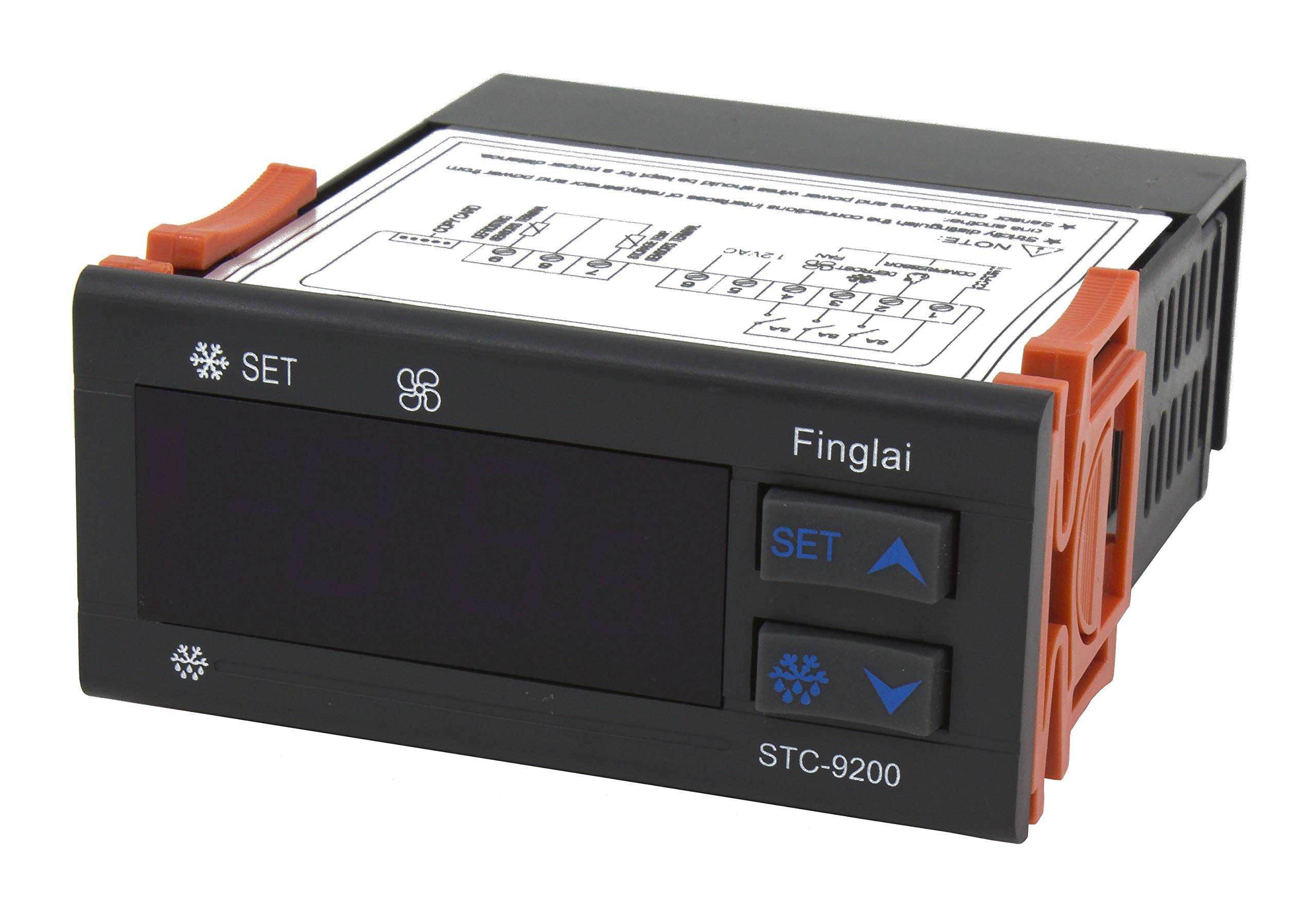

Model number: STC-9200
Measure range: -50 to 90 ℃
Setting range: -50 to 50 ℃
Resolution: 0.1 ℃
Accuracy: ±1 ℃ (-40 to 50 ℃), ±2 ℃ (50 to 70 ℃)
Supply voltage: 110Vac, 50/60Hz
Power consumption: Less than 5W
Output types: Three mechanical relays
Input types: Two NTC
Panel size: 75x34.5 mm
External dimensions: 75x34.5x85 mm
Perforation dimensions: 71| 1||0|x29| 1||0| mm
Control method: ON/OFF Control
Setting method: Touch switch

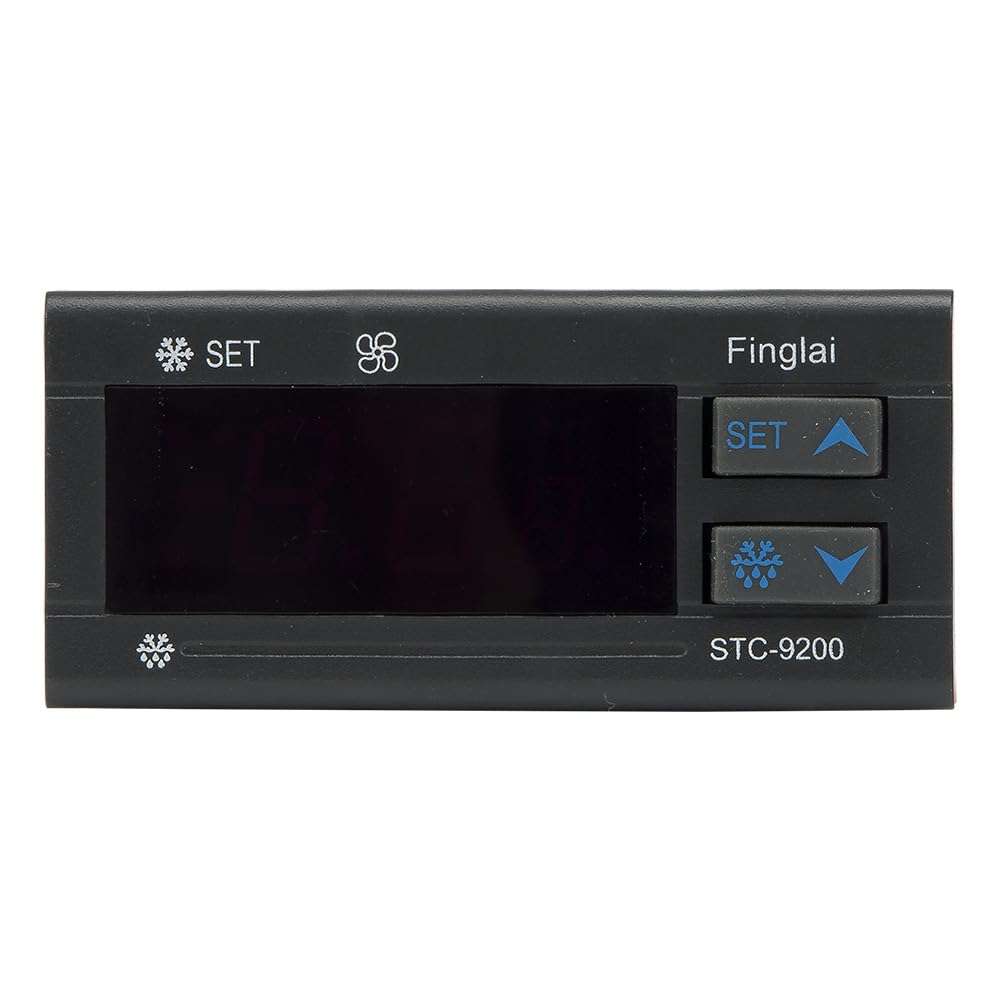

Indication method: Three-digit LED + Minus digit + Status indicator light (set; refrigeration; defrost; fan)
Front panel IP Rating: IP65
Operating temperature: 0 to 55 ℃ (32 to 131 ℉)
Operating humidity: 20% to 85% RH, non-condensing
Storage temperature: -25 to 75 ℃ (-13 to 167 ℉)
Alias name: STC-9200 freezer temperature controller, defrost thermostat, freezer thermostat

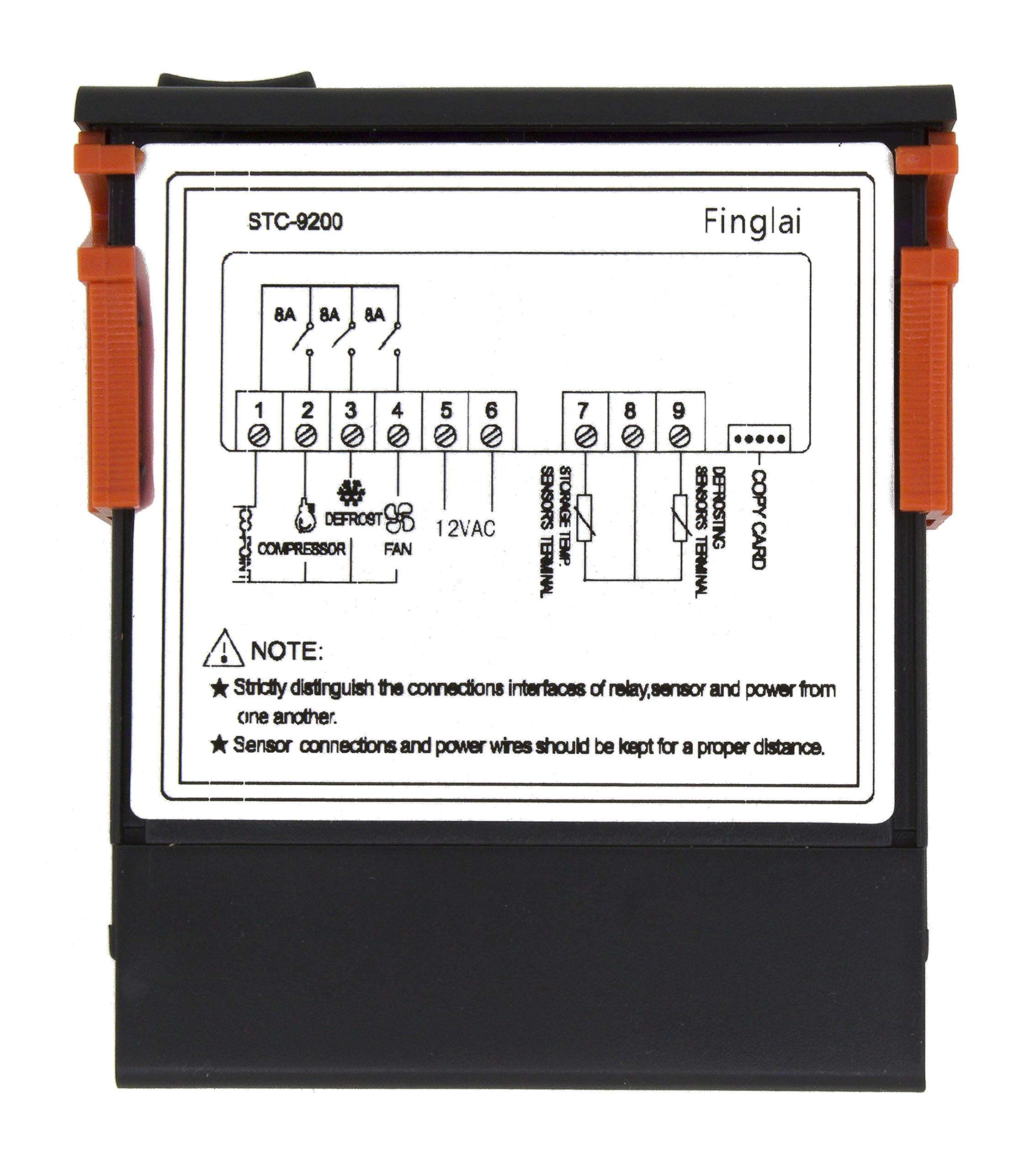

Output type and description
Electromagnetic relay for compressor: Contact rating: 8A at 220Vac
Electromagnetic relay for fan: Contact rating: 8A at 220Vac
Electromagnetic relay for defrosting: Contact rating: 8A at 220Vac
