ERH India 1 Pc W1209 Digital Temperature Controller Thermostat Thermocouple Sensor Module for DIY Electronic and Robotic Projects Kit and Incubator Machine etc
•The Temperature Control Range Is 50-100 Degree, Control Accuracy Is 0.1 Degree It Is Widely Used In Machine Case Temperature Control, Poultry Incubation, Air Conditioning System, Temperature Protection And Other Occasions.
•Current temperature will be displayed on the module in degree Celsius by default. When switched to a different mode, inactivity for approximately 5 seconds would lead to restoring the value of the module to the default temperature display.

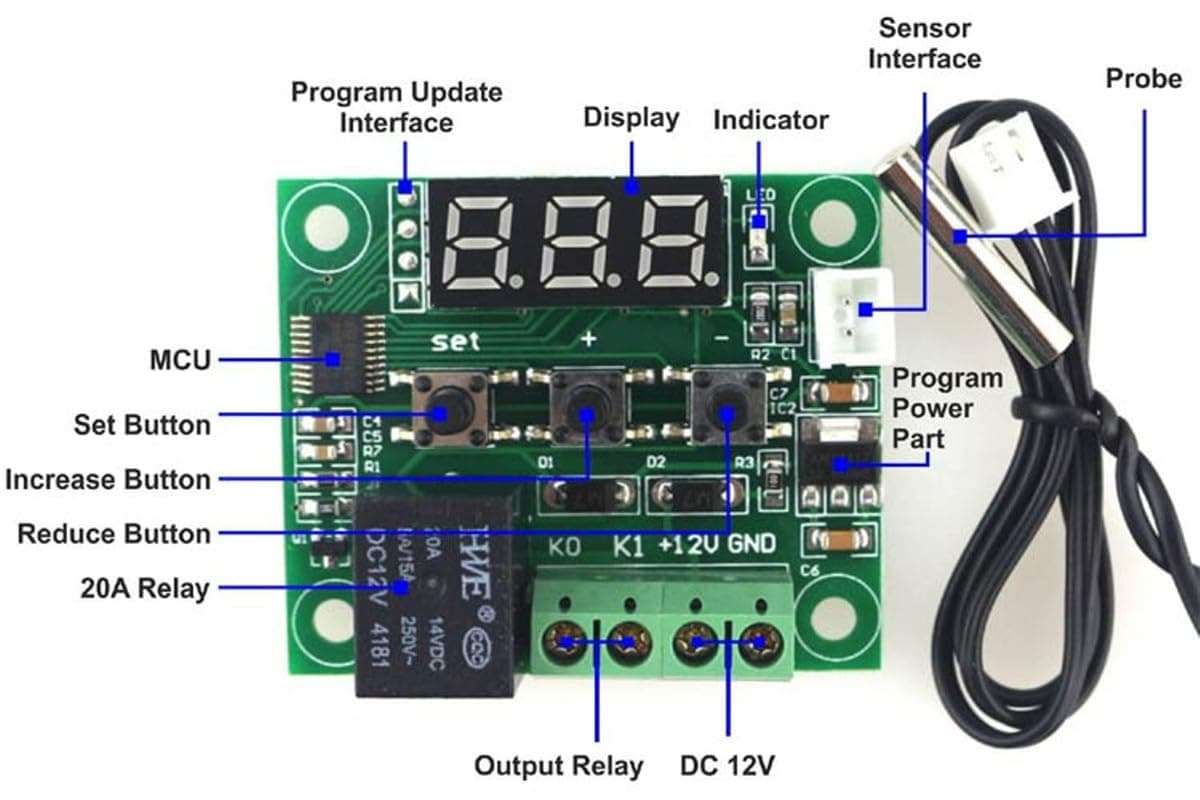

•The W1209 digital temperature controller thermostat module is a small, standalone device that allows you to control the temperature of a system or process using a digital interface.
•Trigger Temperature: Press “SET” button on the module and current temperature will be displayed on the screen. Using “+” and “-“ button, one can set the temperature in 0.1 degrees (Celsius) increments. No activity for 2 seconds will result in setting and storing the trigger temperature and then the screen will display the current temperature.
•It typically includes a temperature sensor, a control algorithm, and an output mechanism to control the temperature. The W1209 module may have inputs for setting the temperature set point and control parameters, as well as outputs for controlling devices such as heating elements or cooling fans.
