Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

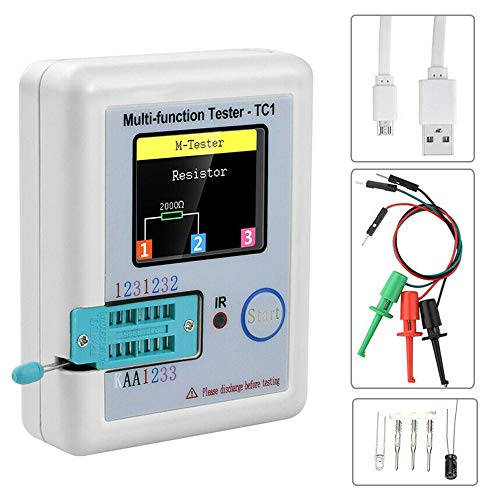

•For detecting NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery, resistor and capacitor and other components, etc.

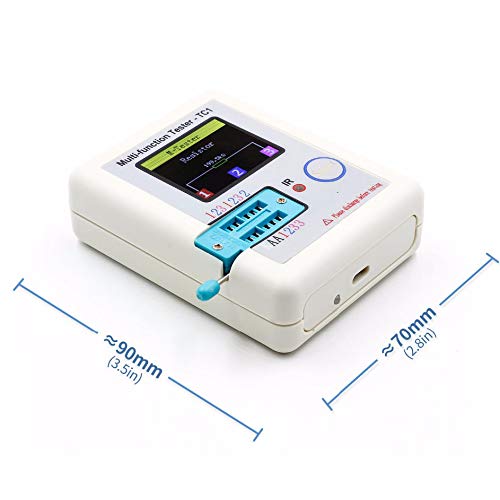

•Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly. ( Use 12864 liquid crystal display with green backlight).
•After detection, align the infrared remote control with the "IR" light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form.
•Measurement results represent by TFT graphic display(160x128). Support Chinese and English.
•One key operation, Auto Power Off(Timeout Settable). Can also press the multi-functional button to close the detector.
From USA
