Specification:

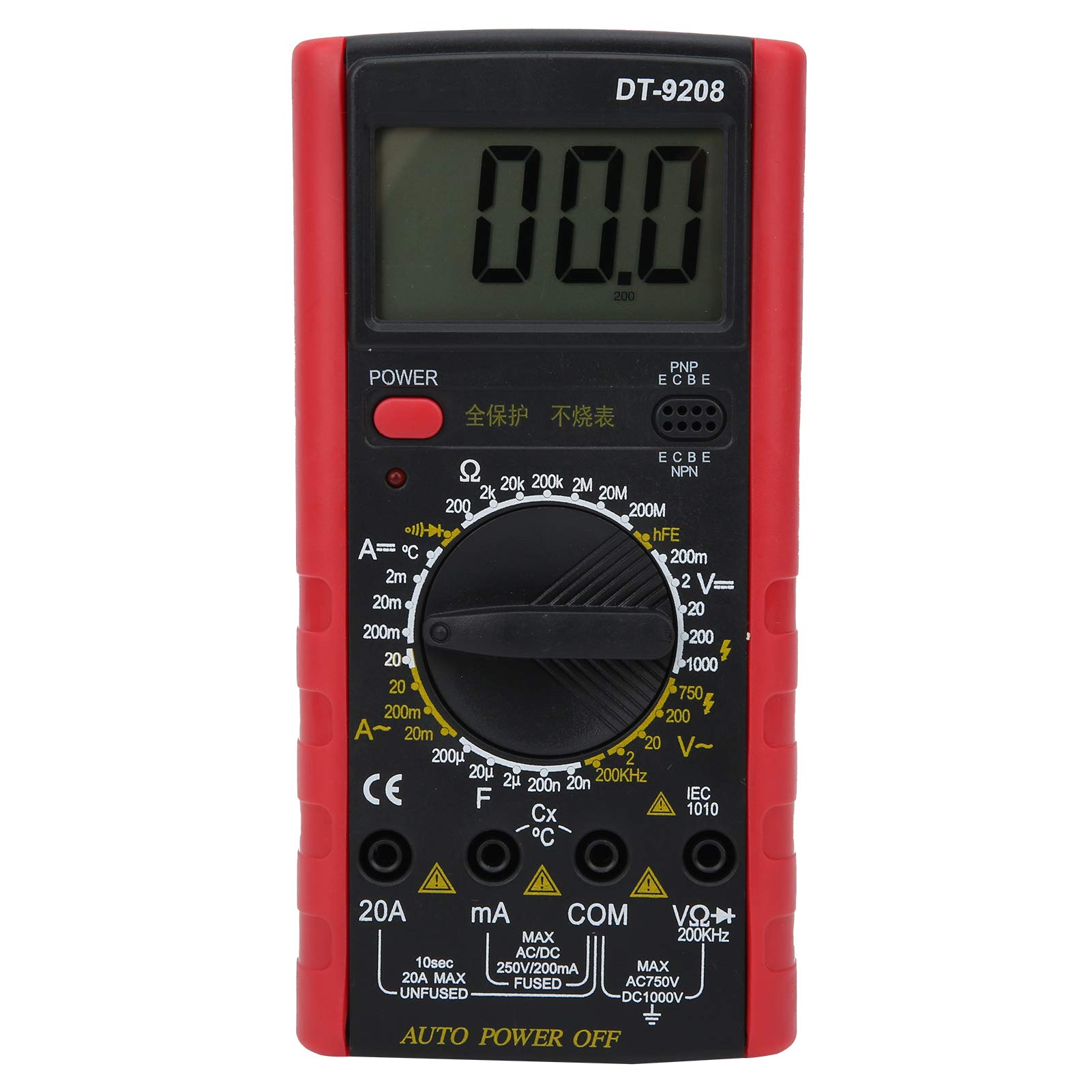

Item Type: Multimeter
Material: ABS
Color: As shown in the picture
Weight: Approx.352g/12.4oz

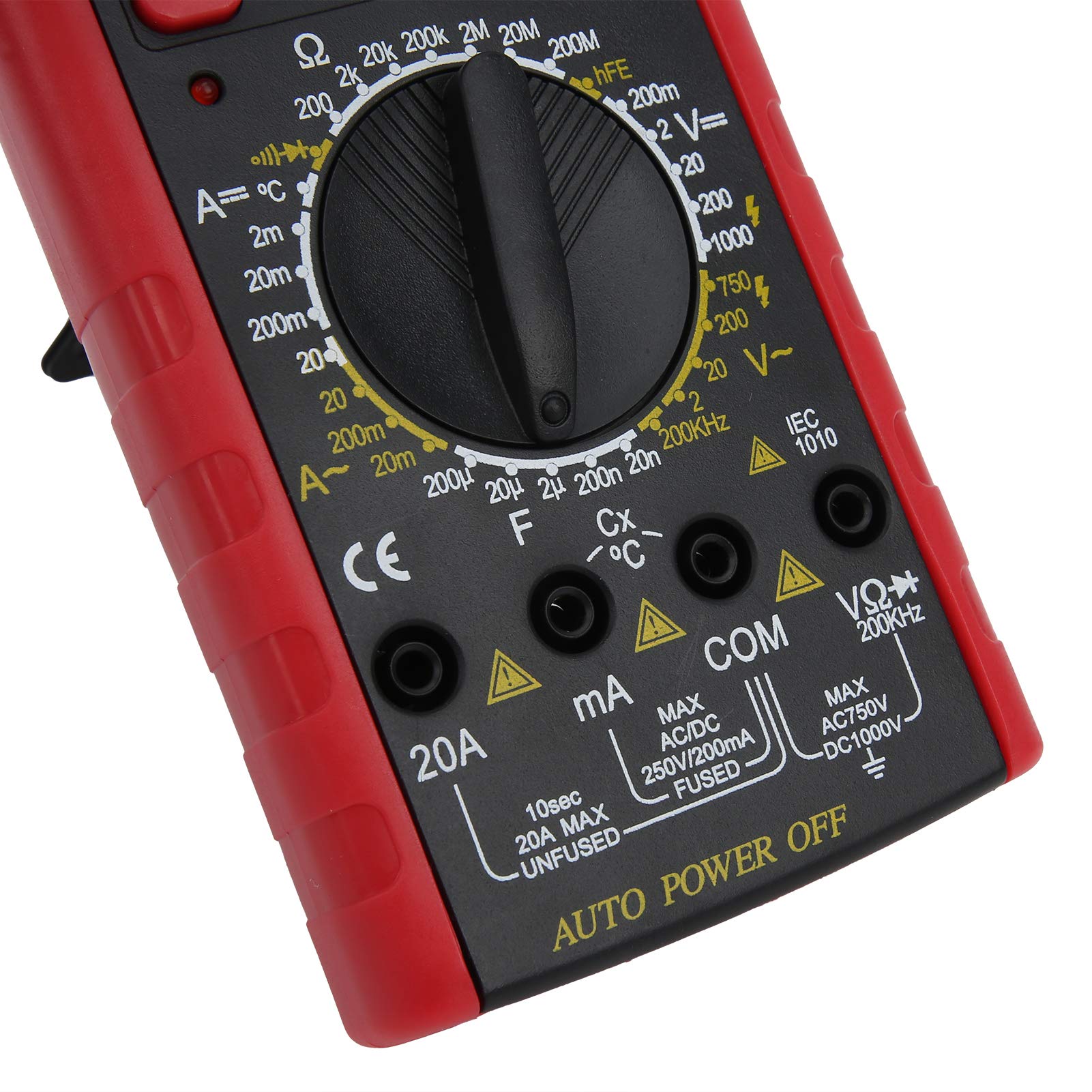

Function selection has 32 ranges
LCD Display: character height 25mm / 0.98in
Over-range display \"1\"
Maximum display value 1999 ( three and a half digits)
Temperature Range:
Working Temperature: 0℃~40℃ (32°F~104°F)
Storage Temperature: -10℃~50℃ (14°F~122°F)
Power Supply: 6F22-9V battery (Not Included)
Technical parameters Range Accuracy Resolution
DC Voltage 200mV ±(0.5%+2) 100µV
2V 1mV
20V 10mV
200V 100mV
1000V ±(1.2%+5) 1V
AC Voltage 200mV ±(1.2%+2) 100µV
2V ±(0.8%+3) 1mV
20V 10mV
200V 100mV
750V ±(1.2%+3) 1V
DC Current 2mA ±(1.2%+2) 1µA
20mA 10µA
200mA ±(1.4%+2) 100µA
20A ±(2.0%+2) 10mA
AC Current 2mA ±(1.2%+3) 1µA
20mA 10µA
200mA ±(1.8%+3) 100µA
20A ±(3.0%+7) 10mA
Resistance Ω 200Ω ±(1.0%+2) 0.1Ω
2KΩ ±(0.8%+2) 1Ω
20kΩ 10Ω
200KΩ 100Ω
2MΩ 1KΩ
20MΩ ±(1.2%+2) 10KΩ
200MΩ ±(5.0%+10) 100KΩ
Capacitance(F) 2nF / 1pF
20nF ±(4.0%+5) 10pF
200nF 100pF
2µF 1nF
20µF 10nF
200µF / 100nF
2000µF / 1µF
Frequency 2kHz ±(2.0%+5) 1Hz
20kHz ±(1.5%+5) 10Hz
Temperature -20~0℃ ±(5.0%+5℃) 1℃
0℃~400℃ ±(1.0%+3℃)
400℃~1000℃ ±2.0%
Range Description Test condition
Buzzer (diode) Display diode, forward voltage value The forward DC current is about 1mA, the reverse DC voltage is about 2.8V
The buzzer will sound when the on-resistance is less than 70Ω Open circuit voltage is 2.8V
Range Description Test condition
hFE Test the hFE parameters of NPN or PNP transistors, the display range is 0-1000β Base current 10µA, Vce is about 2.8V
Diode/continuity test √
Automatic shutdown √
True RMS measurement √
Frequency (HZ) √
Full unit symbol √
Size 182x90x31mm / 7.17x3.54x1.22in

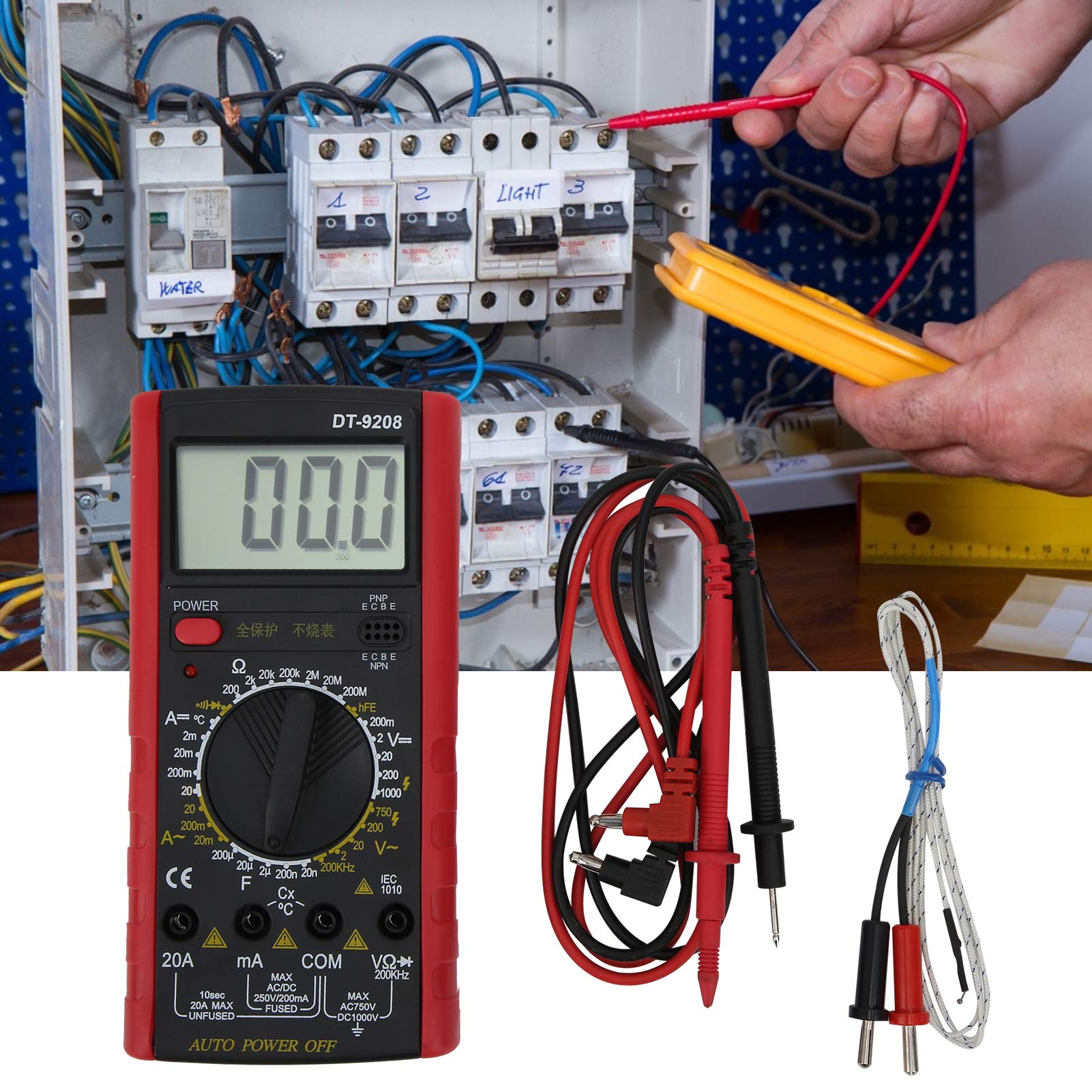

Package List:
1 x Multimeter(Battery Not Included)
2 x Test Leads
1 x Temperature Measuring Probe
1 x Instruction Manual
Note:
1. Please allow 1‑2in error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
