ESP8266 WiFi Expansion Module Raspberry Pi Pico,UART Interface | Shop The World
From USA
Newwaveshare
ESP8266 WiFi Expansion Module for Raspberry Pi Pico,UART Interface, STA, AP, and STA+AP Three WiFi Operating Modes Support TCP/UDP Protocol
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

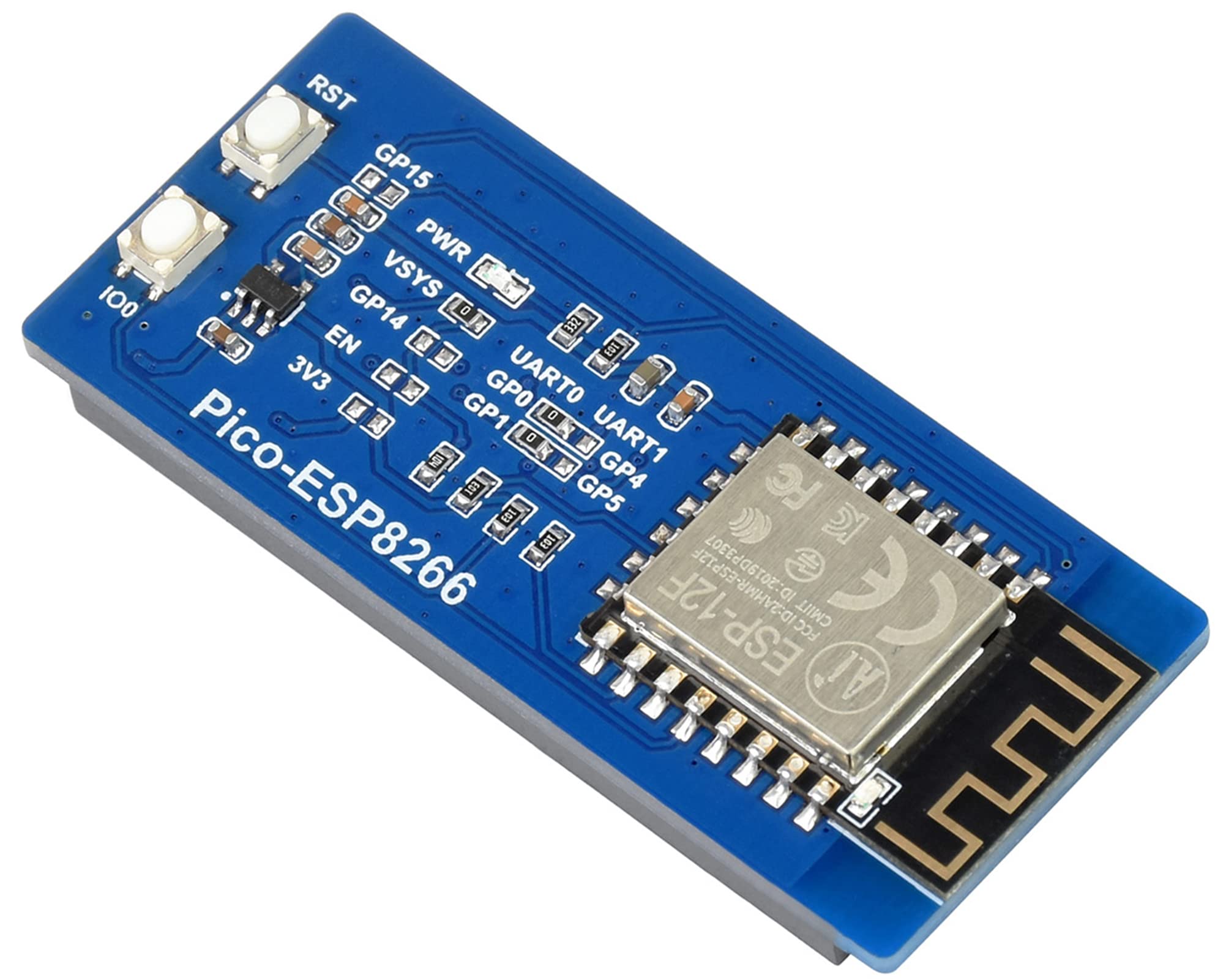

•The Pico-ESP8266 is a WiFi expansion module designed for Raspberry Pi Pico, which can be controlled via UART AT command, and supports TCP/UDP communication protocol. It is an easy solution to enable WiFi feature for Raspberry Pi Pico, suitable for sorts of IoT communication projects.
•Supports STA, AP, and STA+AP three WiFi operating modes, embedded LWIP protocol stack, supports TCP/UDP communication.UART communication, controlled via AT command, helps you get started quickly.

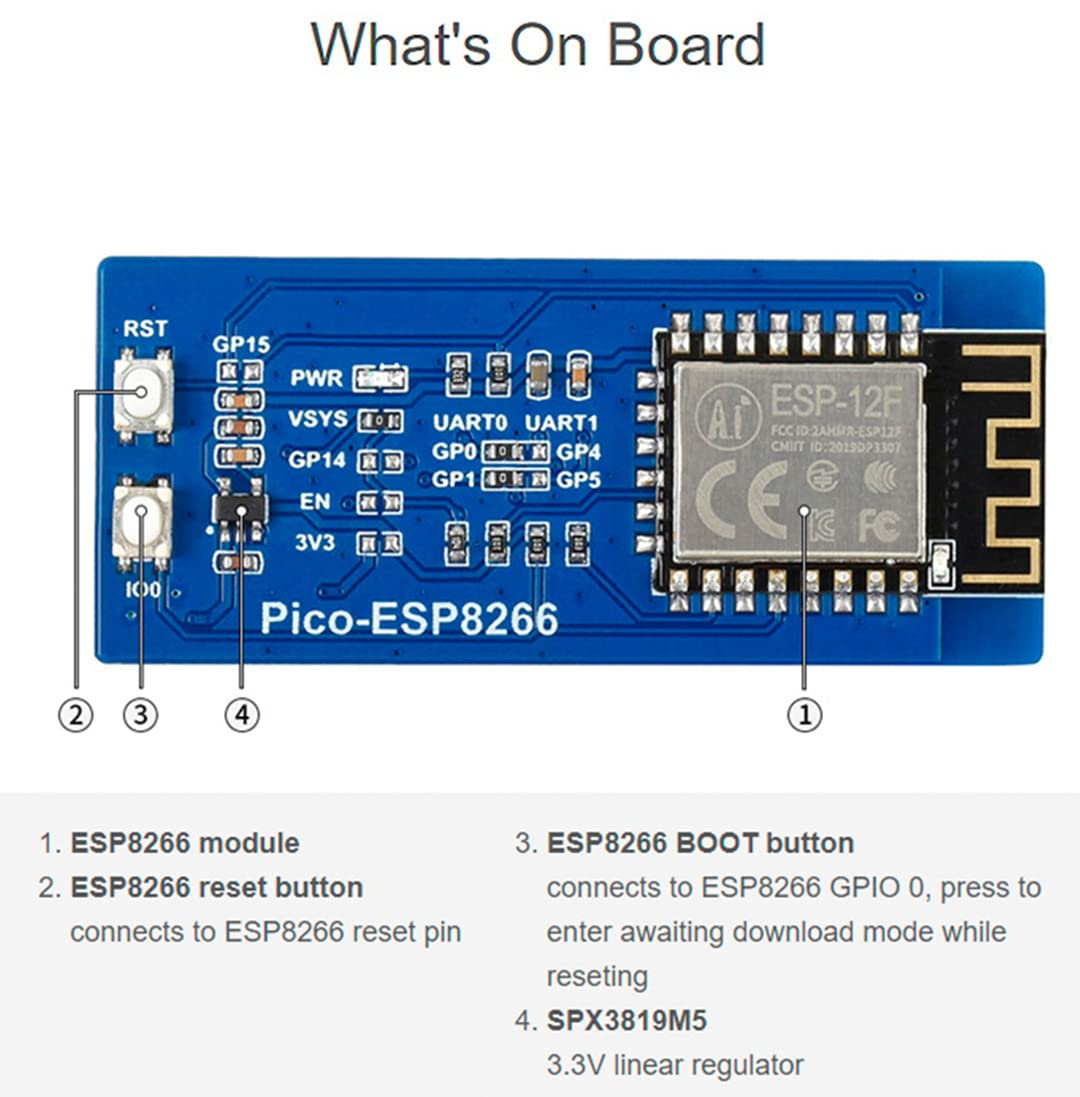

•Based on ESP8266 module, four-layers process, enhanced impedance matching, stronger signal, more stable connection. 2x functional buttons, convenient for user to update AT firmware through Raspberry Pi Pico.
•Specifications: Communication interface:UART. UART baudrate:115200 bps. WiFi standard:IEEE 802.11b/g/n. Frequency range:2400 ~ 2483.5 MHz. WiFi operating mode:WiFi STA, WiFi AP, WiFi STA+AP. Antenna:PCB antenna. Operating voltage:3.3 V. Operating temperature:-40℃ ~ 85℃. Dimensions:58 x 25 mm.
•Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples):waveshare.com/wiki/Pico-ESP8266?Amazon
