DAOKI 1.8-6V 8 Channels Bi-Directional Logic Level Shifter Module Logic Converter Signals Sensor Voltage Bi-Directional Converter for Raspberry Pi
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

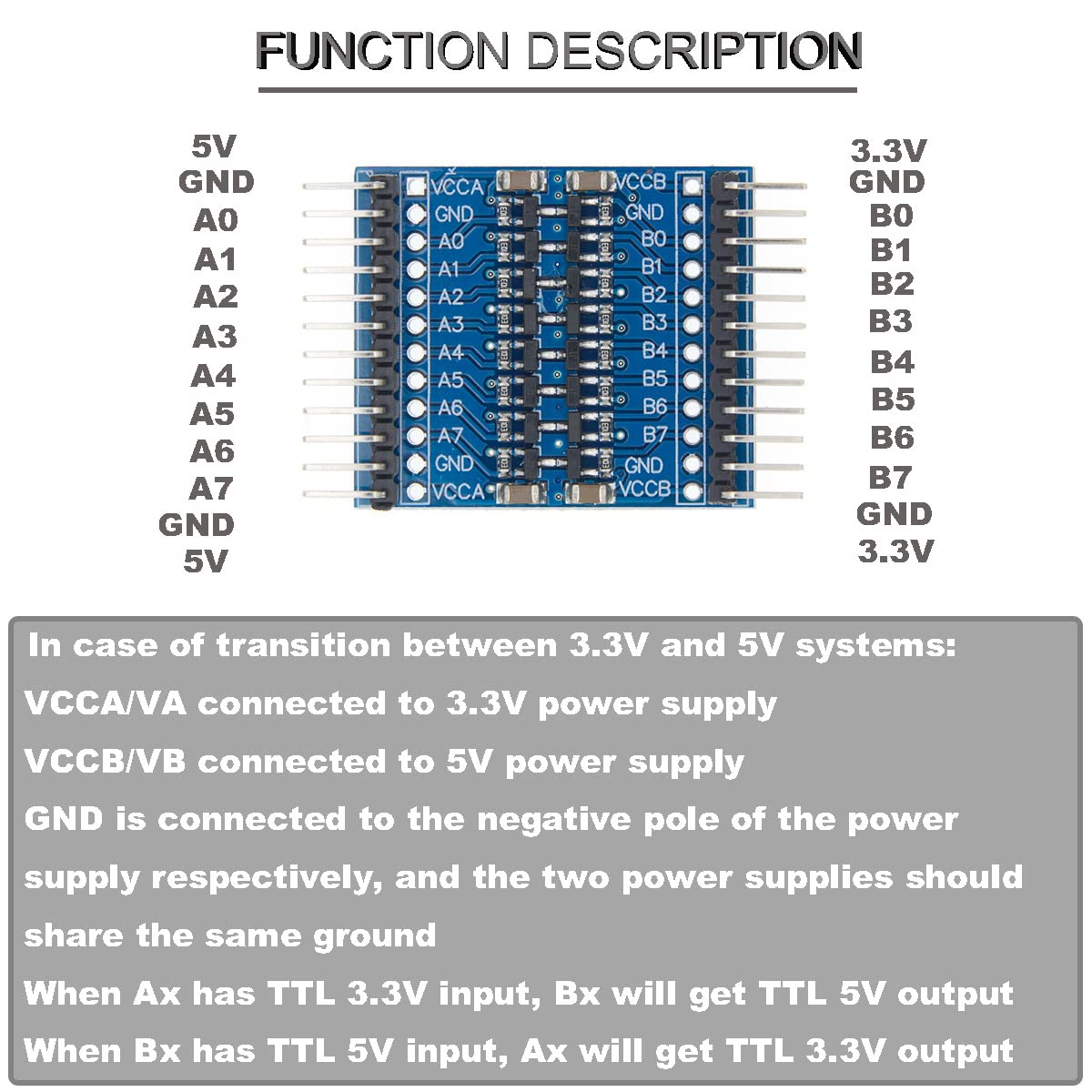

•Product features：Since Raspberry Pi is a 3.3V GPIO, it is not convenient to use conventional 5V sensors. Therefore, the product realizes the bidirectional logic conversion of 8-channel high-voltage and low-voltage logic, and the bidirectional conversion between Ax and Bx.
•Application：Widely used for MCU and SD card, MCU and serial device, MCU and 3.3V-5V module communicationB
•Function provision：provide two-way communication function. Provide 1.8-3.3v, 3.3-5V and other general level conversion functions.
•Recommendations for use：When using our product, it is recommended to use OE high level to effectively enable IO on the low-voltage side of the IO port. I wish you a better experience.
•Compatibility：The module's serial communication interface is compatible with UART / IIC / SPI ports, easy to connect.
