DKARDU 10 pcs MT3608 Step up Converter Module 2V-24V to 5V-28V 2A Adjustable Module Voltage Regulator Board DC-DC Mico USB Interface with Red and Black Cable Micro to USB Cable
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

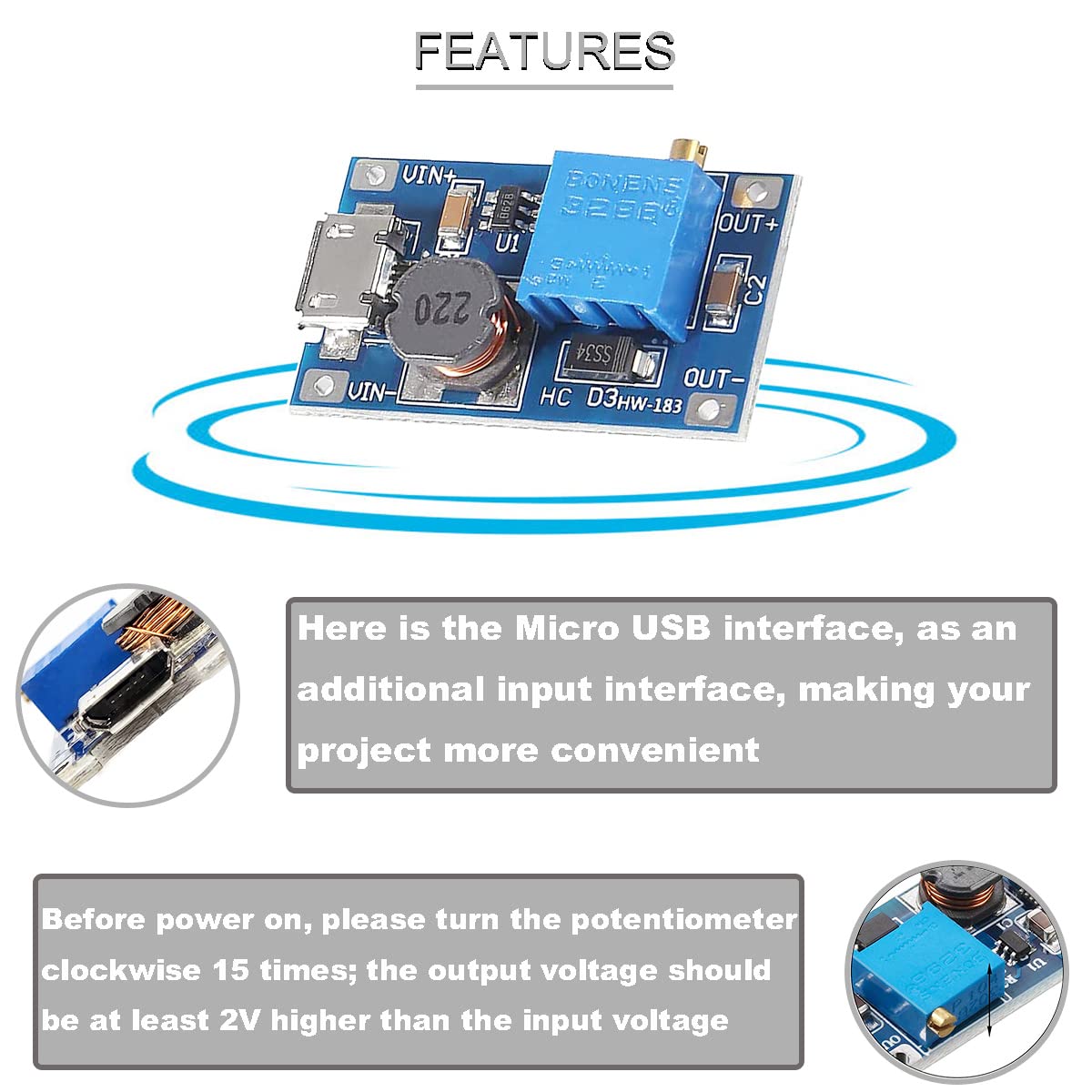

•What it does: The MT3608 Step up Converter module can convert the input voltage of 2V-24V to the output voltage of 5V-28V, so that it is convenient for you to carry out project experiments.
•Adjustable Output: The MT3608 Boost Converter module has an adjustable potentiometer capable of adjusting the output voltage from 5V-28V.

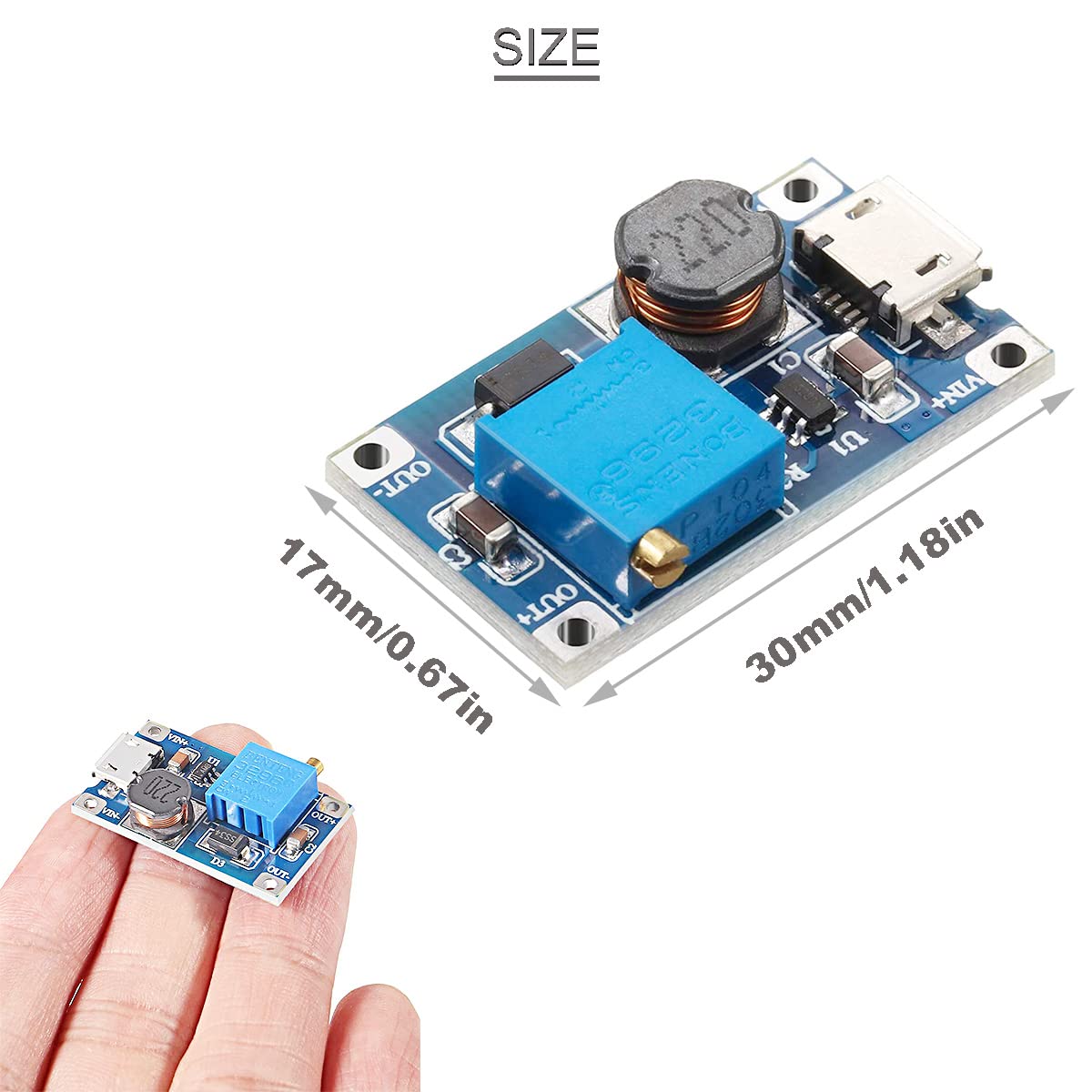

•Parameters: Maximum output current: 2A; Input voltage: 2V-24V; Output voltage: 5V-28V; Efficiency: Up to 93%; Size: 36 x 17 x 14 mm/1.42 x 0.67 x 0.55 inches (L x W x H).
•Note: The input voltage should not exceed the maximum input voltage;The peak current output current should not exceed 2A.
•How to use: Before power on, please turn the potentiometer clockwise 15 times;The output voltage should be at least 2V higher than the input voltage.
