CHANCS DC 12V 60RPM 6mm Single Shaft Self-Locking Reversible Worm Gear Motor for Shredders, Smart Devices
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Turbine-worm geared motors are compact and have a self-locking function. when the motor is not energized, the output shaft is fixed and self-locking. The motor can adjust the speed and rotation, the red wire connects to the positive pole, the black wire connects to the negative pole, when the wiring is reversed, the motor steering changes.

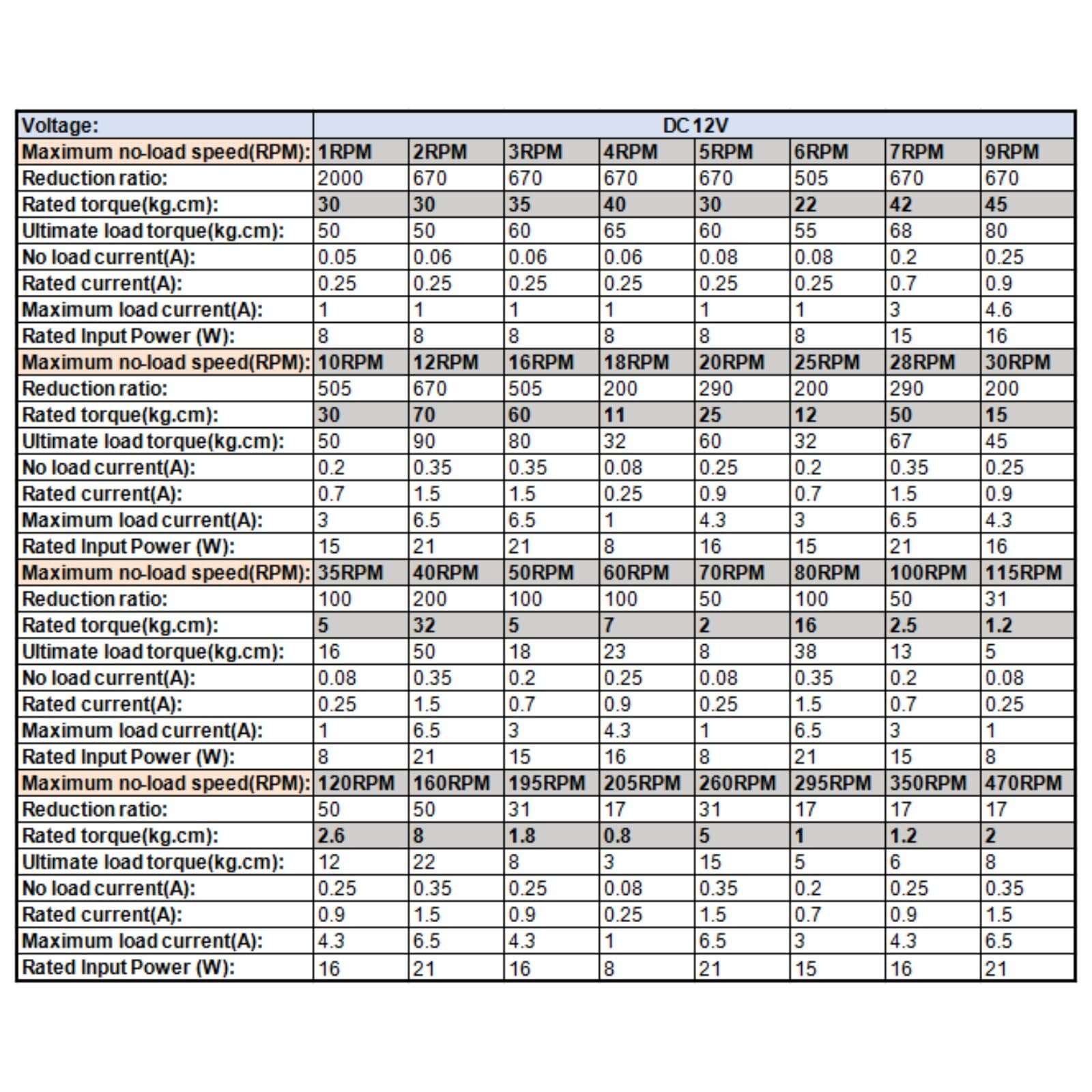

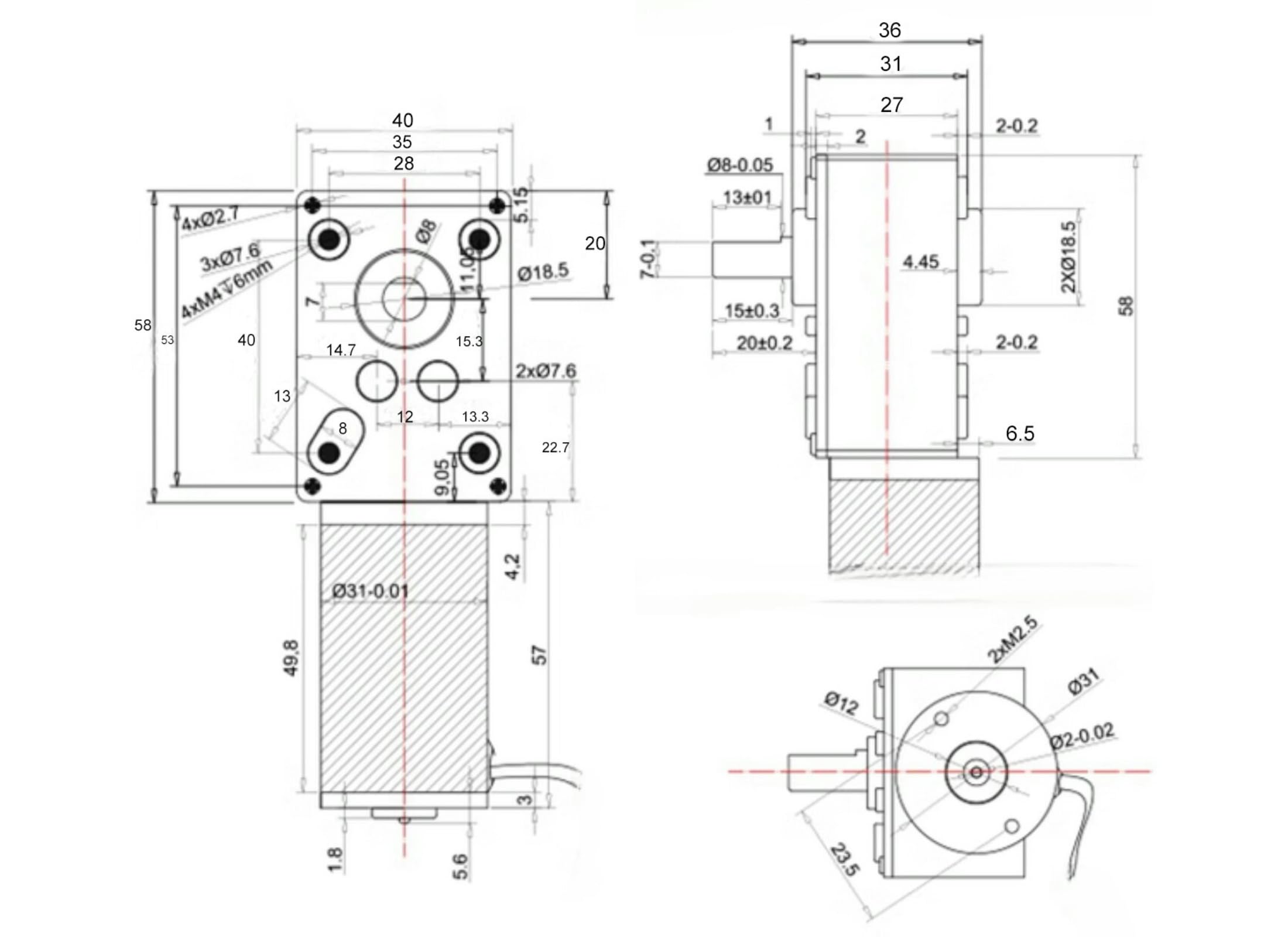

•Specifications: Voltage:DC 12V Reduction ratio:100 Maximum no-load speed:60RPM No-load current:0.25A Rated torque:7kg.cm Rated current:0.9A Rated input power:16W Ultimate load torque:23kg.cm Maximum load current:4.3A DC motor body dimensions:31 x 57mm (1.22" x 2.24") (D*L) Gearbox dimensions:58 x 40 x 27mm (2.28" x 1.57" x 1.06") (L*W*H) Output shaft dimensions:8*16mm (0.31" x 0.63") (D*L)

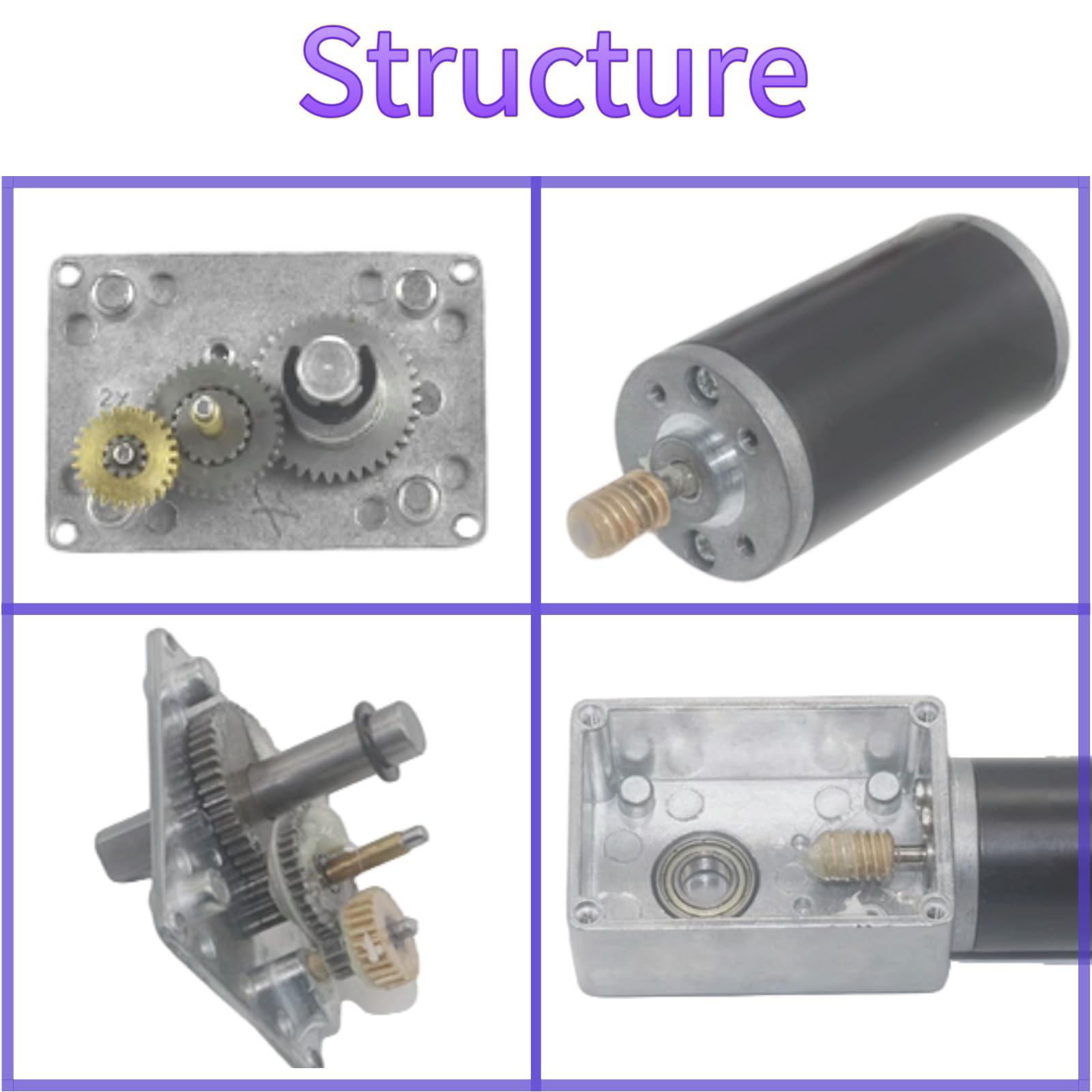

•The motor adopts metal gears inside, which increases the torque of the motor, is wear-resistant and corrosion-resistant, has good impact resistance, produces low noise, dissipates heat quickly, and has stable output.
•Pure copper coil rotor is made of high quality material, good conductivity, high temperature resistance, low power consumption, strong power, controllable temperature rise, stable speed and long service life.
