450W 110V/220V DC QW80BL 80mm Square BLDC Motor 3-Phase 3000RPM-12000RPM High Speed Brushless Motor with Hall-Sensor (220v-450W3000rpm)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Motor Parameters:
•Model: QW80BL007 30-450
•Rated Power: 450W
•Input Voltage: 220-240VDC OR 110-130VDC
•Rated Speed: 3000 RPM
•Holding Torque: 1.43 N.m

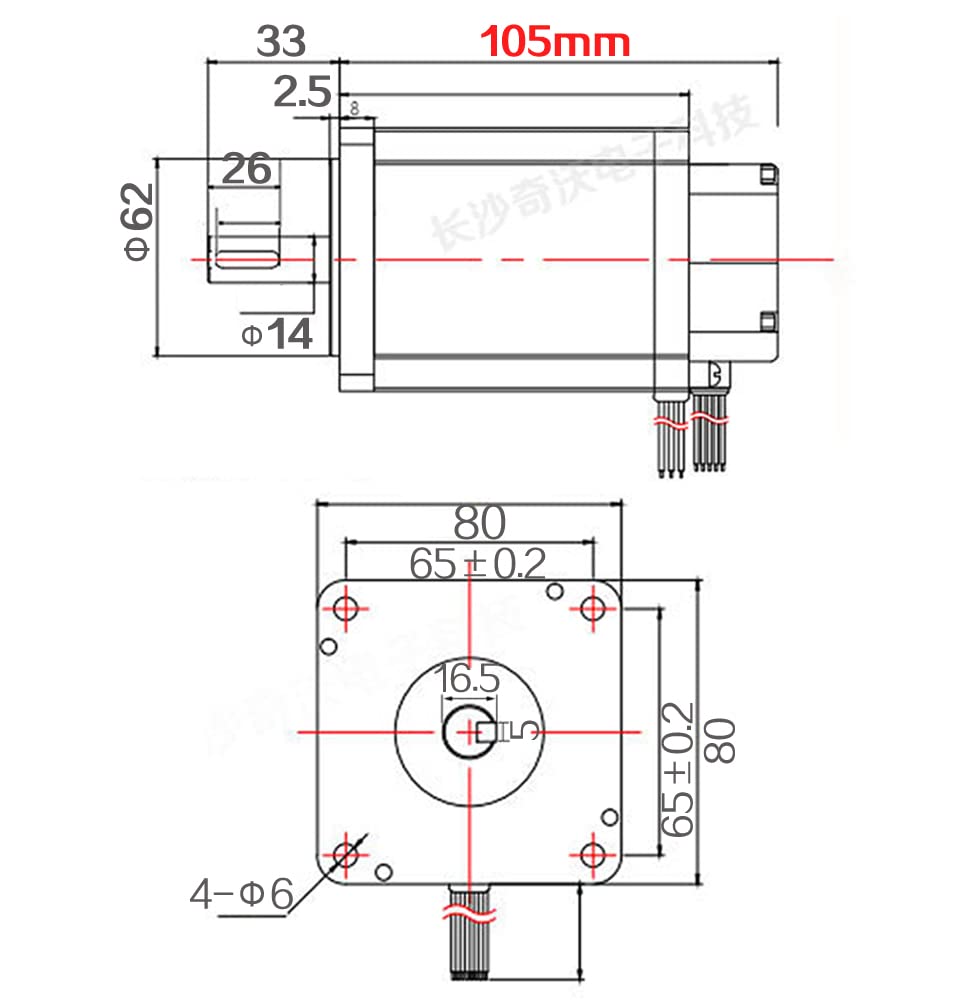

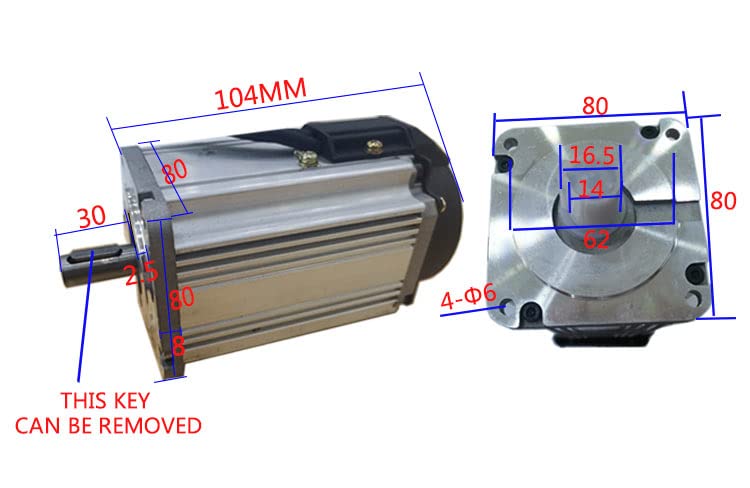

•Flange:80mm
•Output shaft Dia.:14 MM
•Number of Poles: 6
•Driver function: 1. Hall position sensor is adopted 2. External potentiometer stepless speed regulation interface 3. Can use external analogue speed control. 4. Five-digit display speed panel 5. AC 110V-130V or 220V-240V Power supply 6. It can be externally connected with positive and reverse selection switch 7. Built-in thermal protection , Over current protection, Hall error protection.
