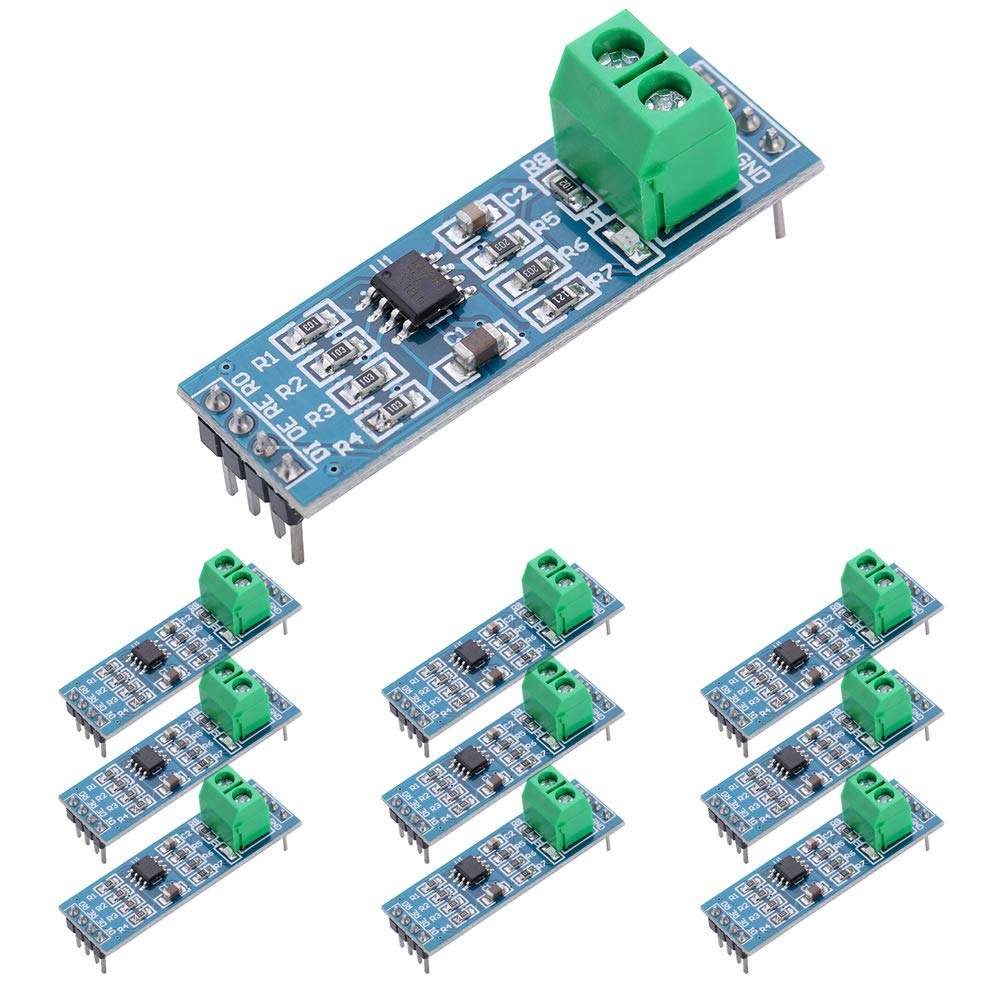

ANMBEST 10PCS MAX485 RS485 Transceiver Module TTL UART Serial to RS-485 Module for Arduino Raspberry Pi Industrial-Control
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

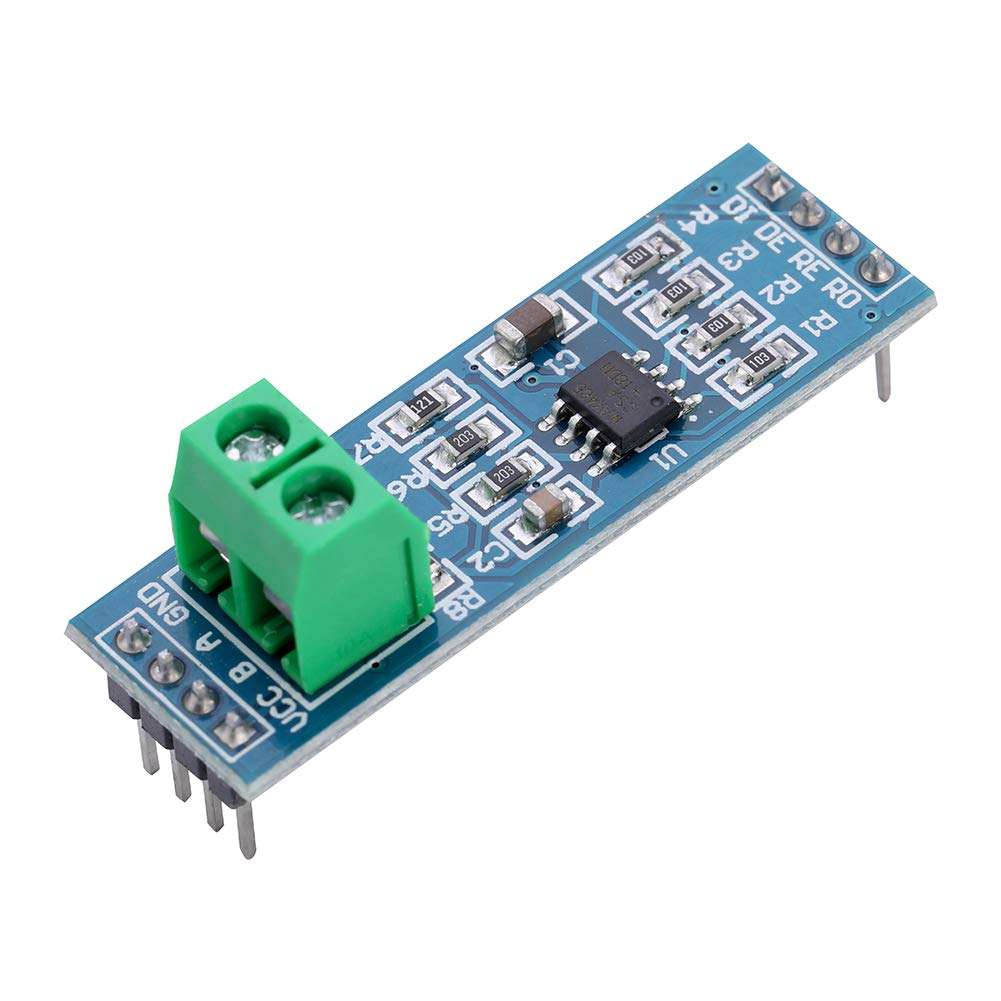

•Long Distance: This low power transceiver module is based on the MAX485 IC to allow serial communication over very long cable runs (up 4000 feet / 1200 meters).
•High Speed: Serial data can be transmitted in both directions (half duplex) at a data rate up to 2.5Mbps.

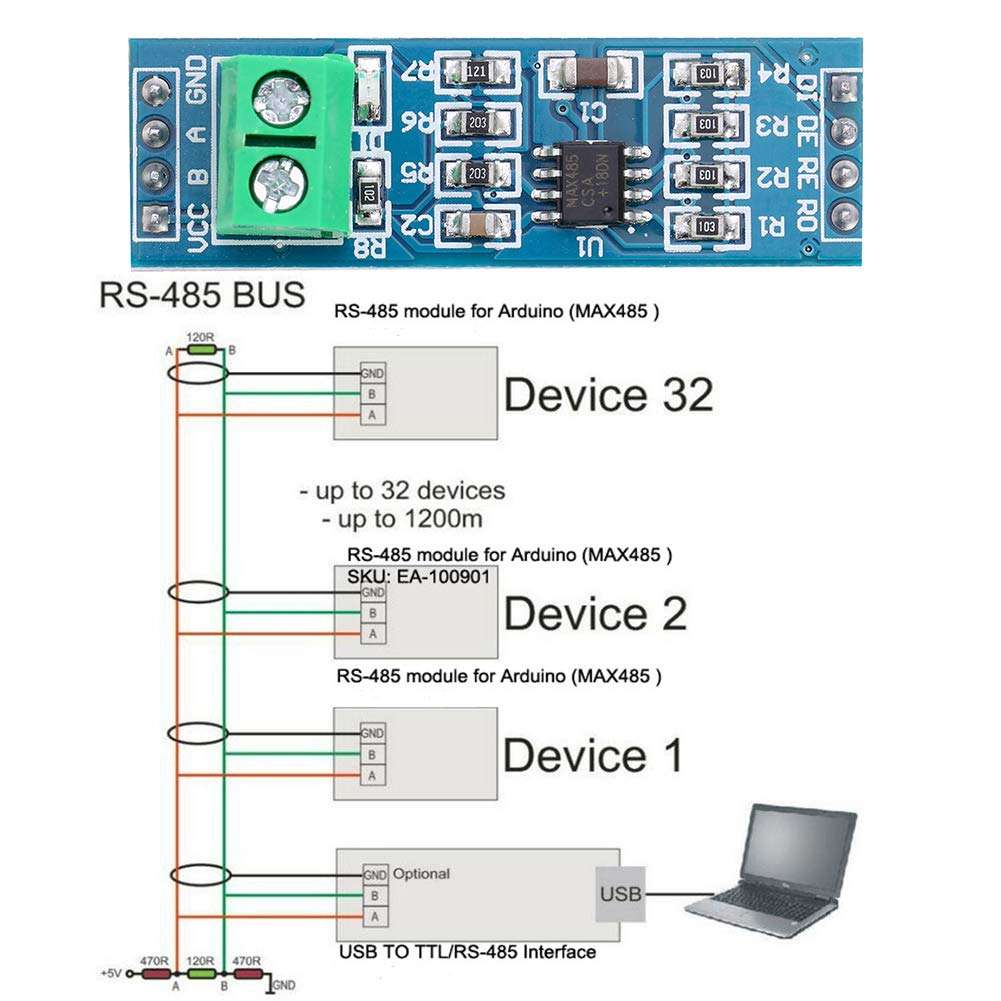

•Multi-Device Communication: It is possible to connect multiple modules together for communication between 2 or more devices（up to 32）. For even greater distances two modules can be configured as a repeater.
•EASY TO USE: Data connections to the modules are provided by a standard 0.1" pitch header pins which can also be soldered into standard prototyping PCB and breadboards. Screw terminals provide convention connection to the actual data cable.
•Widely Applications: Applicable to Low-Power RS-485 Transceivers, Low-Power RS-422 Transceivers, Level Translators, Transceivers for EMI-Sensitive Applications, Industrial-Control Local Area Networks.
