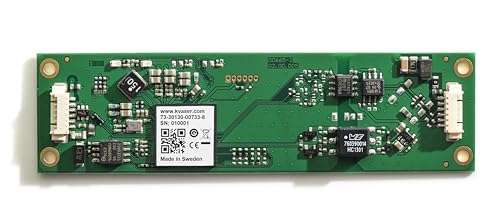

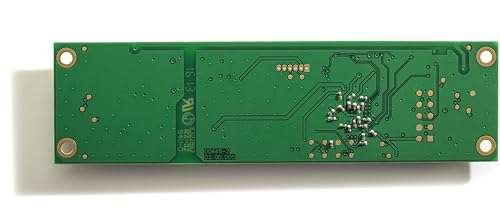

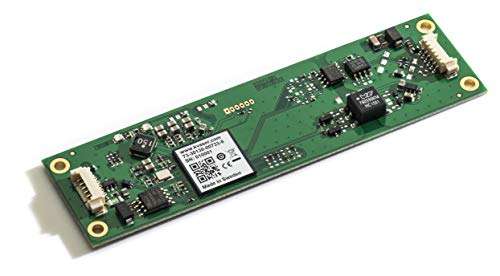

Kvaser Leaf Light HS v2 CB, High Speed CAN Interface Circuit Board Version
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
Safe and trusted checkout with major payment methods
4.5/5 · 379 reviewsTrustpilot
•The Kvaser Leaf Light HS V2 CB is a high speed USB interface for CAN that offers loss free transmission and reception of standard and extended CAN messages on the CAN bus.

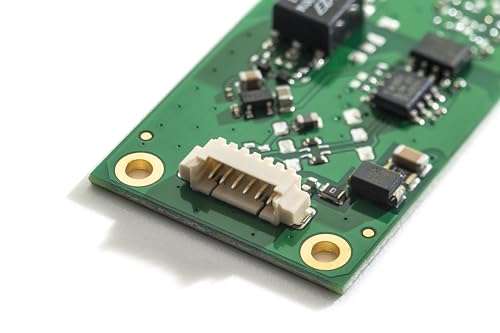

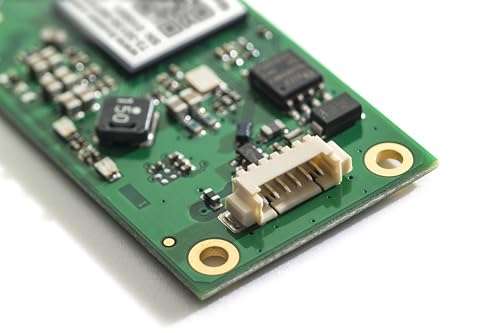

•Both USB and CAN are connected using 6-way connectors and mate with Molex 51021 PicoBladeTM (e.g. housing 51021-0600 and terminal 50079-8000).
•8000 messages per second, each time-stamped with 100 microsecond accuracy.
•Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
•High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
•Galvanic isolation, enhancing protection from power surges or electrical shocks.
•Local buffering and preprocessing results in high performance and a reduction of time critical tasks for the PC.
•Both USB and CAN are connected using 6-way connectors and mate with Molex 51021 PicoBladeTM (e.g. housing 51021-0600 and terminal 50079-8000).
•2-Year Warranty. See our General Conditions and Policies for details.
