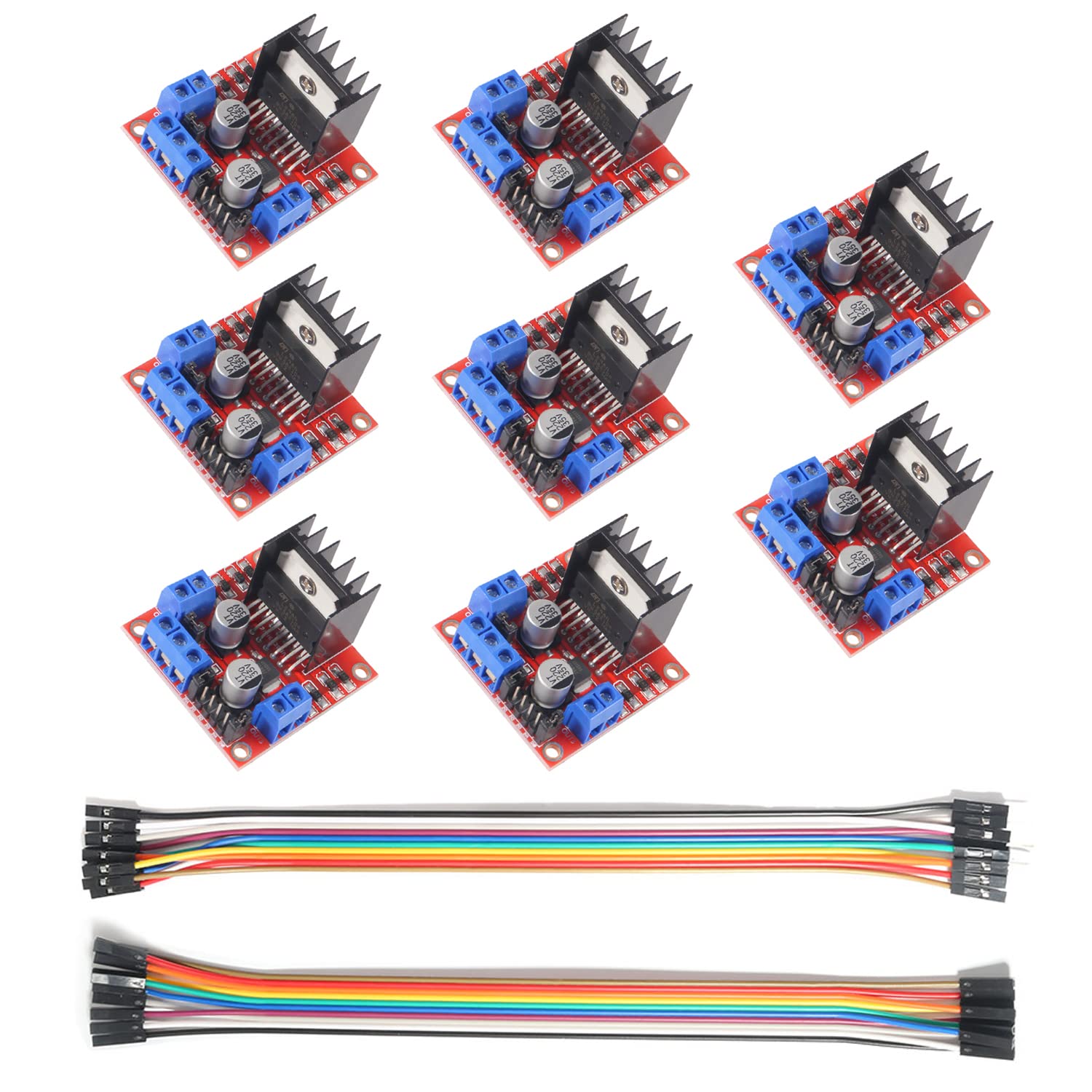

8PCS L298N Motor Drive Controller Board Dual H Bridge DC Robot Stepper Motor Compatible with Electric Projects, Smart Car Robot
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

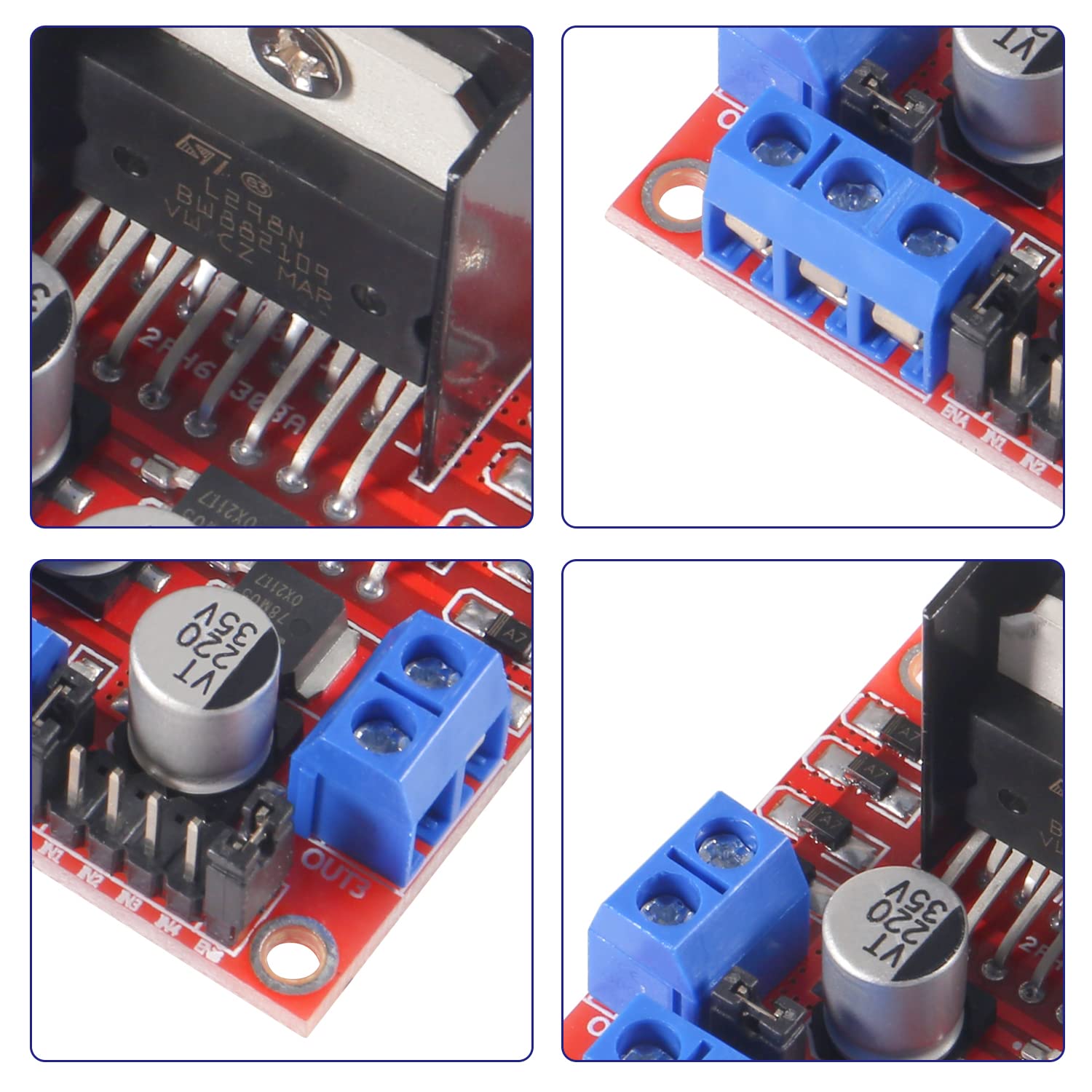

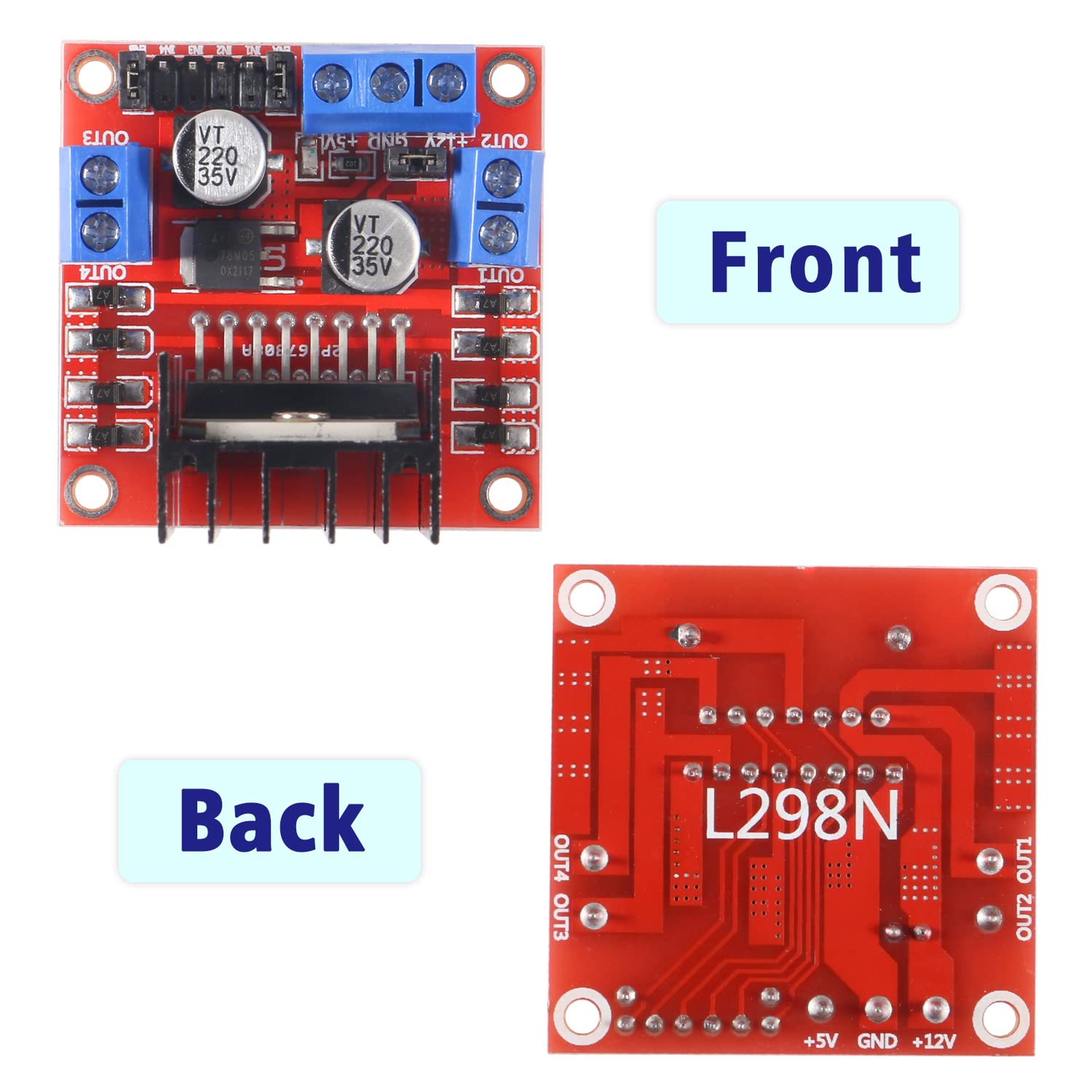

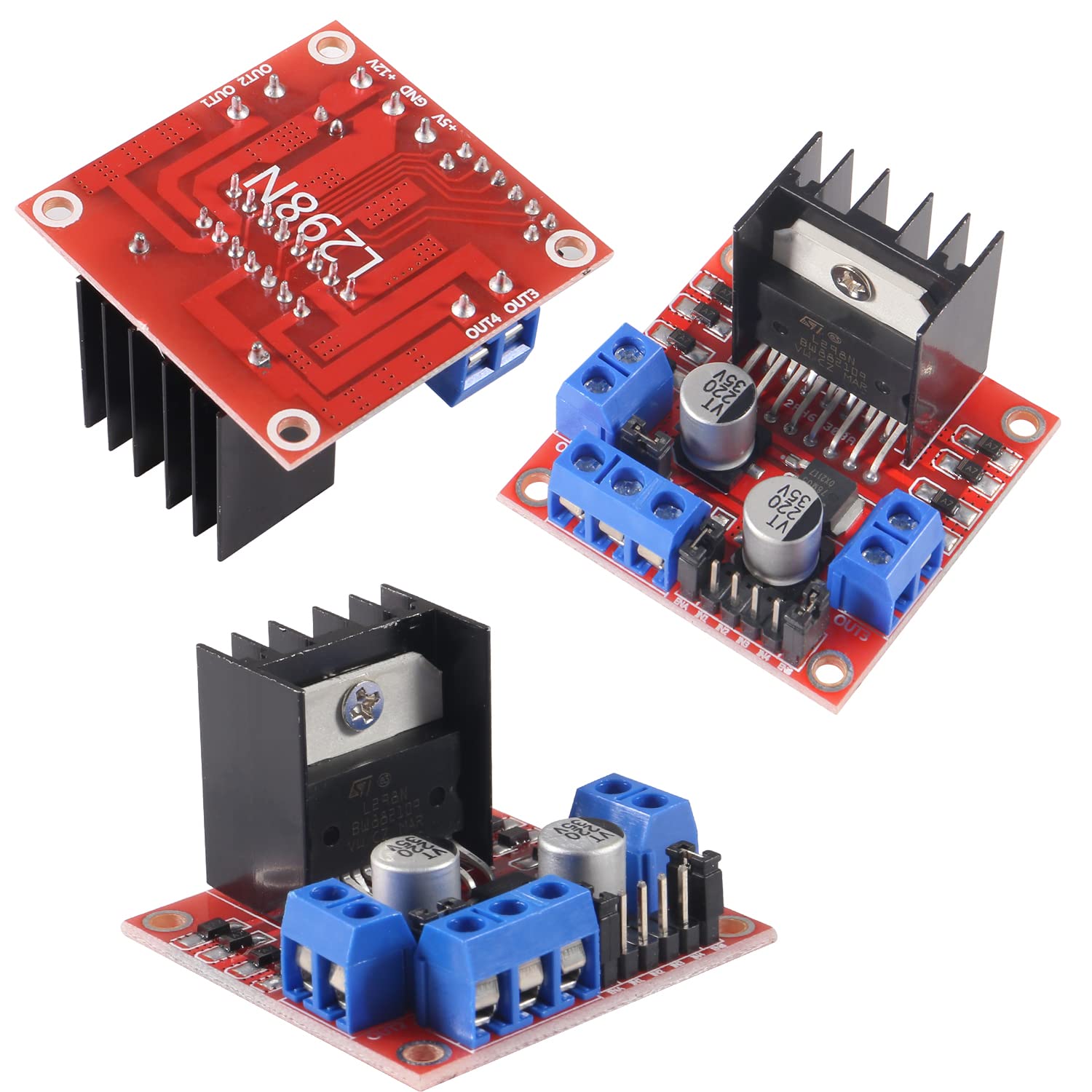

•Dual-channel H-bridge driver working mode creates higher working efficiency,L298N as main chip, Can drive one 2-phase stepper motor, one 4-phase stepper motor or two DC motors.
•The L298N driver module, using L298N chip can directly drive two 3-30V DC motor, and provides a 5V output interface, you can chip circuitry to 5V power supply, support 3.3VMCU control, you can easily control the DC motor speed and direction, you can also control the 2-phase stepper motor, smart car essential.
•Terminal driver part of the supply area VMS: +5V ~ +35V;Drive part of the peak current Io: 2A / Bridge; Logical part of the terminal power supply range Vss :4.5-5 .5V;Logical part of the operating current range: 0 ~ 36mA; The control signal input voltage range: 4.5-5.5V low 0V high;Maximum power consumption: 20W
•To avoid damage the voltage stabilizing chip, please use an external 5V logic supply when using more than 12V driving voltage; High working power to 46v, large current can reach 3A MAX and continue current is 2A, power to 25w.
•Use large-capacity filter capacitors and diode with freewheeling protection function, increasing reliability, large capacity filter capacitance,afterflow protection diode, more stable and reliable.
