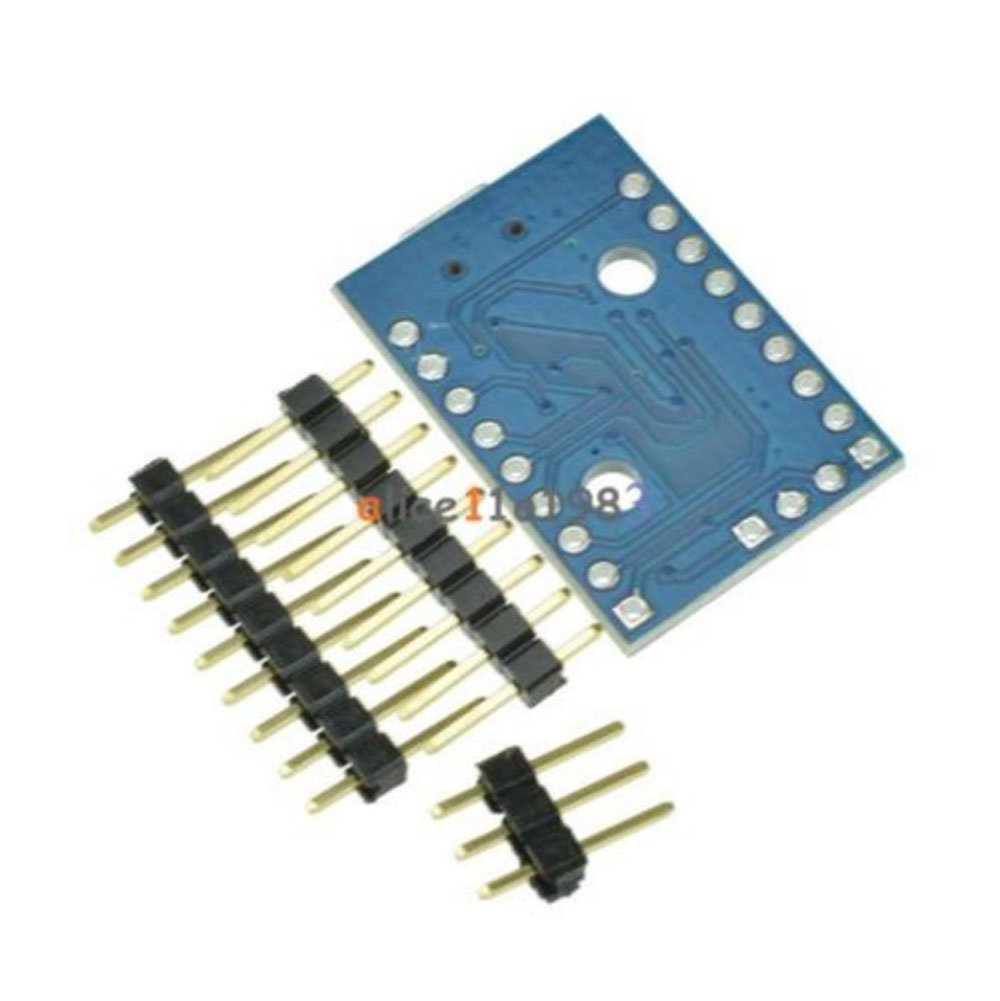

Micro USB Digispark Pro Development Board Kickstarter ATTiny167 For Arduino
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Compatible with Arduino IDE 1.5 (OSX/Win/Linux) , Fully signed drivers and executable for easy installation , USB programming, Serial over USB debugging and communication,USB device emulation, USB-CDC virtual serial port emulation
•16 MHz AVR MCU - using a true 16Mhz precision crystal,16KB Flash Memory (14.5K+ after bootloader) , 14 i/o Pins (2 shared with USB) , I2C, true SPI, UART, LIN, and USI , ADC on 10 pins,3 PWM Channels (which can be assigned to a selection of pins) , Power via USB,or External Source - 5v or 6-16v (automatic selection) ,
•On-board button that can be used as a reset, program, or user button - or can be disabled to use that pin as general i/o - without changing the bootloader , On-board 150mA 5V regulator
•Power LED and Test/Status LED (on Pin 1),accessible solder jumpers to disable LEDs, and other features for lower power consumption Two mounting holes,Breadboard compatible pin out/spacing , (the three side header pins are only for legacy shield support)
