XSHBGF Solar Diode Anti-Reverse One Way Diode MDK 110A(110Amp) | Shop The World
From USA
NewXSHBGF

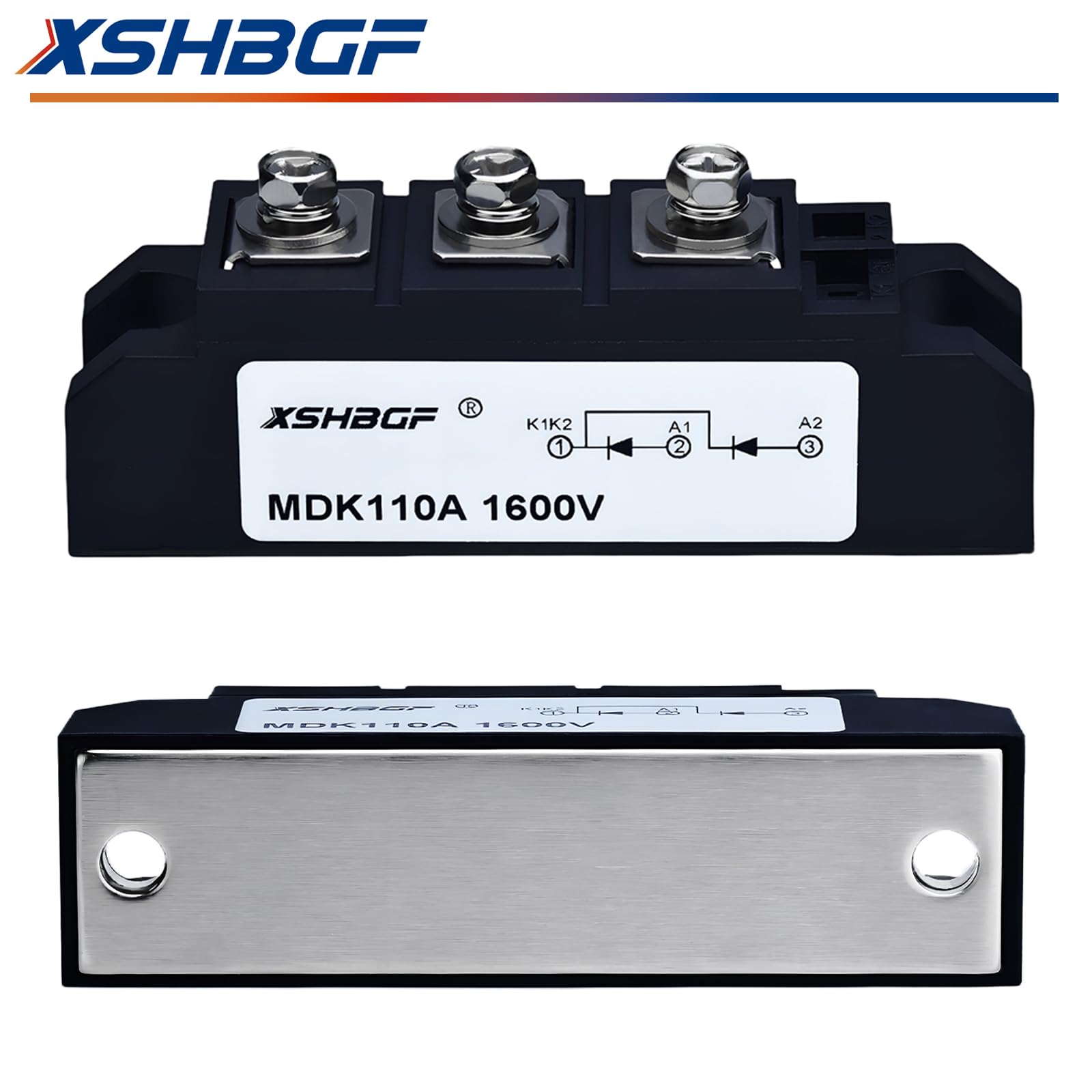

XSHBGF Solar Diode Anti-Reverse One Way Diode MDK 110A(110Amp)-16 (MDK 110A) Suitable for Photovoltaic Convergence Solar Energy and Solar Panels
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•This model is anti-reverse diode MDK 110A-16; To prevent backfeed ;Also called blocking diode ;Peak voltage 1600V;AC < 400VAC ;DC 3-1000VDC;Include:12VDC 24VDC;
•Because it is commonly used in solar energy and photovoltaic power generation, and is often paired with solar cells and solar panels, some customers may refer to it as a "solar diode"

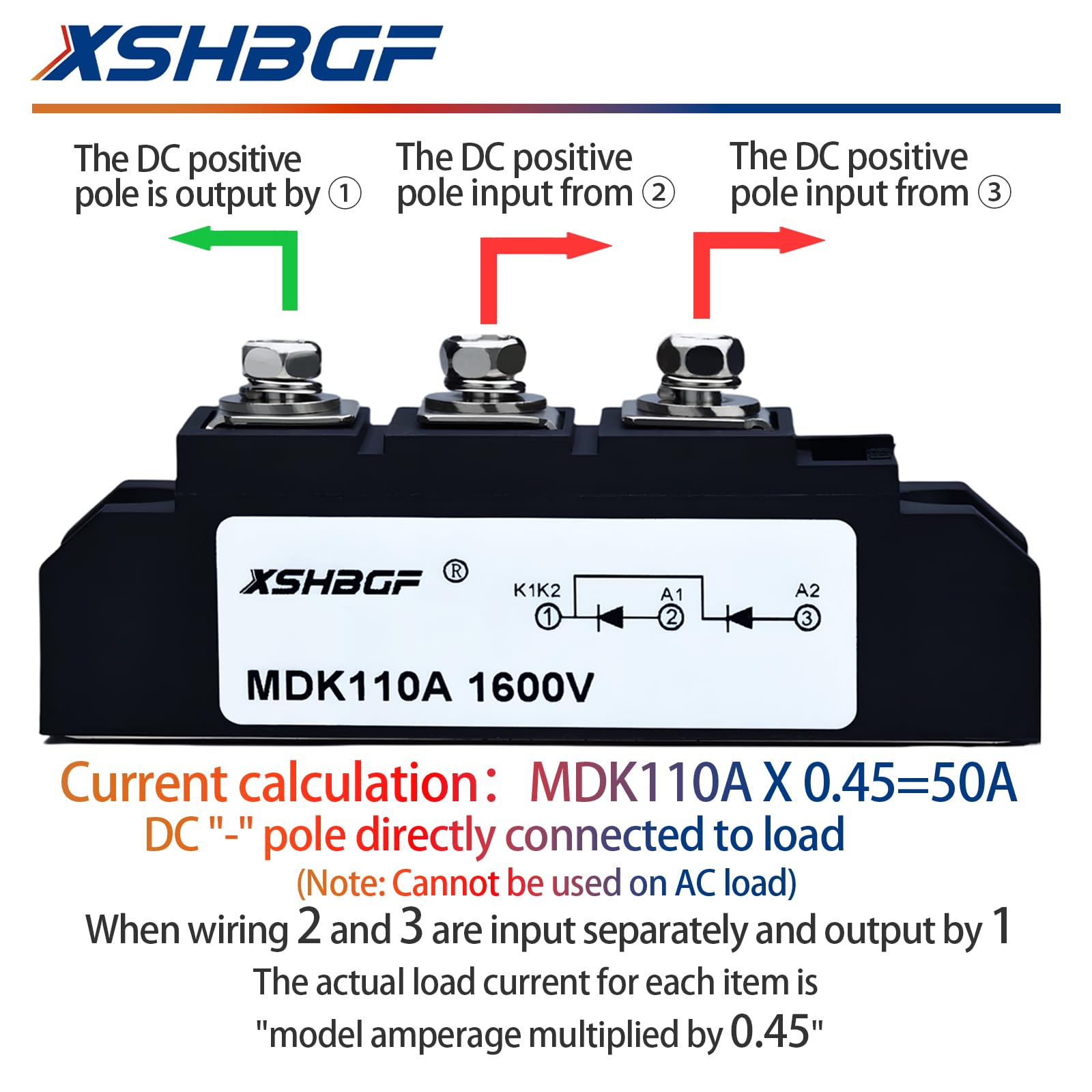

•Available as MD, use pins 1,2or1,3;Using pins 2 and 3 at the same time can be used as two diodes
•Also called a rectifier diode;rectifier bridge; used for rectification;Also known as a high current diode
•Resistive load MAX=50amp;The load bearing capacity depends on the use environment, the higher the temperature, the worse the effect;
