XANHAM 26 Feet(8 Meter) RS232 Null Modem Cable DB9 2 3 Cross TX RX Line Double Shielded(Metal Braiding&AL-foil) Male to Male, Black, SC902X11MM
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•DB9(NOT VGA-15 Pin) Male to Male: With standard DB9 male connector for each ends, serial null modem cable (3 wire type and no hardware handshaking) connects your computer to device with COM port RS-232 compatible interface.

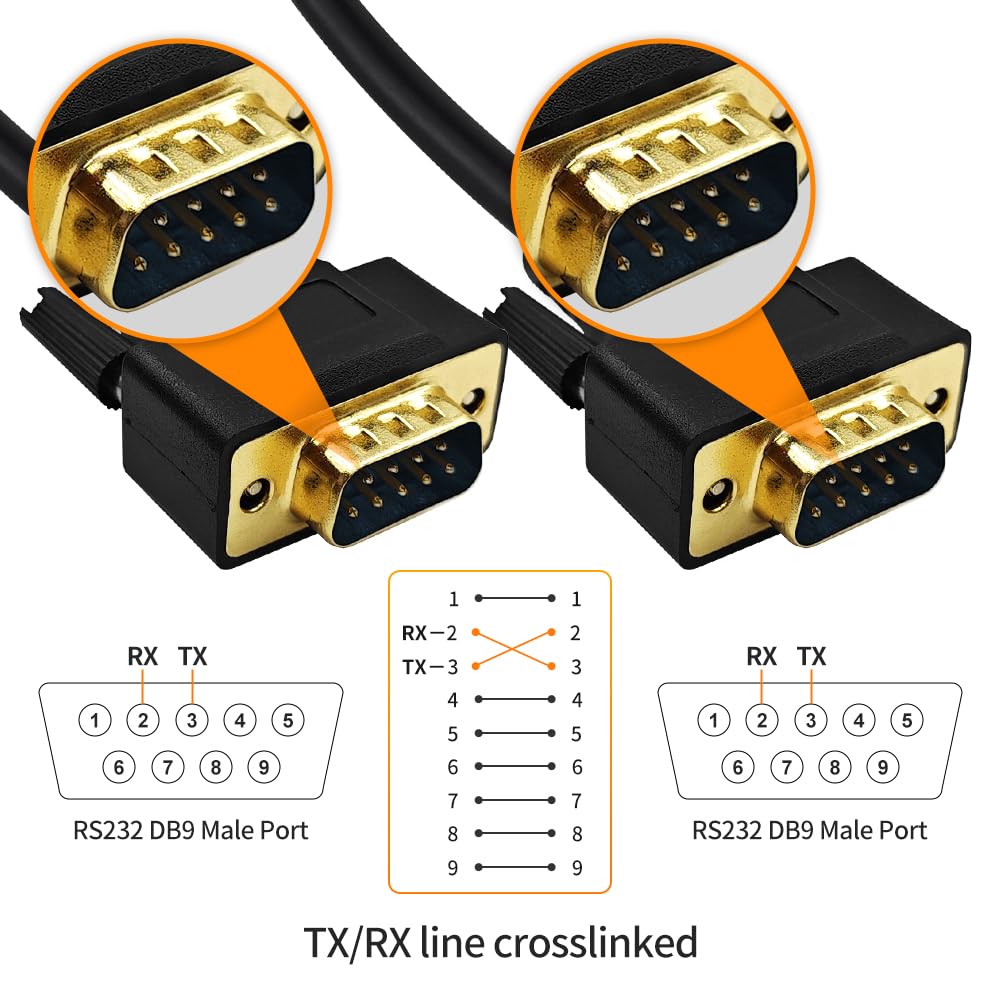

•2, 3 TX and RX Cross: Pin 2(RX) and pin 3(TX) are cross connection, while 1, 4, 5, 6, 7, 8, 9 and G Pins are wired straight through, with the order by 1-1, 2-3(RX-TX), 3-2(TX-RX), 4-4, 5-5, 6-6, 7-7, 8-8, 9-9, G-G.
•Stable Connection: 28AWG pure copper conductor and gold-plated connector provide smooth connection basic, while metal braiding and AL-foil shielding structure can prevent external interference for safe and stable connection.
•Durabe Desigh: XANHAM DB9 null modem cable are all produce through two times injection molding(internal molding and outer molding) which can maintain a more stable structure with cable and connectors. Cable are UL Listed with VW-1 fire resisitance for using safety both in-wall and out-wall.
•Compatibility: It is widly use for computer connecting to the equipment with DB9 connector for null modem data communication like scanner, Modem, printer, plotter, switches, camera, barcode / embroidery machine, touchscreen, microcontroller, test equipment.
