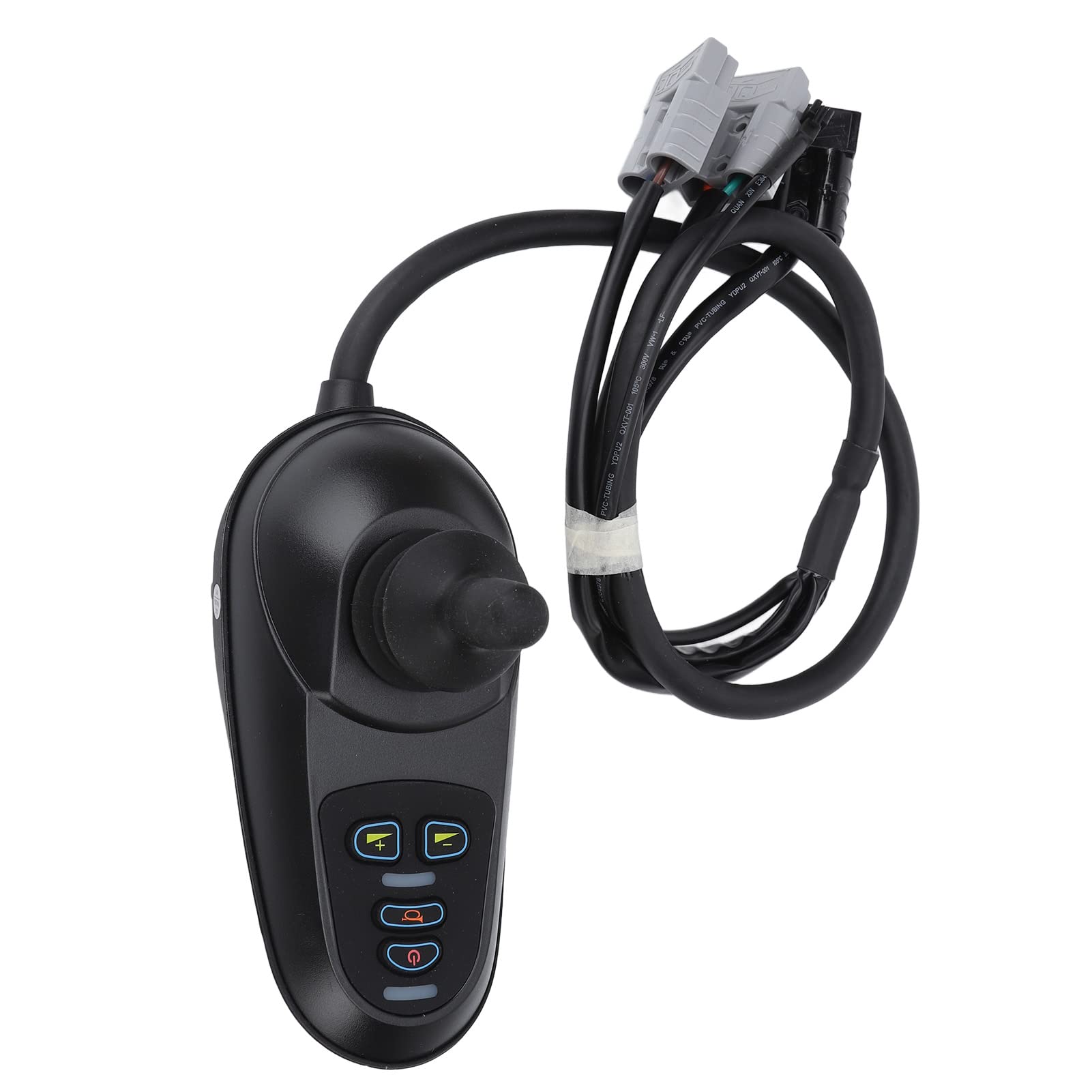

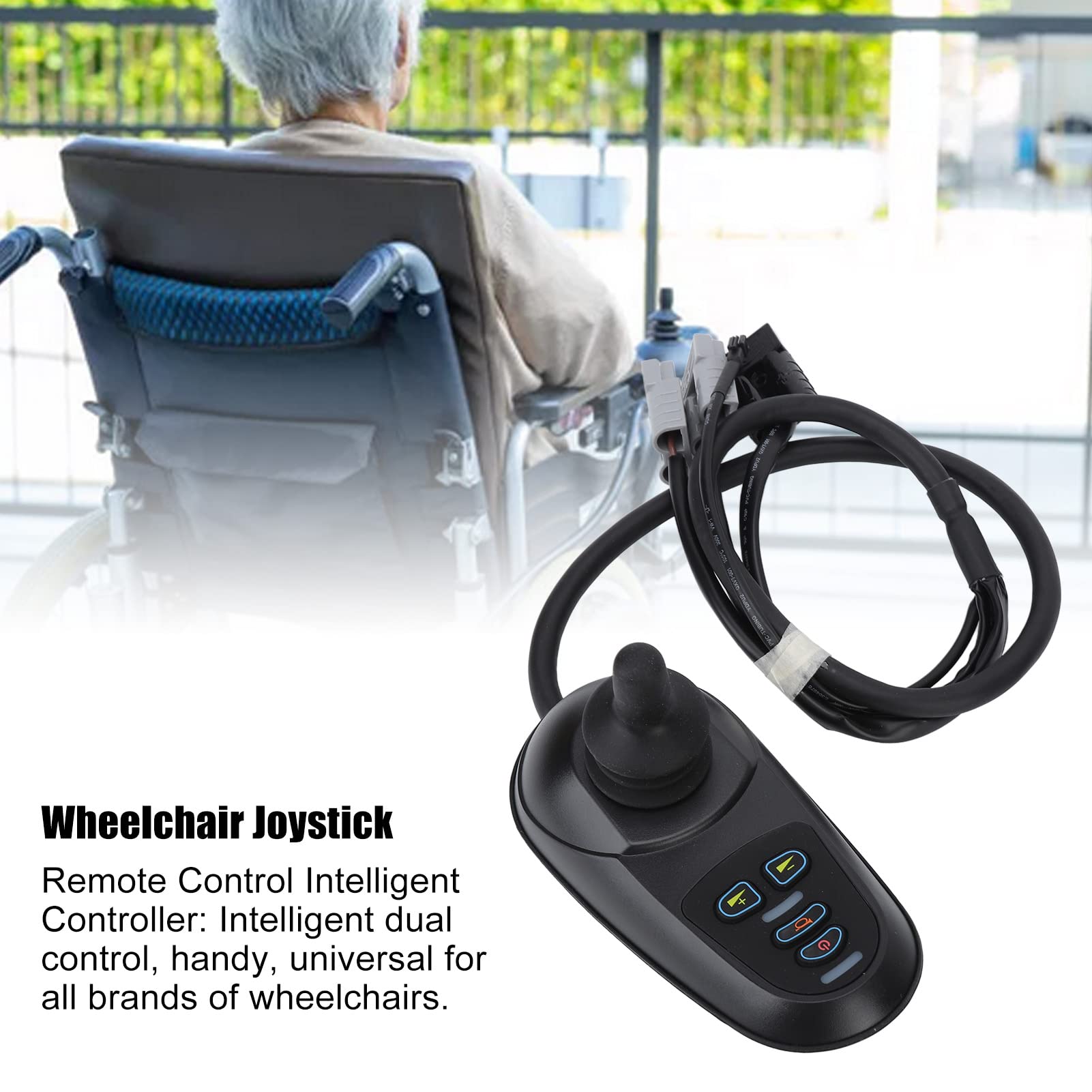

WEYI Universal Smart Anticorrosion Power Wheelchair Joystick Joystick For Wheelchair Joystick For Electric Chair

Specification:Item Type: Wheelchair JoystickProduct Material: ABSRemote Control Batteries: 2 x AAA Batteries (Battery Not Included) Voltage: DC 35VOutput Current: 50ABraking Voltage: DC 24VBraking Current: Single Channel Maximum 3ABattery Charging Current: Maximum 6A, Charged By ControllerCurrent Required For Standby: (Static): 50mAmpsCurrent Required For Standby (Power Off): 0.10.05mAmpsOperating Temperature: -25℃ To +60℃Storage Temperature: -45℃ To +80℃Applicable Drive Motor Form: 24V DC Brush MotorHow to Use:1. Power on and off: Press this key to turn on the power, the battery indicator light turns on, the controller system enters the startup process, press this key again to turn off the power, and it needs to be pressed for more than 0.5 seconds to prevent misoperation.2. Deceleration key: reduce the maximum speed of driving, press once to reduce the speed by one gear, and the speed is displayed as the current speed gear.3. Accelerator key: increase the maximum speed of driving, press once to increase the speed by one gear, and the speed will be displayed as the current speed gear.4. Joystick: Control the speed and direction of driving and parking. The direction of the joystick is the same as the direction of travel, and the joystick is naturally released (in the middle position) to stop running.5. Horn key: The horn sounds and the buzzer sounds.6. The battery can be installed in the remote control to be controlled by the remote control.Package List:1 x Controller1 x User Manual1 x Remote Control
