Waveshare SIM8262E-M2 5G HAT Compatible with Raspberry Pi Quad Antennas 5G NSA, Multi-Band, 5G/4G/3G Compatible Without Case
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

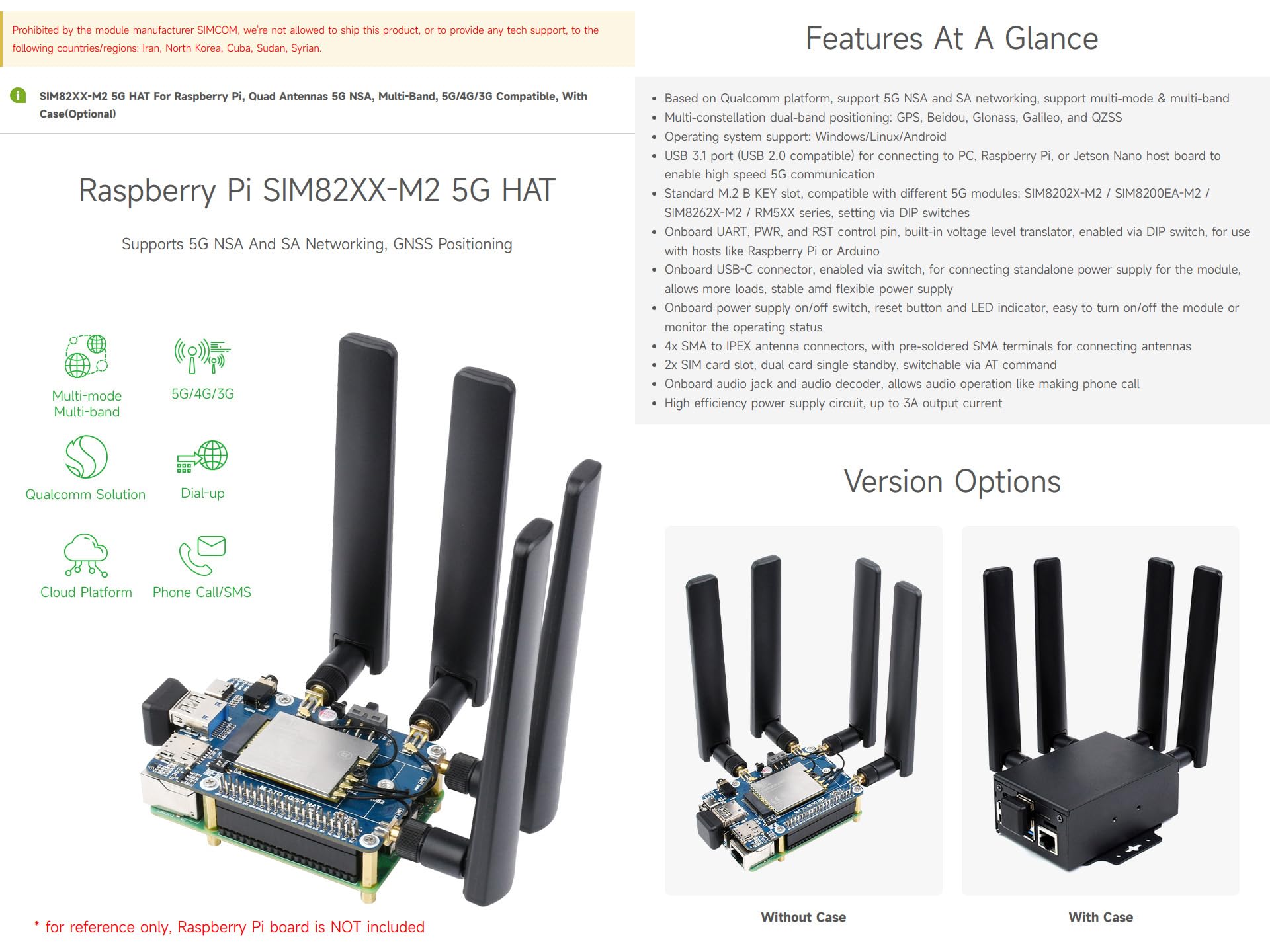

•Based on Qualcomm platform, support 5G NSA and SA networking, support multi-mode & multi-band. Multi-constellation dual-band positioning: GPS, Beidou, Glonass, Galileo, and QZSS
•Operating system support: Windows/Linux/Android. USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication
•Standard M.2 B KEY slot, compatible with different 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 series. Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
•Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply. Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
•4x SMA to IPEX antenna connectors, with pre-soldered SMA terminals for connecting antennas. 2x SIM card slot, dual card single standby, switchable via AT command. Onboard audio jack and audio decoder, allows audio operation like making phone call. High efficiency power supply circuit, up to 3A output current
