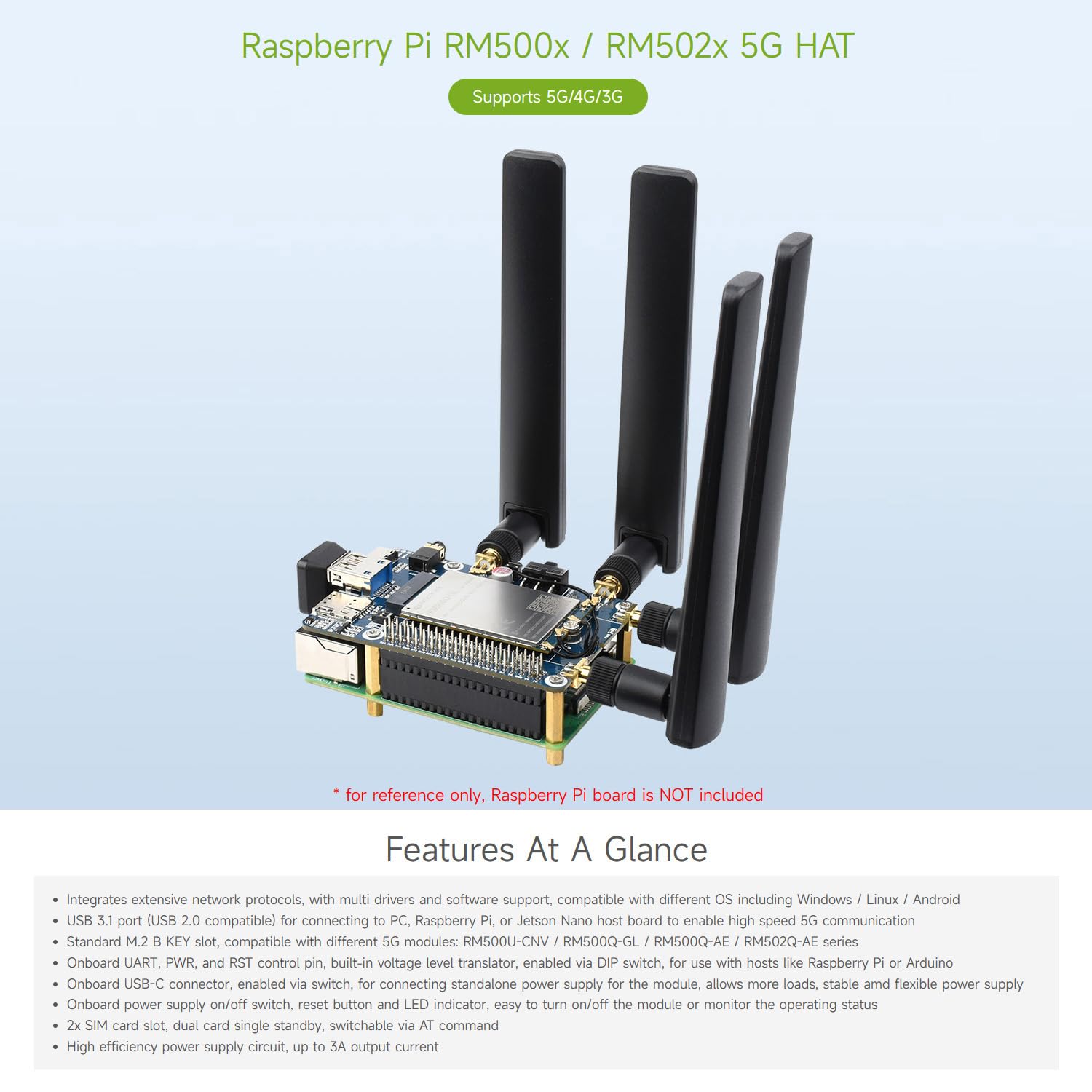

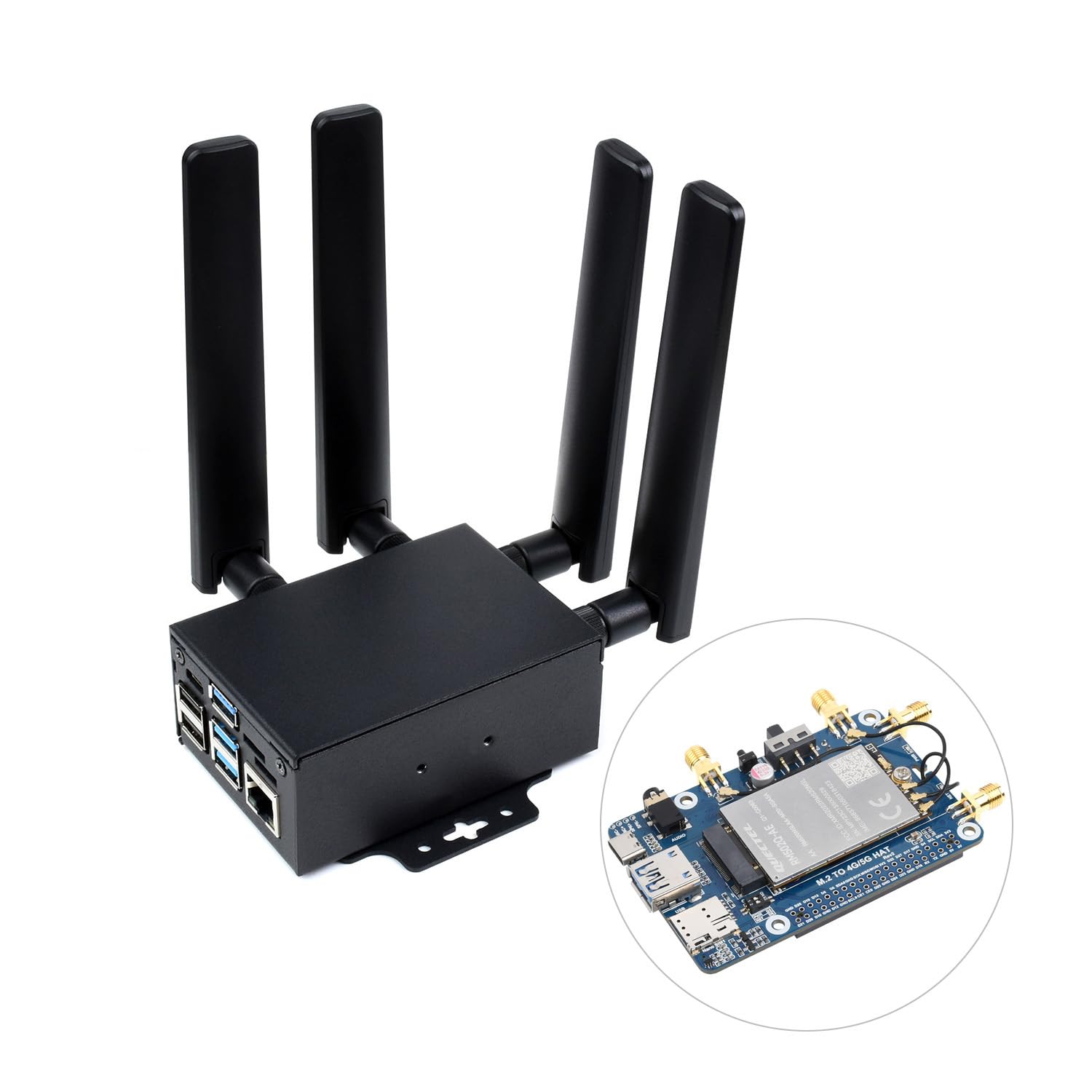

Waveshare RM502Q-AE 5G HAT for Raspberry Pi Quad Supports 5G/4G/3G Antennas LTE-A with Multi Band with Case
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Integrates extensive network protocols, with multi drivers and software support, compatible with different OS including Windows / Linux / Android

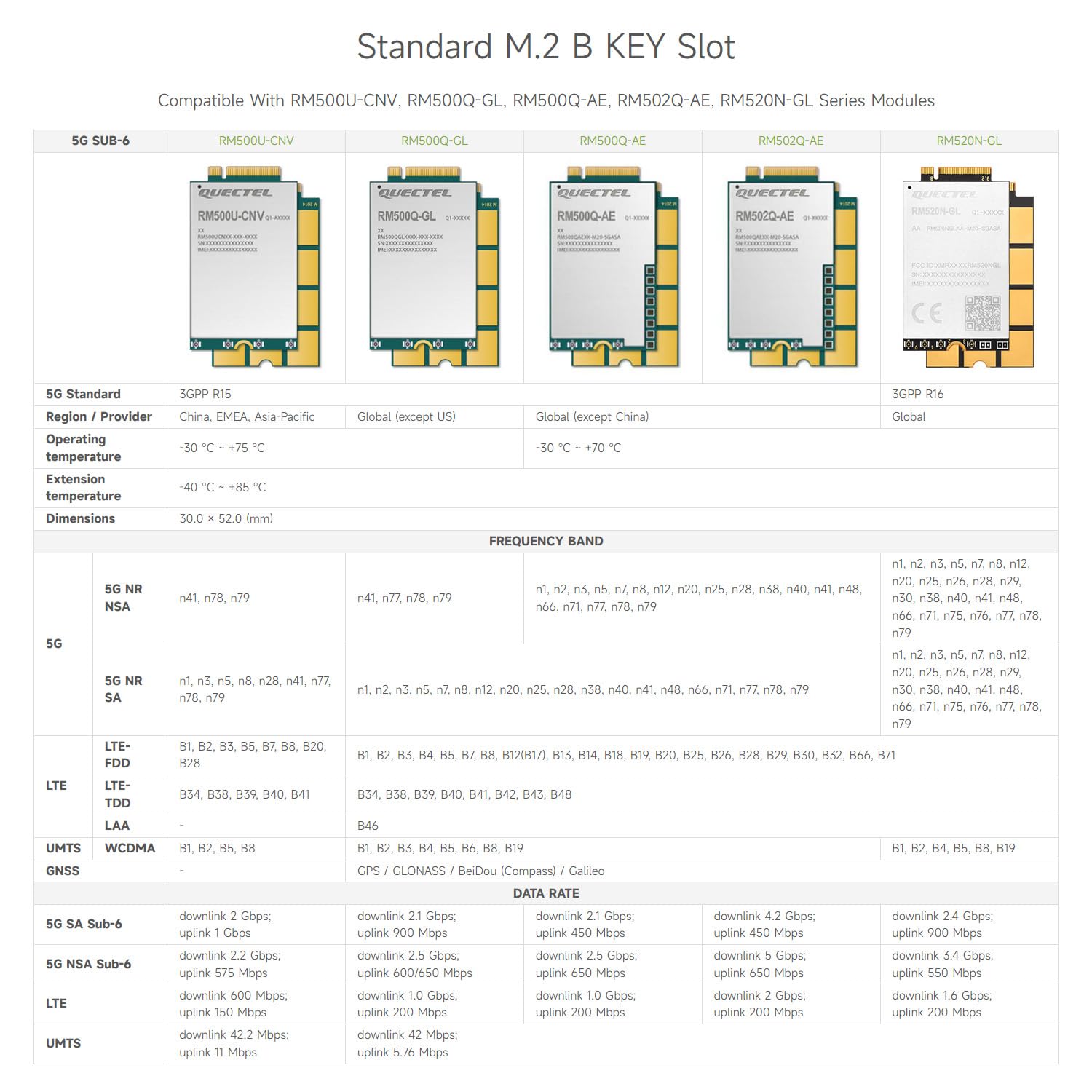

•USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication. Standard M.2 B KEY slot, compatible with different 5G modules: RM500U-CN / RM500Q-GL / RM500Q-AE / RM502Q-AE series
•Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
•Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
•Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status. 2x SIM card slot, dual card single standby, switchable via AT command. High efficiency power supply circuit, up to 3A output current
