waveshare PCIe FFC Connector to Standard PCIe x1 Slot Adapter Expansion Board (C) for Raspberry Pi,Compatible with PCIe X1, X4, X8, and X16 Interface Devices
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

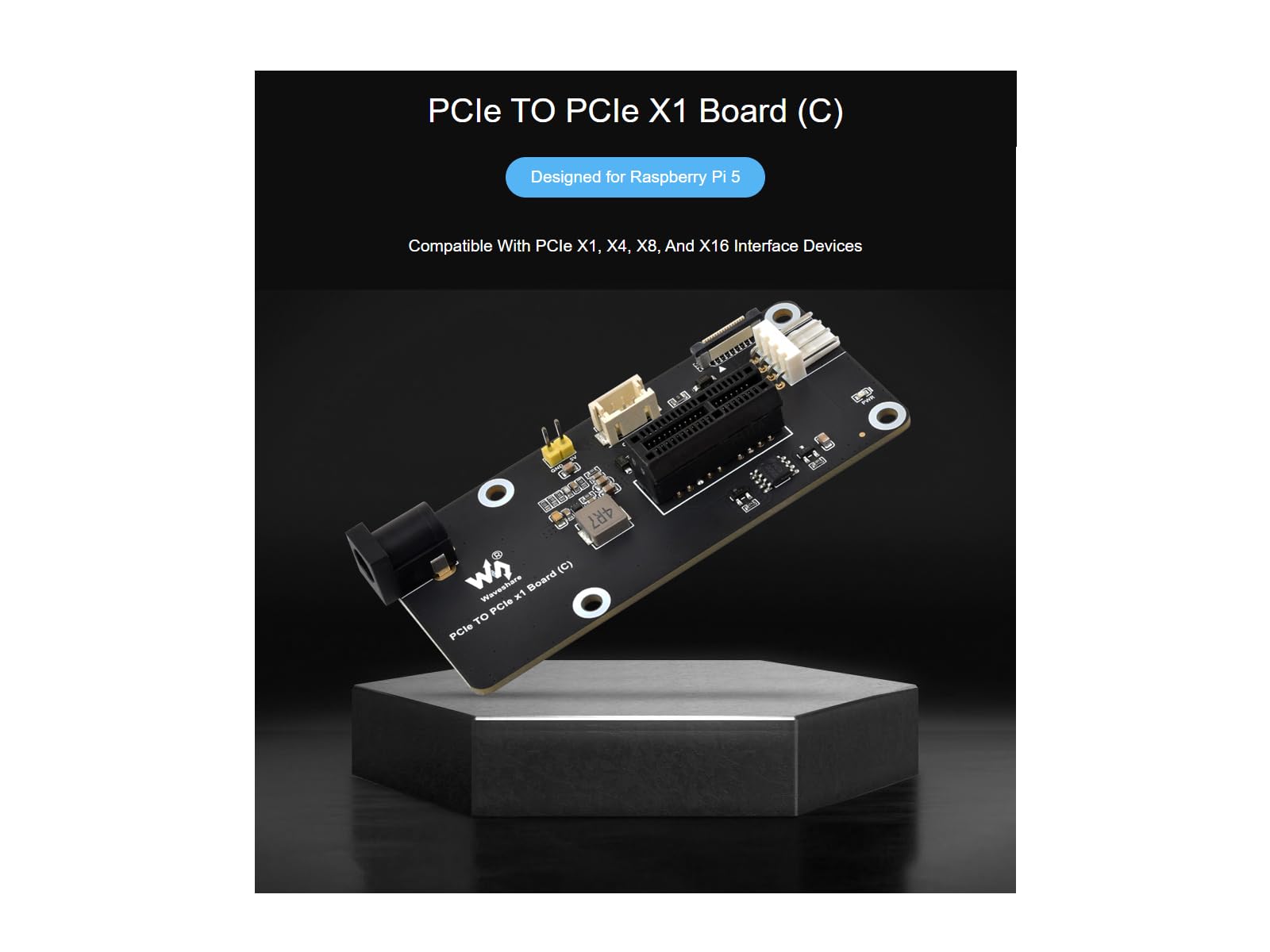

•PCIe TO PCIe X1 Board (C) Designed for Raspberry Pi 5
•Compatible With PCIe X1, X4, X8, And X16 Interface Devices

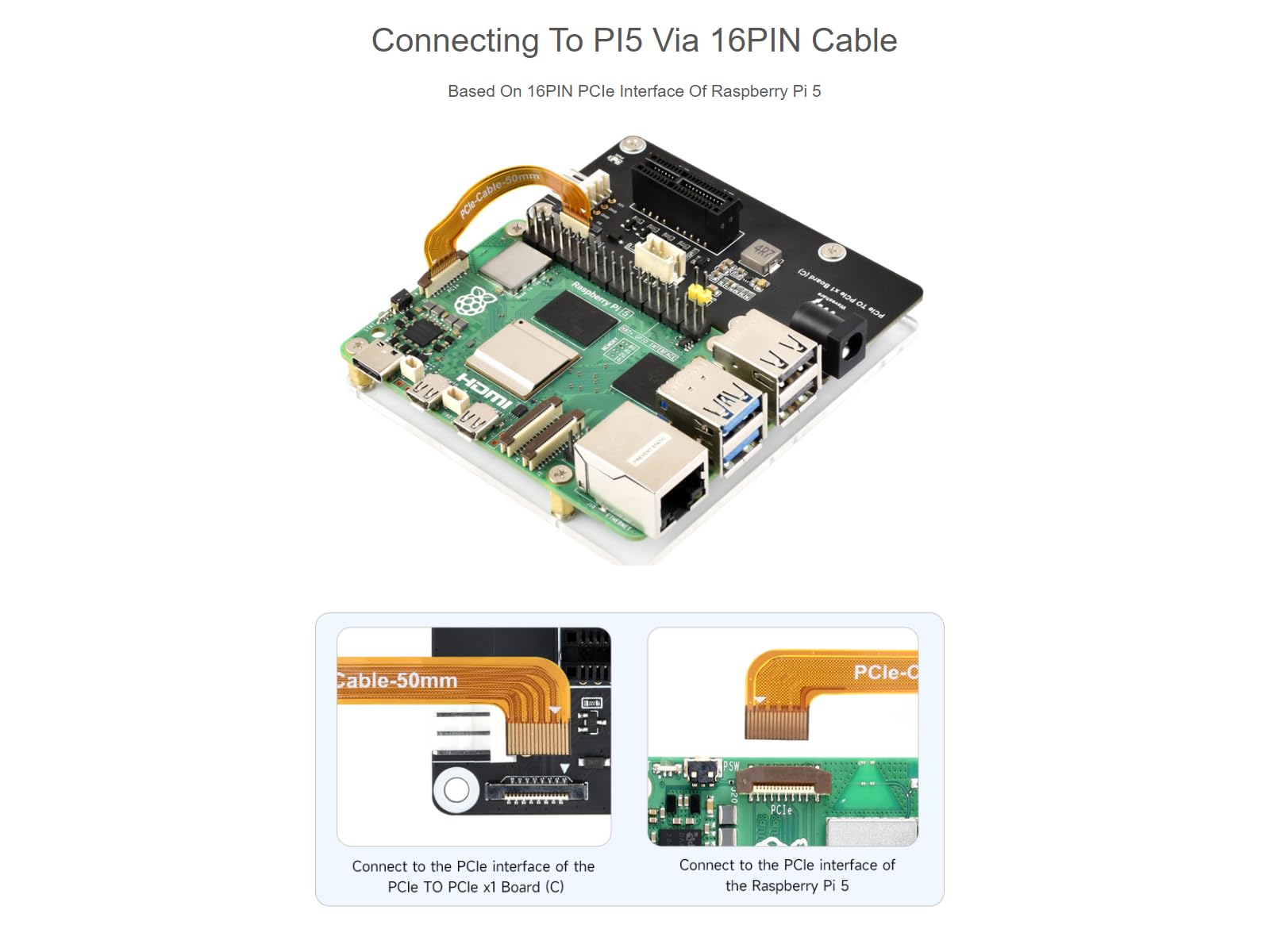

•Connecting To PI5 Via 16PIN Cable.Based On 16PIN PCIe Interface Of Raspberry Pi 5
•Applicable Interfaces.Onboard PCIe X1 Slot, With Opening For Connecting With PCIe X1 X4 X8 X16 Devices

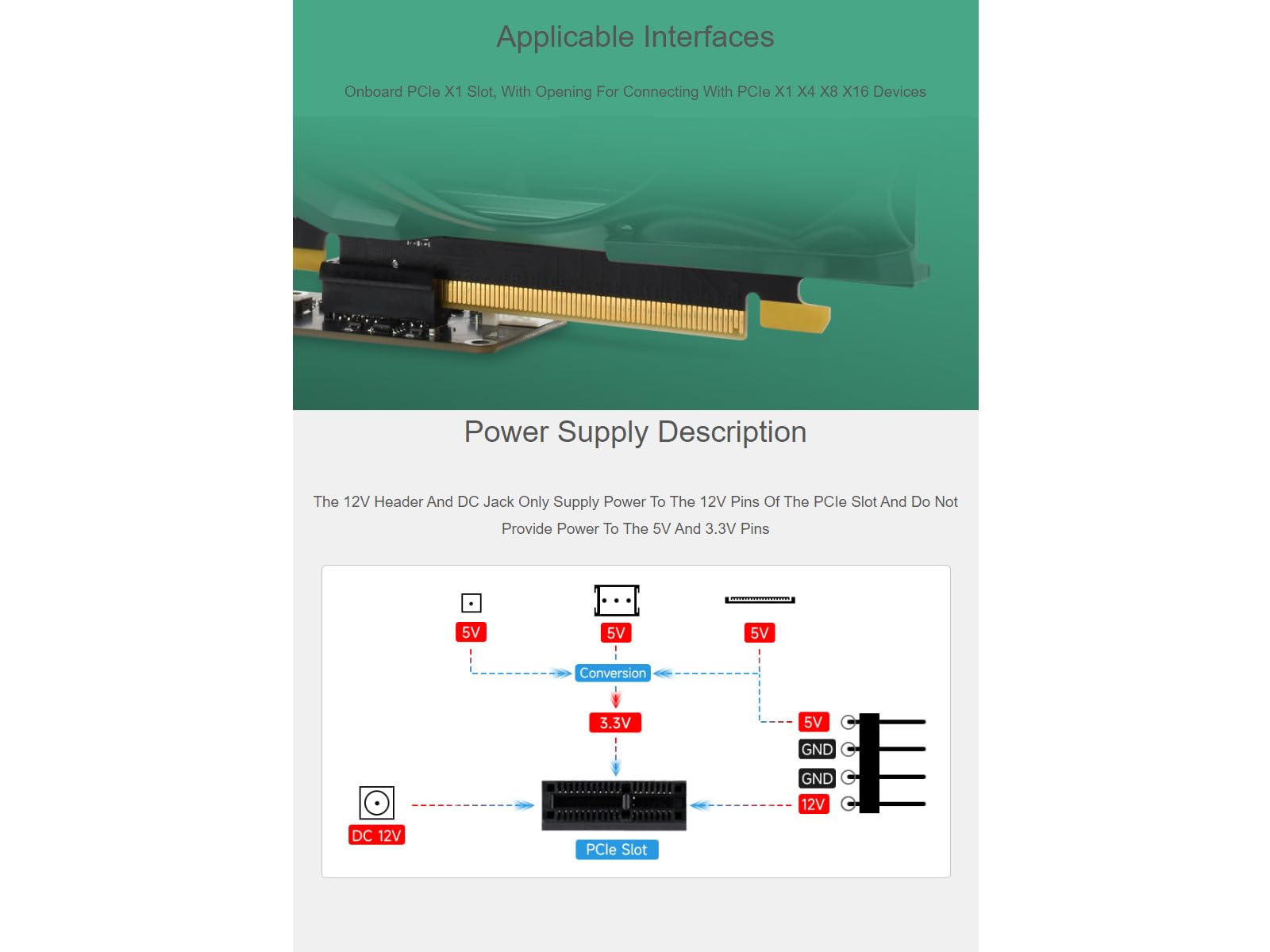

•Power Supply Description.The 12V Header And DC Jack Only Supply Power To The 12V Pins Of The PCIe Slot And Do Not Provide Power To The 5V And 3.3V Pins
