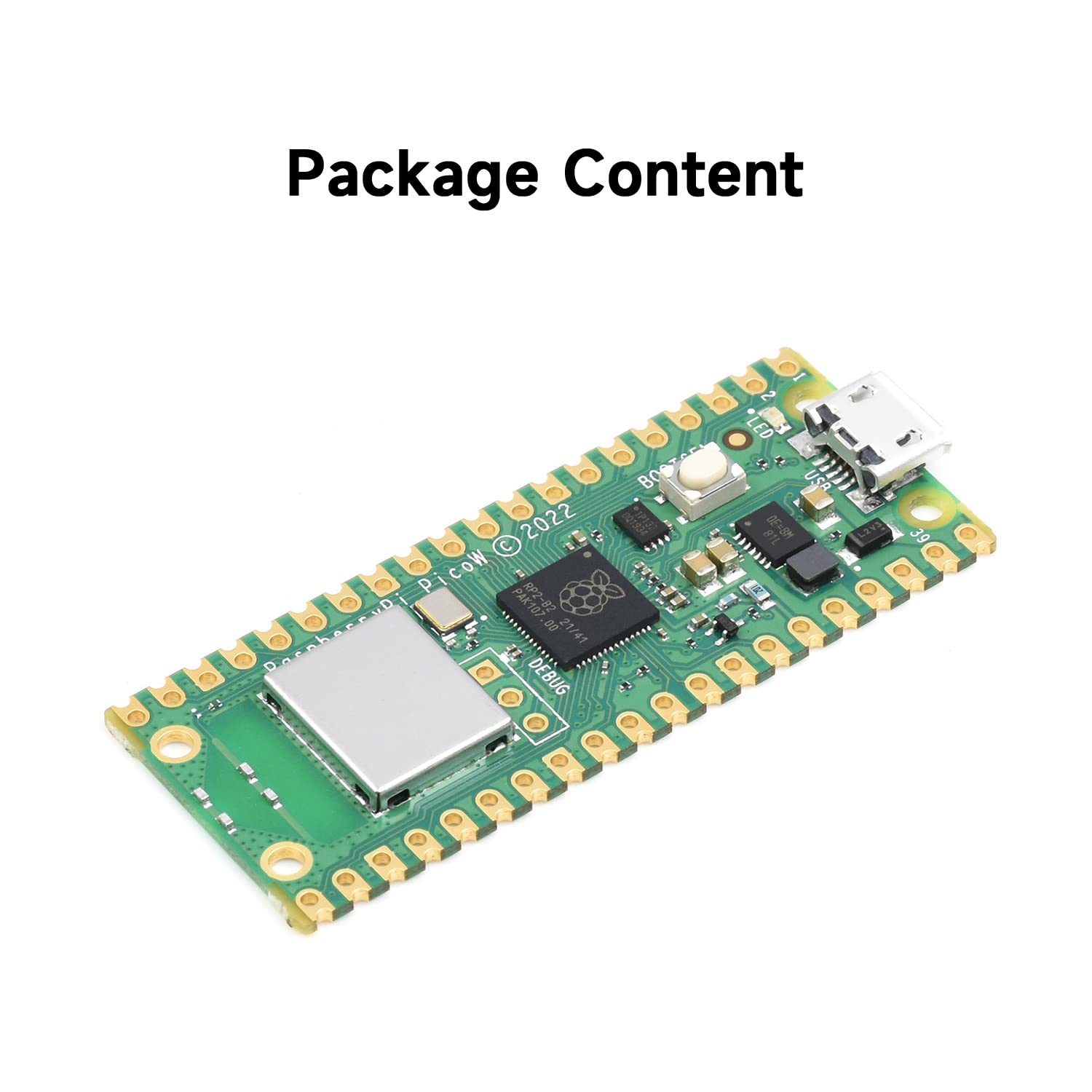

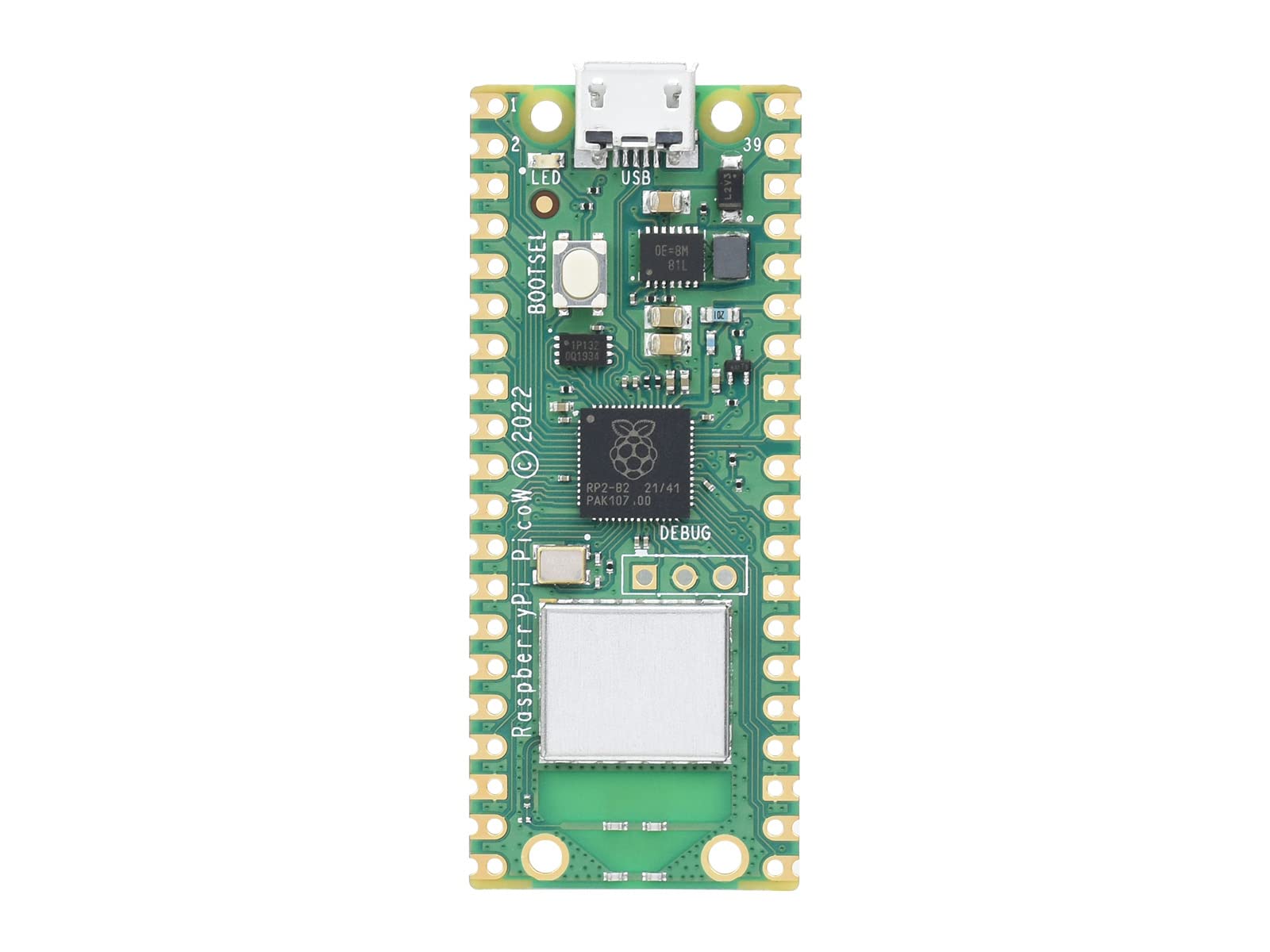

Waveshare Microcontroller Board Compatible with Raspberry Pi Pico W Based On Official RP2040 Dual-Core Processor
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
•Onboard Infineon CYW43439 wireless chip, supports 2.4/5 GHZ Wi-Fi 4. 264KB of SRAM, and 2MB of on-board Flash memory
•Castellated module allows soldering direct to carrier boards. USB 1.1 with device and host support. Low-power sleep and dormant modes
•Drag-and-drop programming using mass storage over USB. 26 × multi-function GPIO pins. 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
•Accurate clock and timer on-chip. Temperature sensor. Accelerated floating-point libraries on-chip. 8 × Programmable I/O (PIO) state machines for custom peripheral support
