Waveshare Luckfox PicoKVM Ext Expansion Board, Compatible with PCIe ×1 / ×4 / ×8 / ×16 Slots, Adapting Motherboard USB Ports, Works with Luckfox PicoKVM for Remote Power Management
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

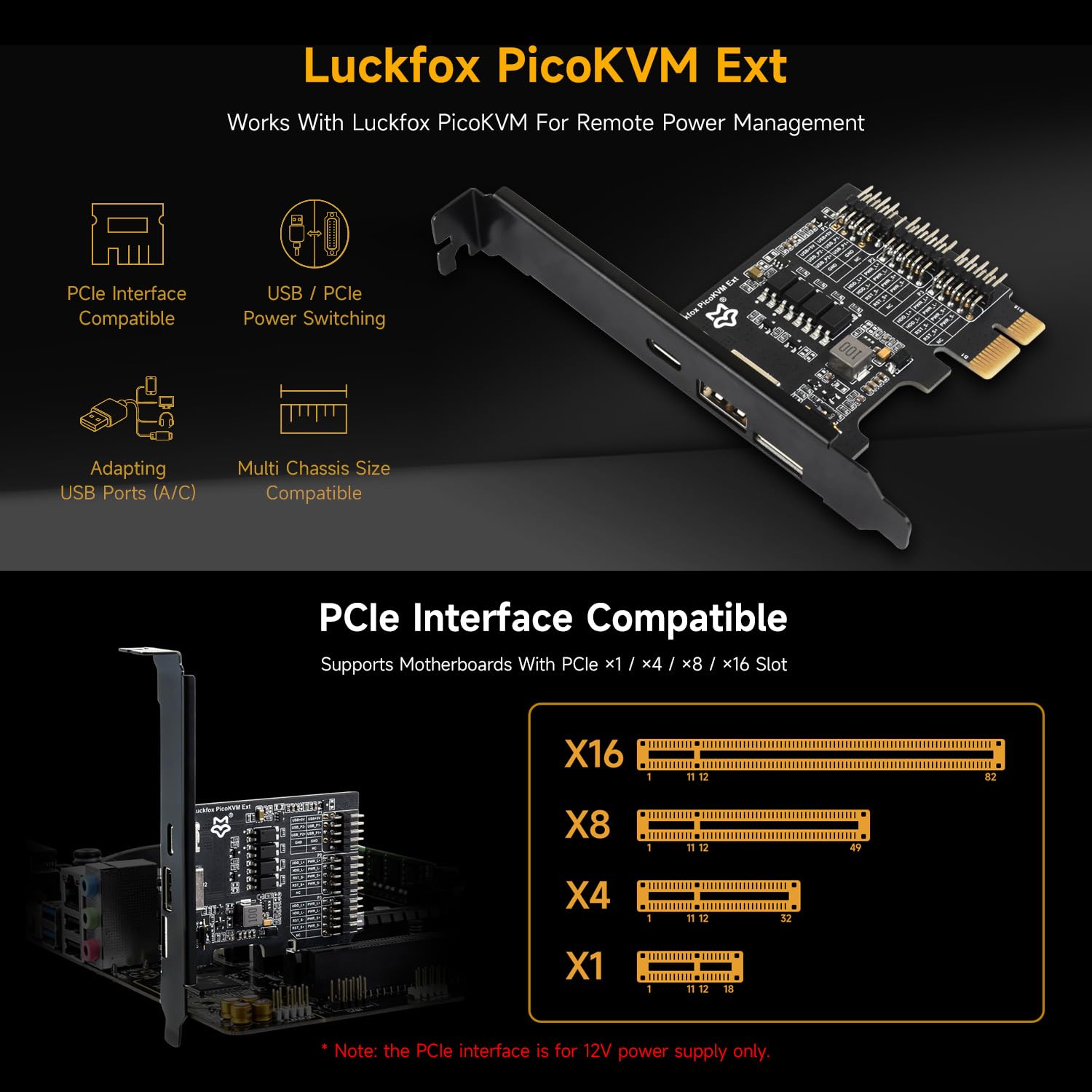

•PCIe Slot Compatibility: Supports PCIe ×1/×4/×8/×16 slots on motherboards, with the PCIe interface used exclusively for 12V power supply.

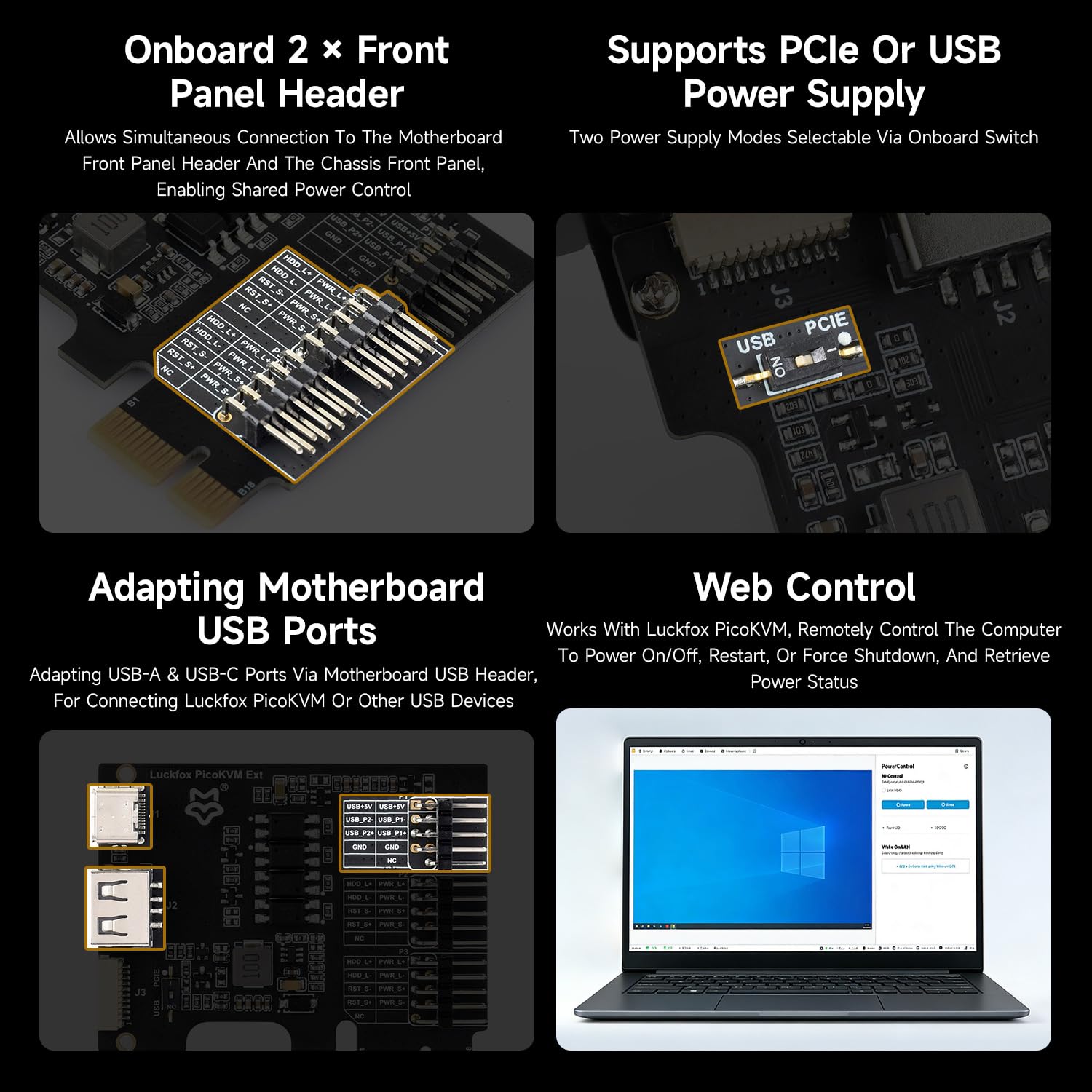

•Dual Power Supply Modes: Offers selectable power input via an onboard switch, supporting both PCIe and USB power supply methods for flexible deployment.

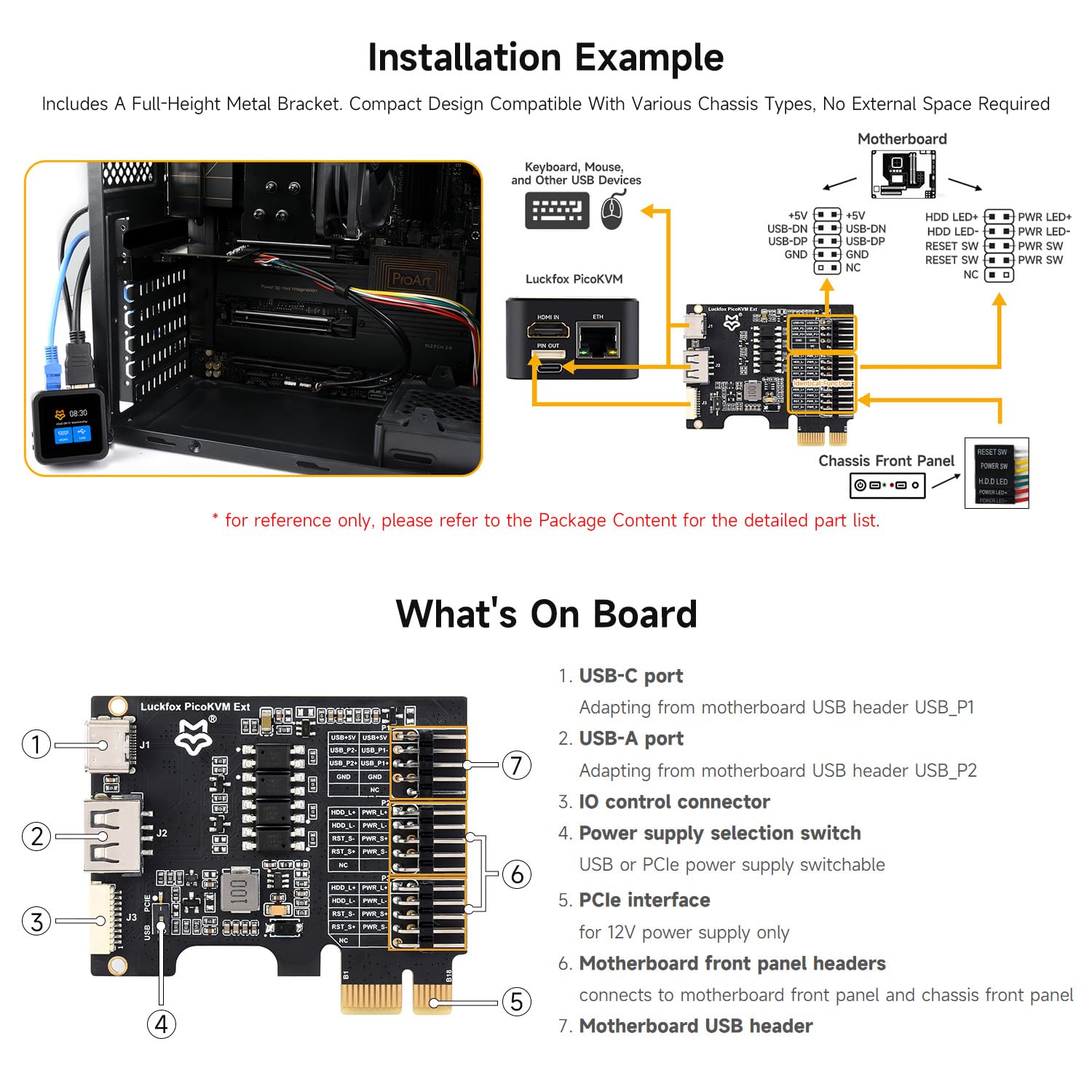

•Dual Front-Panel Headers: Equips 2 front-panel headers to connect both the motherboard and chassis front panels simultaneously, enabling shared power control functions.
•USB Port Expansion: Breaks out motherboard USB headers into USB-A and USB-C ports, allowing connection to Luckfox PicoKVM or other USB devices easily.
•Remote Power Management: Works with Luckfox PicoKVM to enable web-based remote control, supporting operations like power on/off, restart, force shutdown, and power status retrieval.
