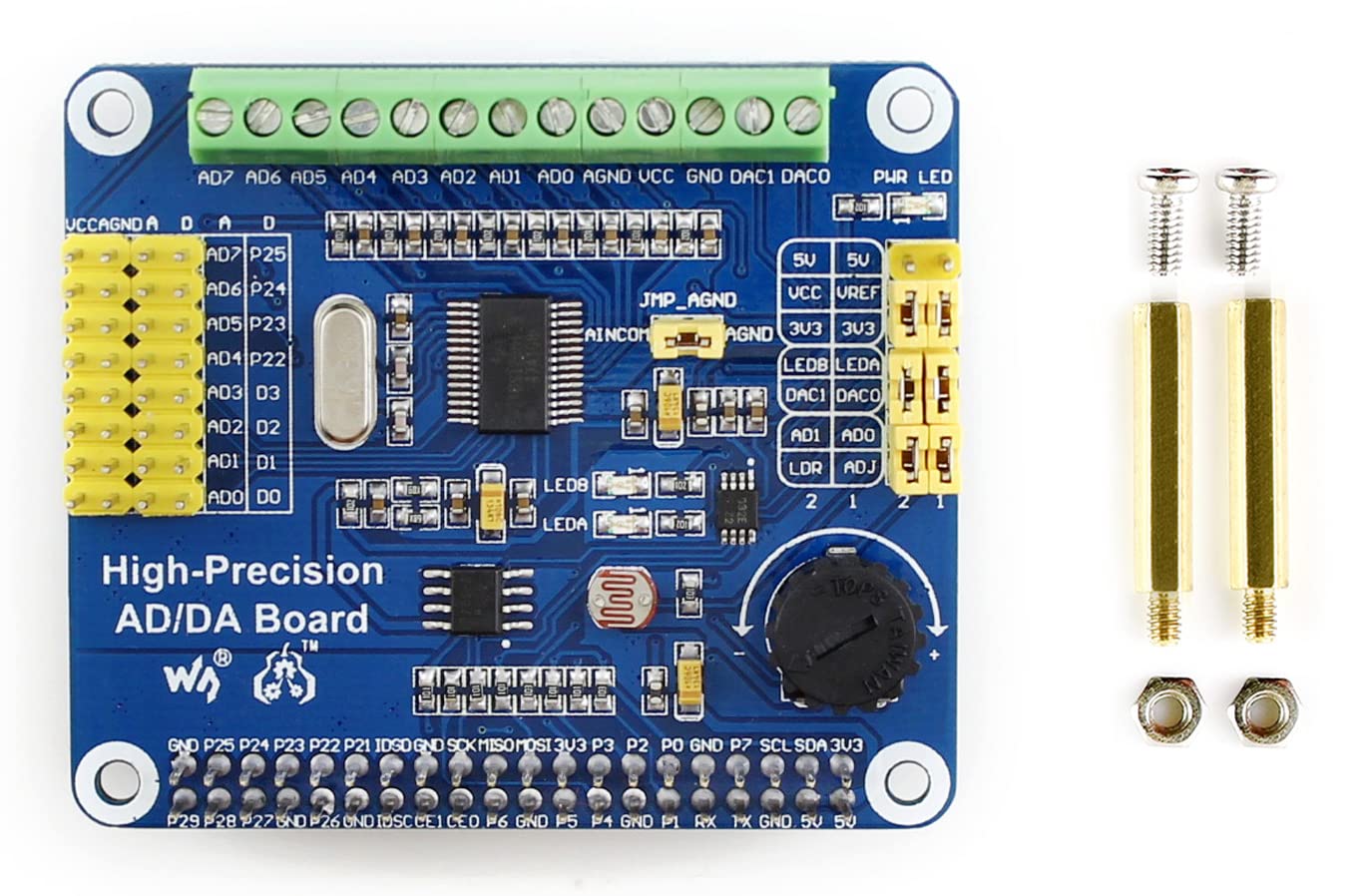

Waveshare High-Precision AD/DA Expansion Board for Raspberry Pi Series Boards/Jetson Nano Development

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

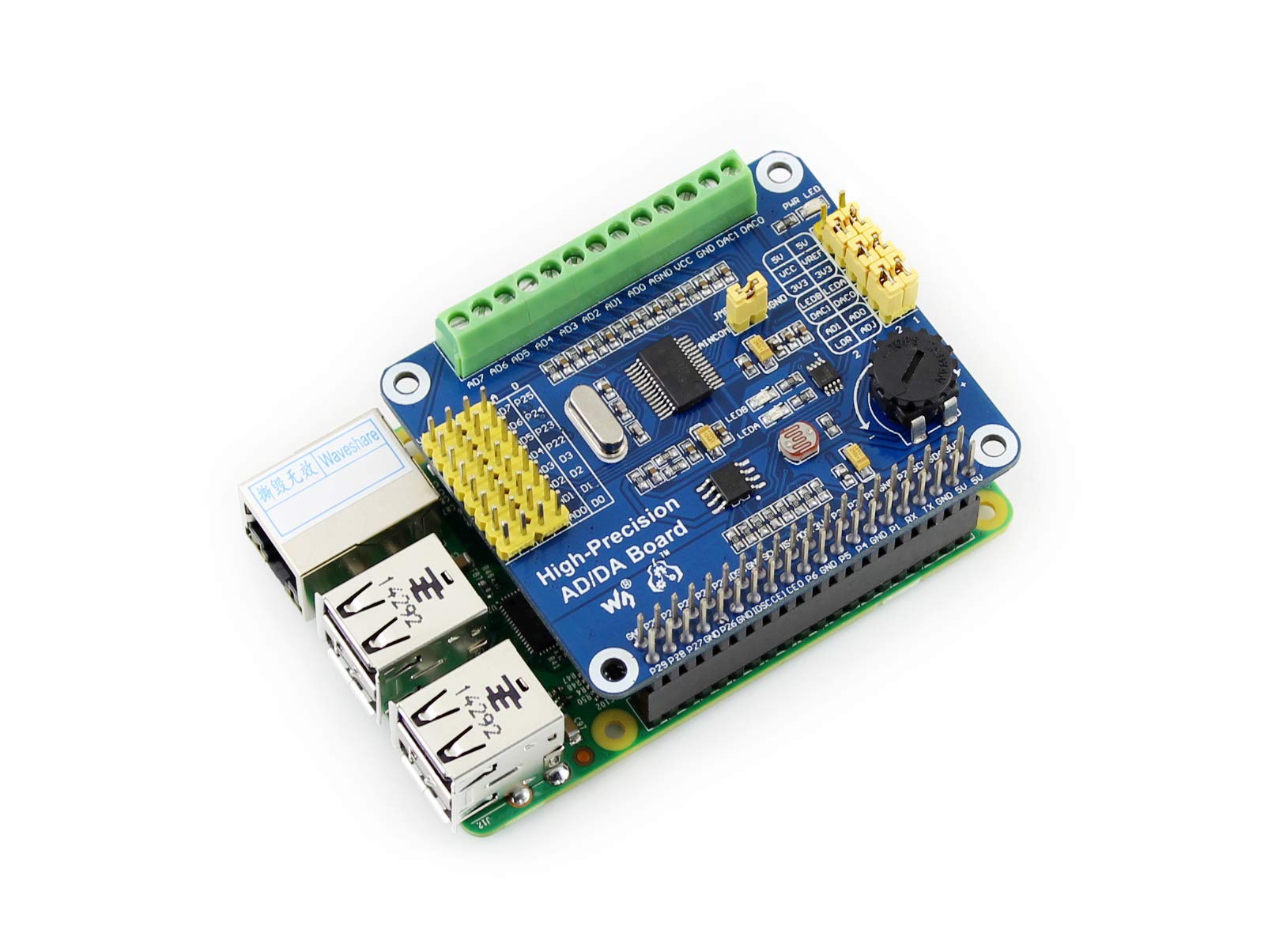

•With Raspberry Pi standard 40PIN GPIO extension header, supports Raspberry Pi series boards/Jetson Nano
•Onboard ADS1256 chip, 8-channel 24-bit high-precision ADC (4-channel differential input), 30ksps sampling rate
•Onboard DAC8552 chip, 2-channel 16-bit high-precision DAC; built-in AD/DA detection circuit, easy to observe experimental phenomena
•Onboard input interface via pinheaders, for connecting analog signal(The pinout is compatible with Waveshare sensor interface standard, easy to connect various analog sensor modules)
•On-board AD/DA input and output interface, can access analog signal and digital signal, convenient for use in various occasions

Waveshare High-Precision AD/DA Expansion Board for Raspberry Pi Series Boards/Jetson Nano Development

Waveshare High-Precision AD/DA Expansion Board for Raspberry Pi Series Boards/Jetson Nano Development
