Waveshare CAN FD Protocol Converter, CAN FD to ETH/RS232/RS485 Bidirectional Data Communication, Supports 5 Data Modes & CAN 2.0A/2.0B, Heartbeat and Registration Packets Support
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

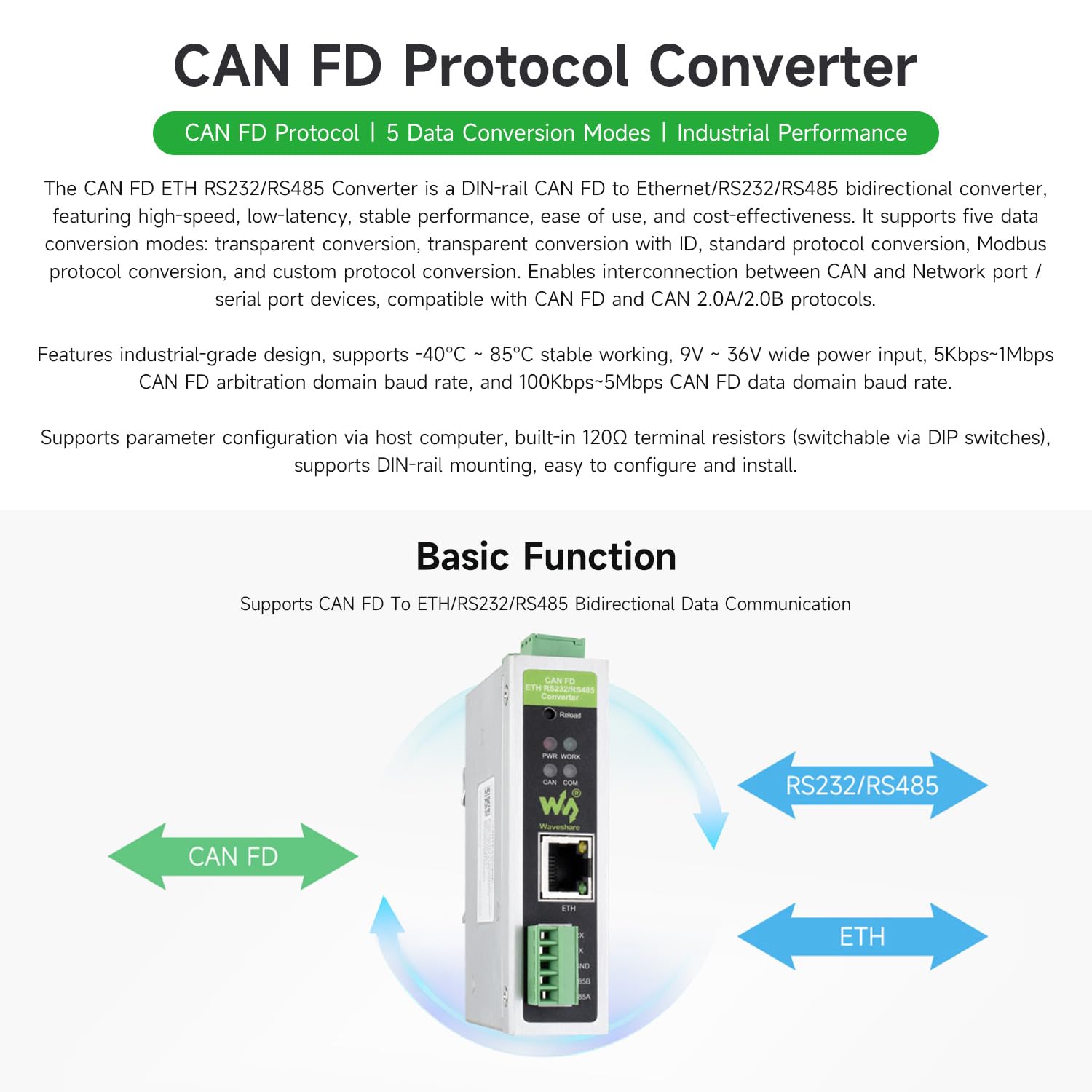

•Versatile Data Conversion: The CAN FD ETH RS232/RS485 Converter supports five data conversion modes, including transparent conversion, protocol conversion for Modbus and standard protocols, and custom protocol conversion, enabling seamless interconnection between CAN and Ethernet/serial port devices.
•High-Speed, Low-Latency Performance: Designed for high-speed, low-latency, and stable operation, this converter ensures reliable data transmission with minimal delay, making it ideal for industrial applications.
•Industrial-Grade Durability: With a wide operating temperature range of -40°C to 85°C and a robust design, the converter is built to withstand challenging environments, ensuring long-term, reliable performance.

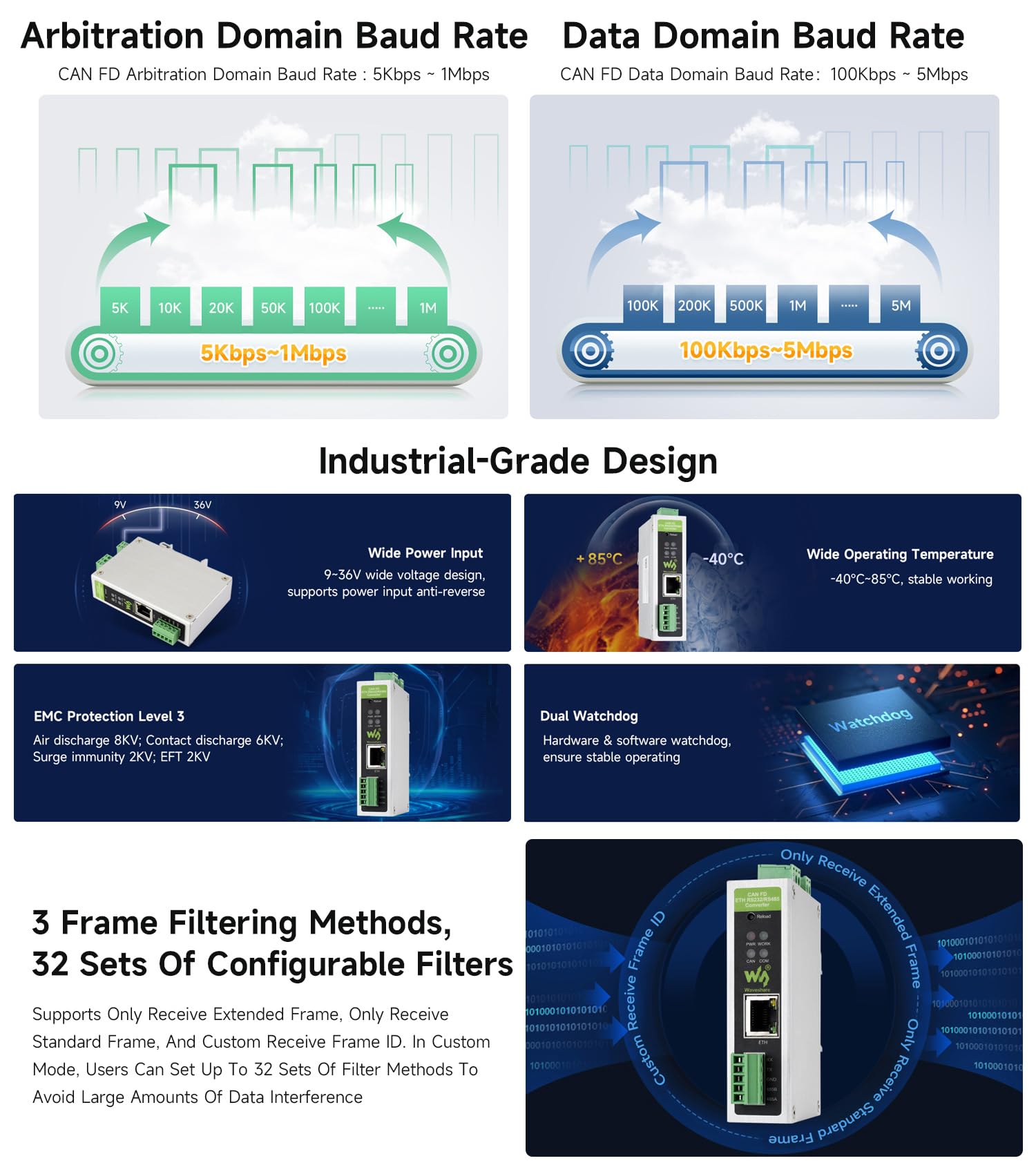

•Flexible Power & Baud Rate Options: The device supports a wide power input range (9V ~ 36V) and offers variable CAN FD baud rates (5Kbps~1Mbps for arbitration domain, 100Kbps~5Mbps for data domain), providing flexibility for different use cases.
•Easy Configuration & Installation: Supports parameter configuration via host computer, includes built-in 120Ω terminal resistors (switchable via DIP switches), and is DIN-rail mountable for easy installation and setup in industrial control systems.
