waveshare for Arduino/Raspberry Pi/STM32, 1.47inch Round LCD Display Module, 172x320 Pixel 262K RGB Colors IPS Screen SPI Interface 3.3V / 5V Operating Voltage

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

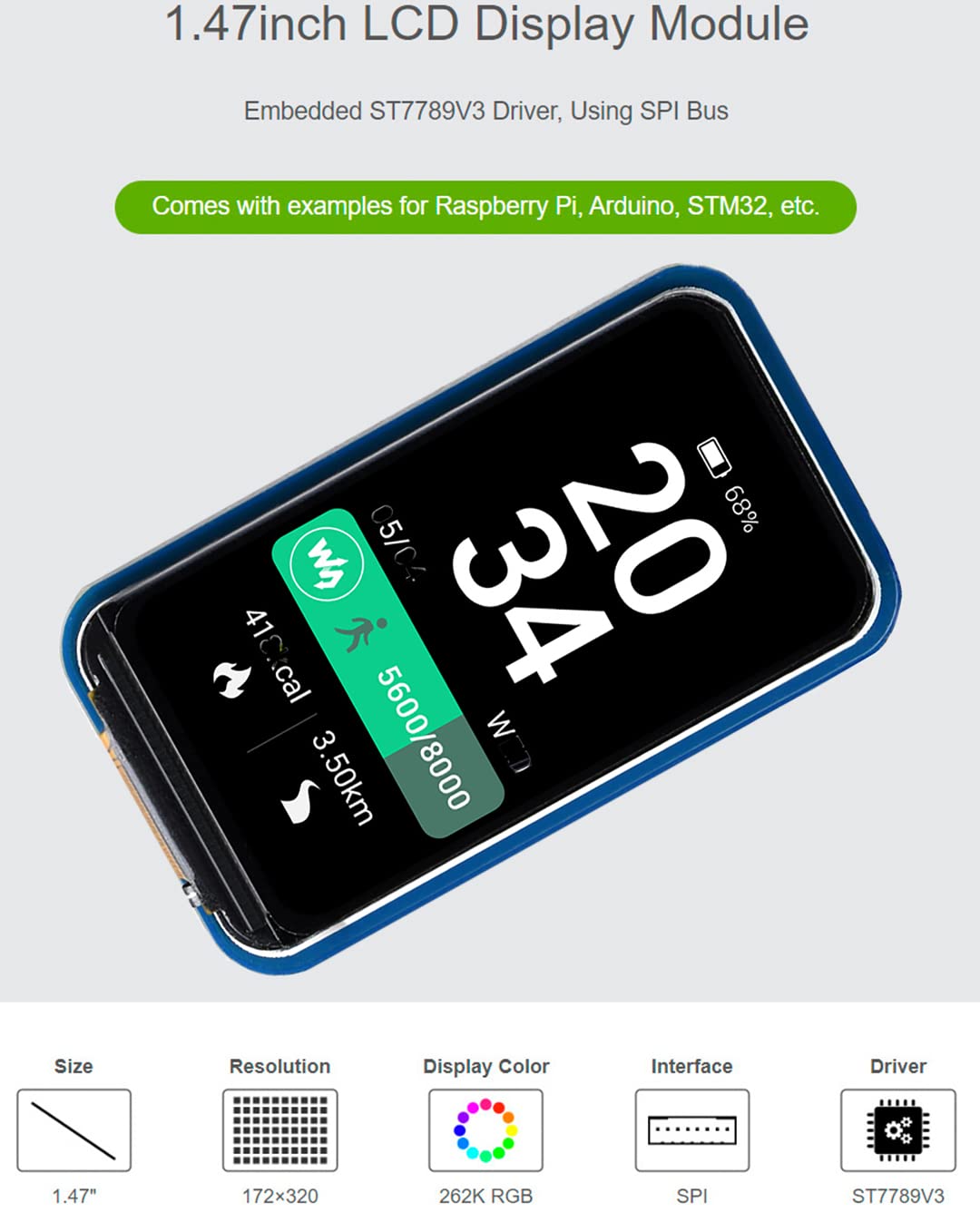

•1.47inch Round LCD Display Module,172×320 resolution, 262K RGB colors, clear and colorful displaying effect.
•Working voltage: 3.3V/5V (please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly)

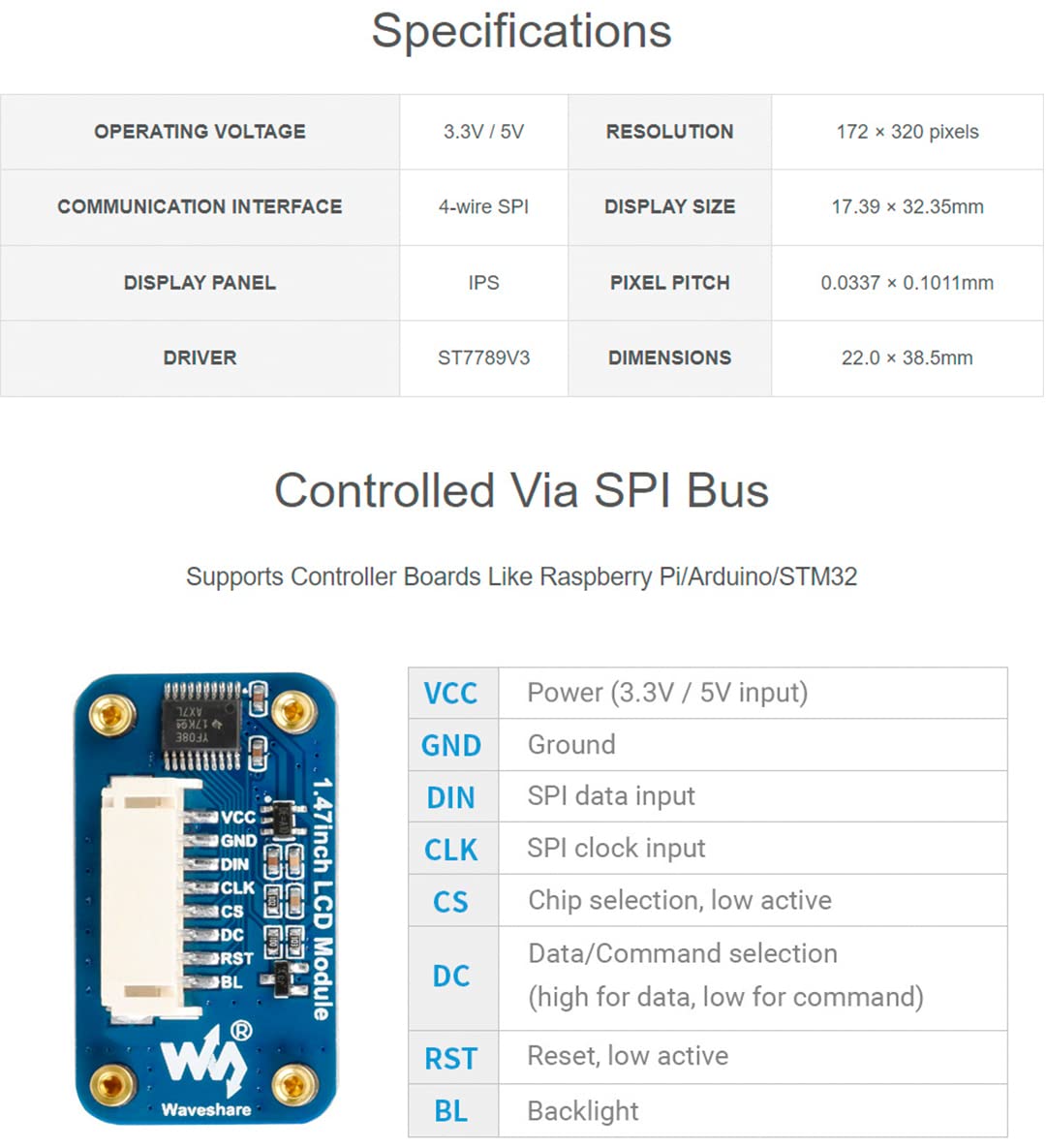

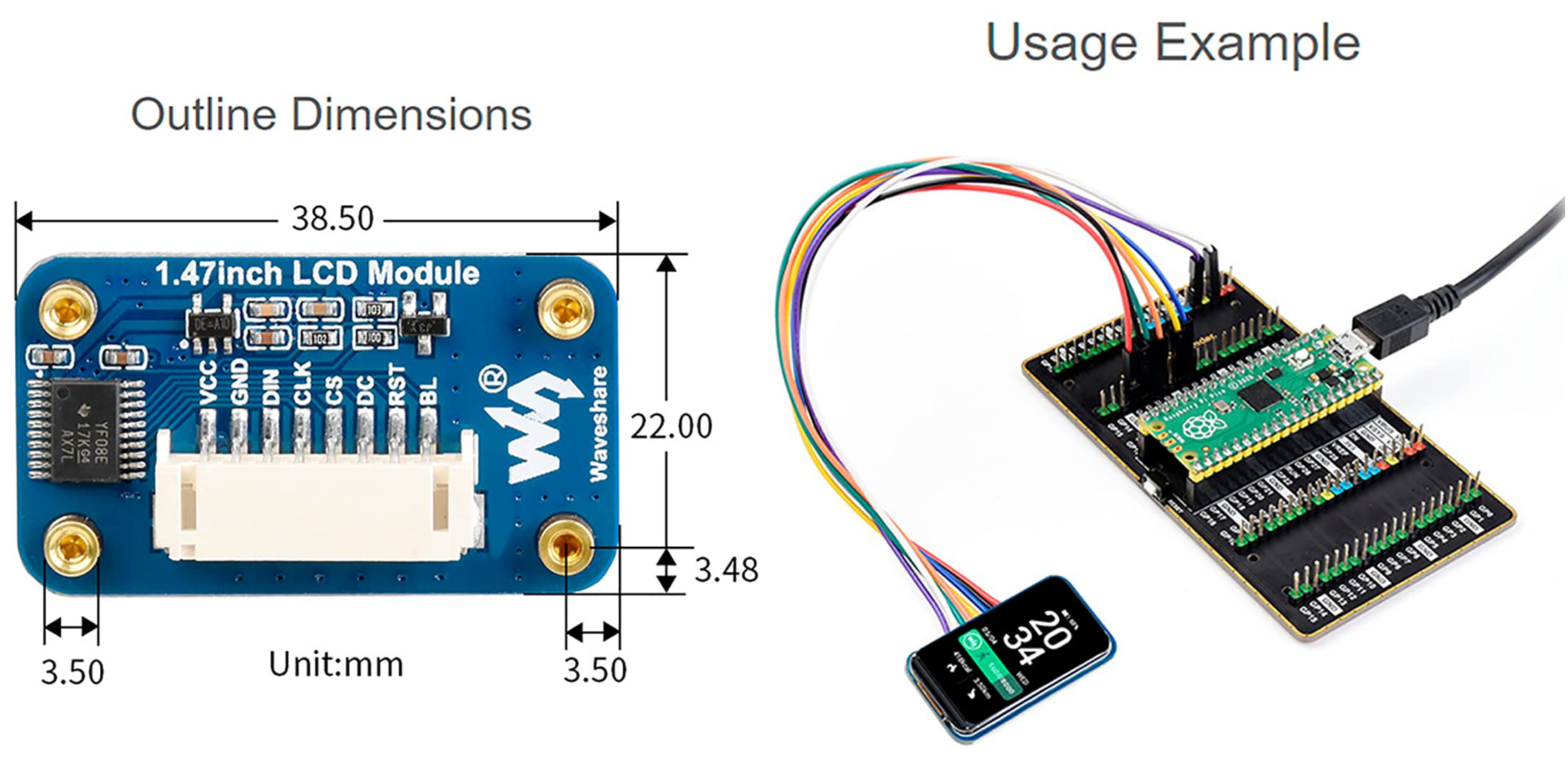

•Communication interface: SPI. Screen Type: IPS. Driver: ST7789V3. Resolution: 172(H)RGB x 320(V). Display size: 17.39 x 32.35 mm. Pixel pitch: 0.0337(H) x 0.1011(V) mm. Product size: 22.0 x 38.5 mm.

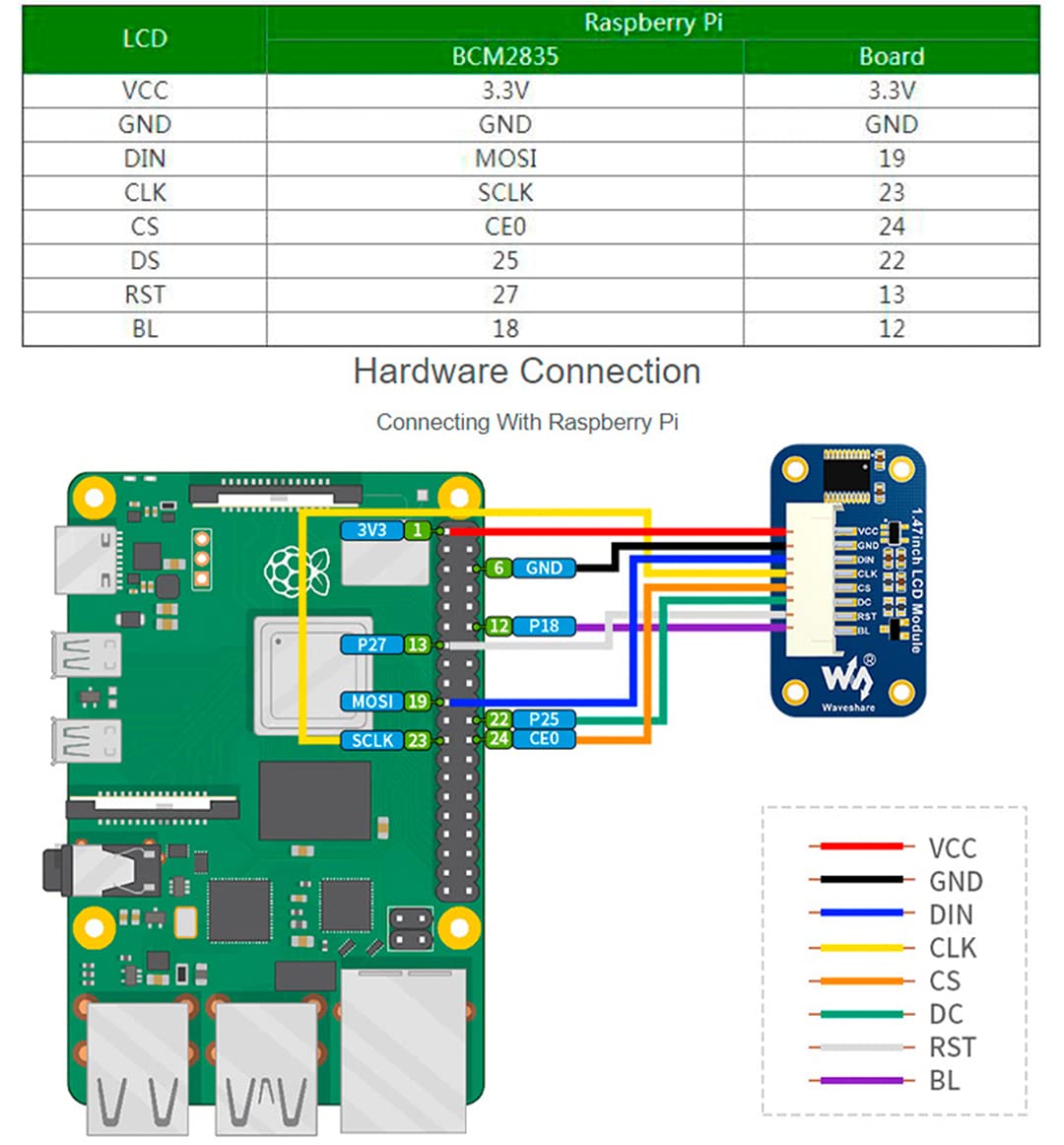

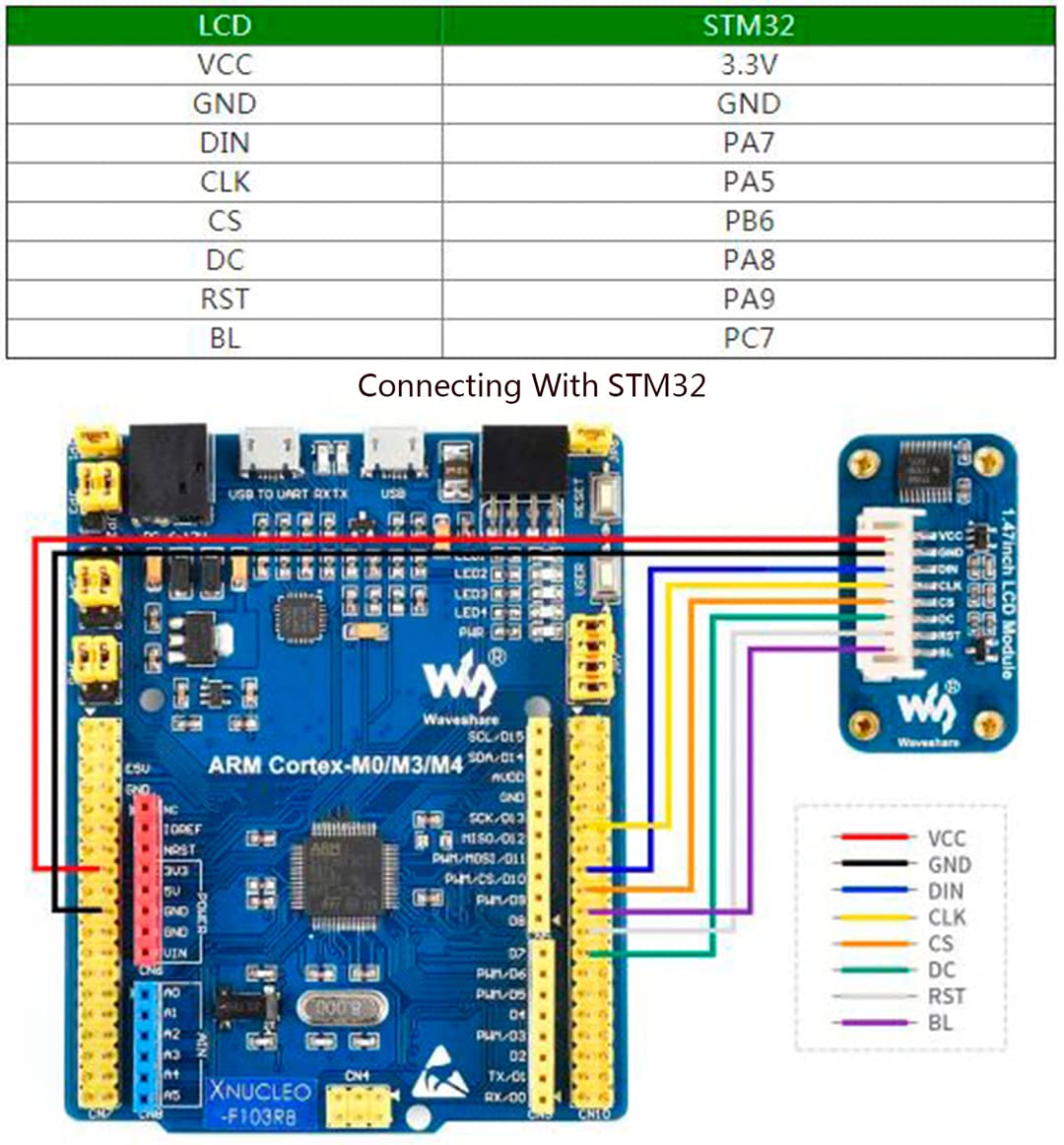

•SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32.
•Comes with development resources (examples for Raspberry Pi/Arduino/STM32): n9.cl/jdjmj
