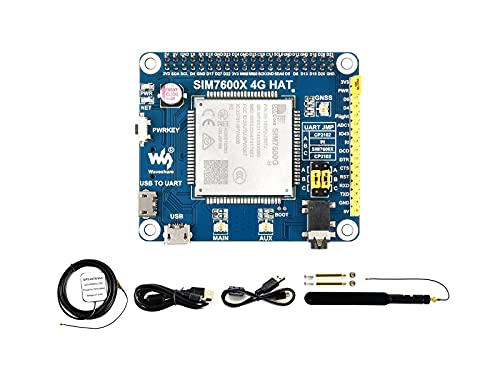

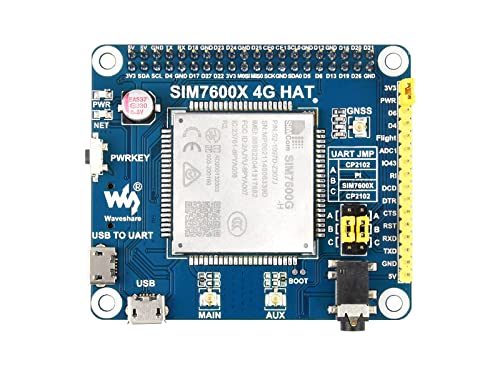

Waveshare 4G/3G/2G/GSM/GPRS/GNSS HAT, Compatible with Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, Global Band
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

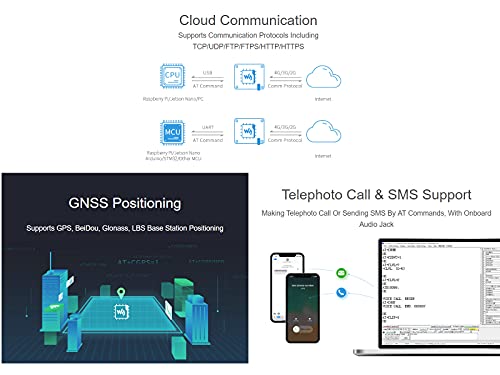

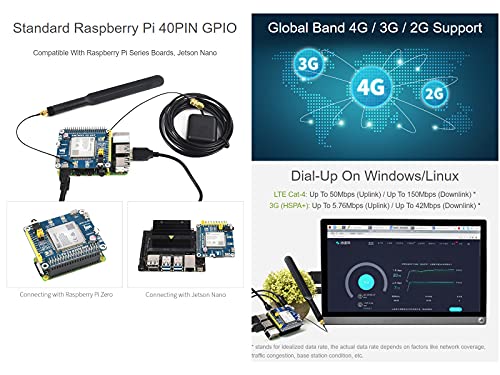

•Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning
•Onboard USB interface, to test AT Commands, get GPS positioning data, and so on Onboard CP2102 USB to UART converter, for serial debugging Breakout UART control pins, to connect with host boards like Arduino/STM32
•SIM card slot, supports 1.8V/3V SIM card TF card slot for storing data like files, messages, etc. Onboard audio jack and audio decoder for making telephone call
•2x LED indicators, easy to monitor the operating status Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper Baudrate: 300bps ~ 4Mbps (default: 115200bps)
•Autobauding baudrate: 9600bps ~ 115200bps Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
