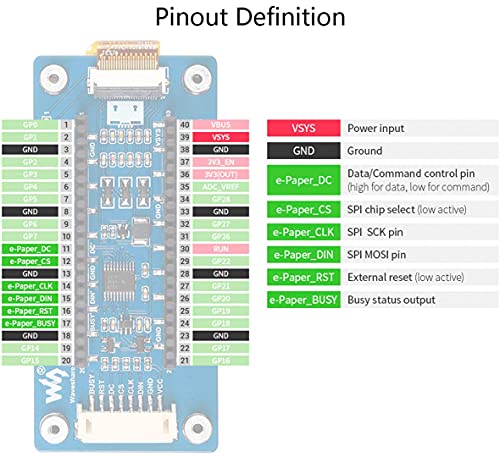

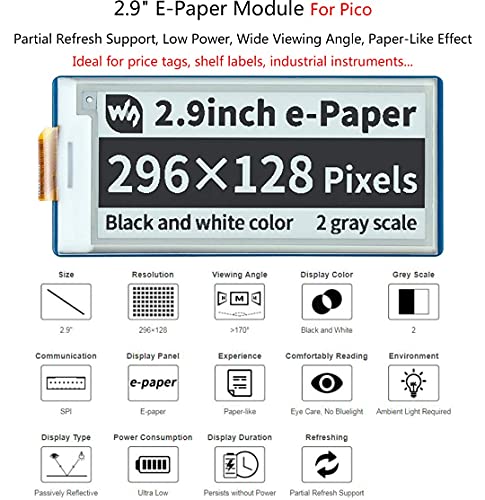

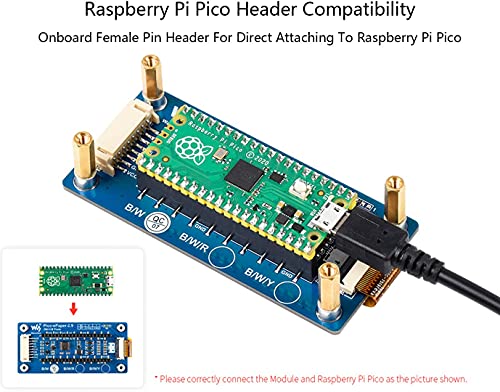

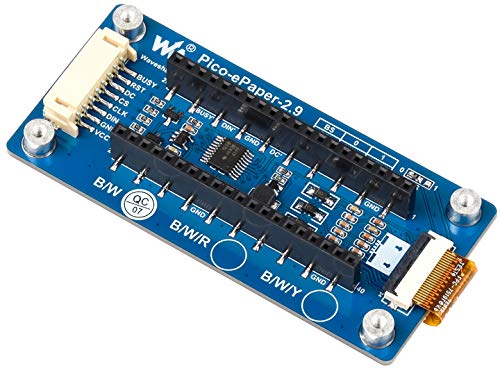

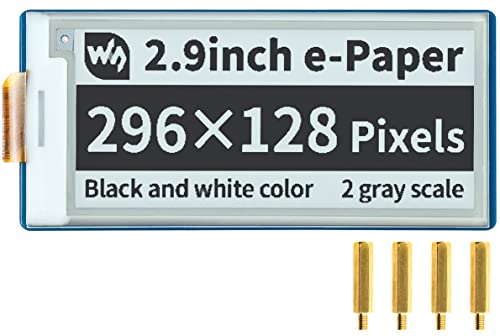

2.9inch e Paper E Ink Display Module for Raspberry Pi Pico, 296×128 pixels, Black White, SPI Interface Features No backlight, keeps displaying last content for a long time even when power down, Ultra low power consumption, basically power is only required for refreshing, SPI interface, requires minimal IO pins, Comes with development resources and manual (Raspberry Pi Pico CC++ and MicroPython examples) Specifications operating voltage: 3.3V5V grey scale: 2 interface: 3 wire SPI, 4 wire SPI partial refresh time: 0.3s outline dimensions: 82.00 × 38.00mm full refresh time : 2s display size: 66.89 × 29.05mm refresh power : 26.4mW(typ.) dot pitch : 0.226 × 0.227mm standby current: resolution : 296×128 pixels viewing angle : >170degree display color : black, white Raspberry Pi Pico header compatibility onboard female pin header for direct attaching to Raspberry Pi Pico ResourcesUser Manual https: .waveshare.comwikiPico ePaper 2.9 Package Content Pico ePaper 2.9 x1 Standoff pack x1
