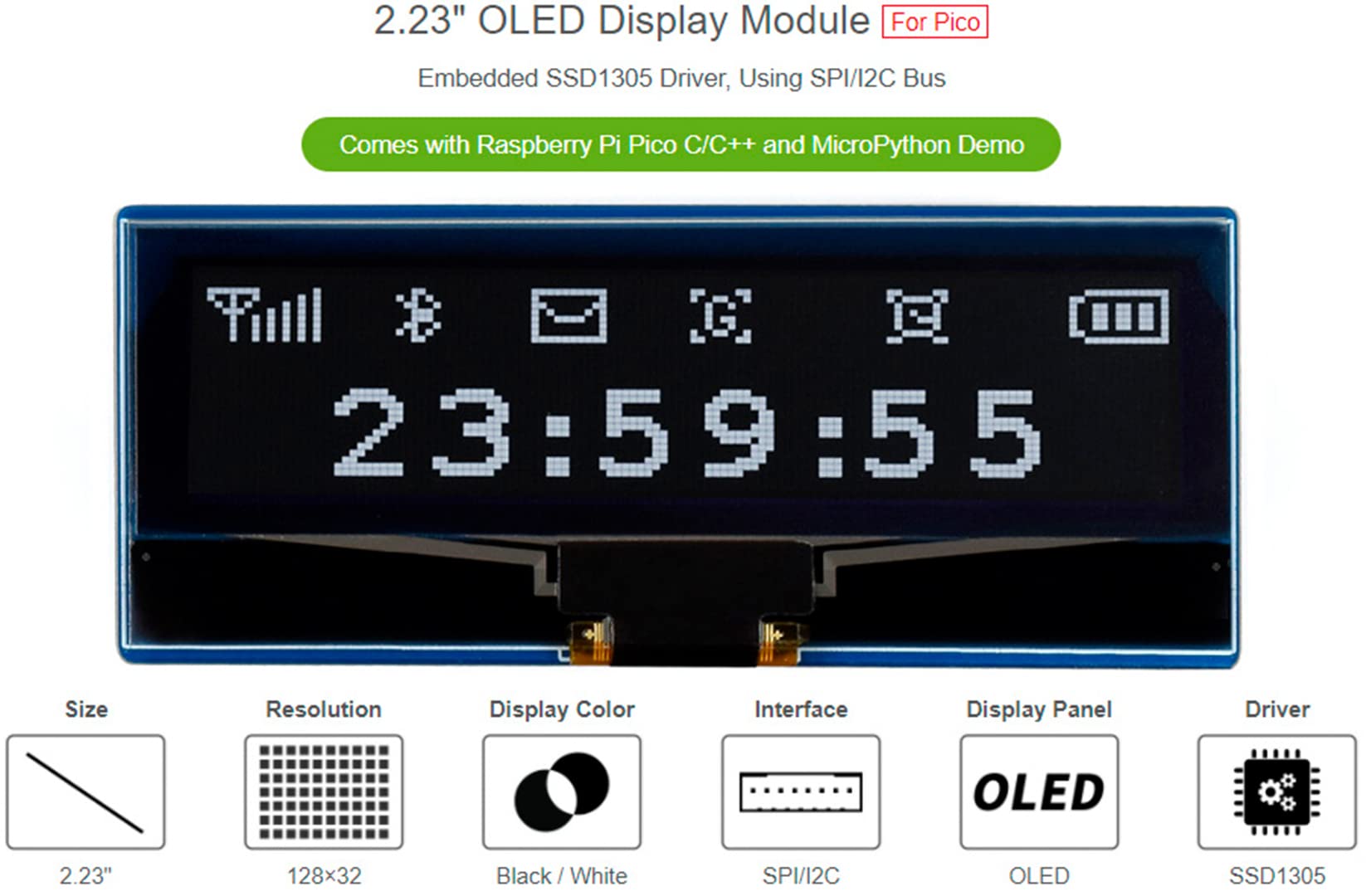

waveshare 2.23inch OLED Display Module for Raspberry Pi Pico, 128×32 Pixel,4-Wire SPI/I2C Interface, 3.3V/5V Operating Voltage

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

•2.23inch OLED Display Module for Raspberry Pi Pico series boards,128×32 pixels, embedded SSD1305 driver
•Adopts both 4-wire SPI and I2C interface, better compatibility, fast data rate

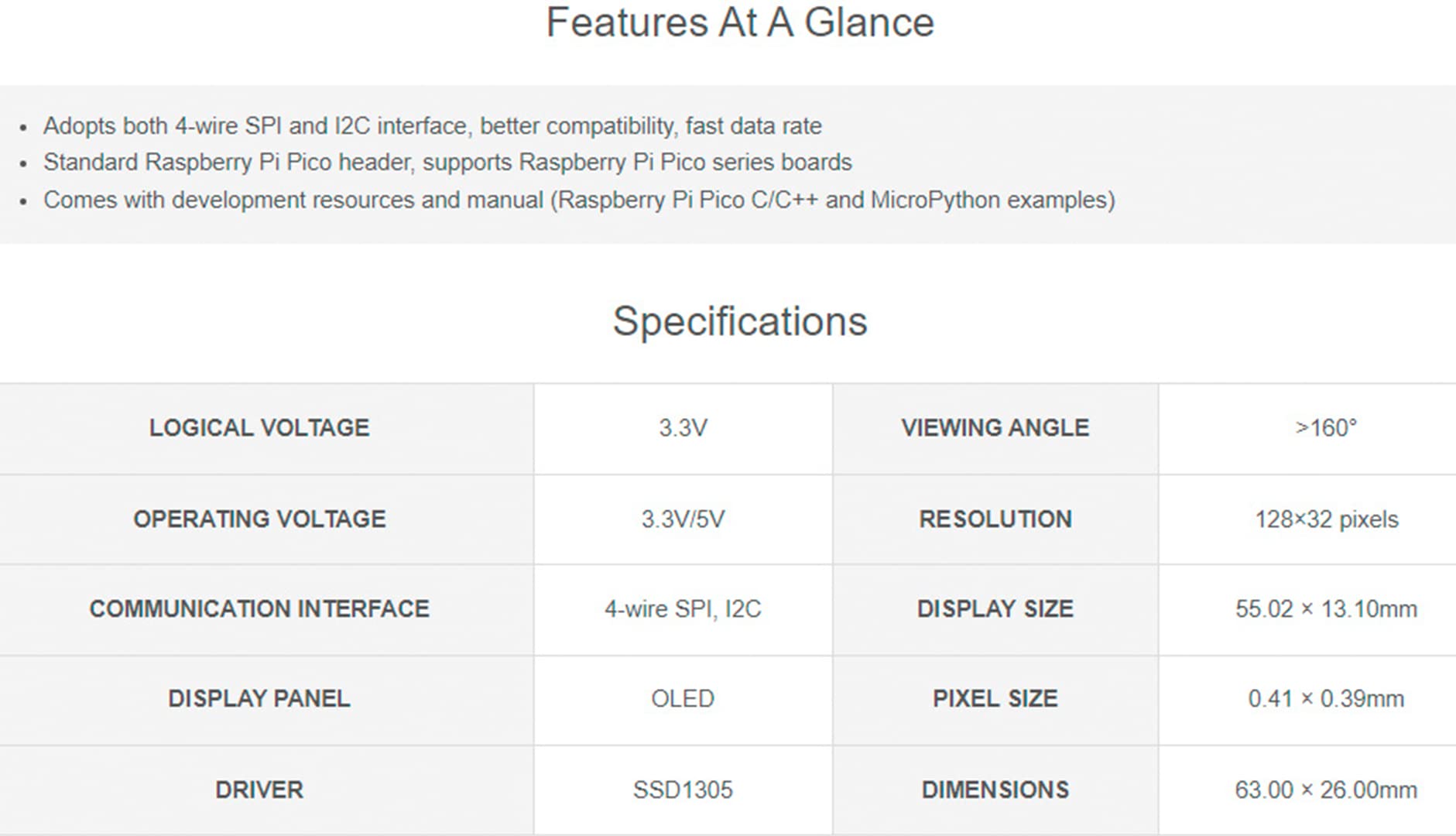

•Logical voltage：3.3V. Operating voltage: 3.3V/5V. Viewing angle:>160°
•Display size: 55.02 × 13.10mm. Pixel size: 0.41 × 0.39mm. Dimensions : 63.00 × 26.00mm.
•Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
