waveshare 2-DOF Pan-Tilt HAT for Any Version of Raspberry Pi/Jetson Nano Onboard PCA9685 PWM Chip and TSL2581 Ambient Light Sensor for Camera Moving and Light Intensity Sensing
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano

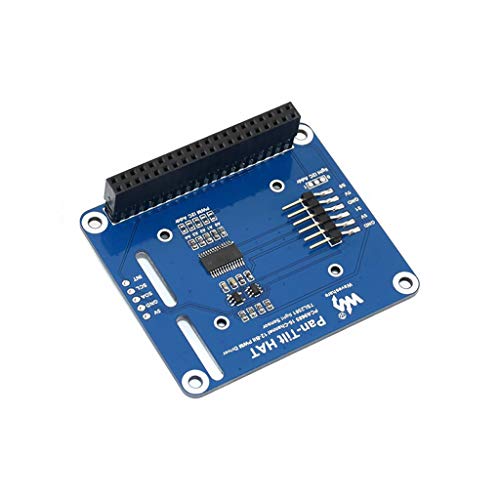

•I2C interface, only 2 pins are required for moving and light intensity sensing; Onboard PCA9685 chip, provides 12-bit resolution PWM signal for moving control
•Onboard TSL2581FN light-to-digital converter, with embedded ADC, provides a value that approximates the human eye response to assist the module

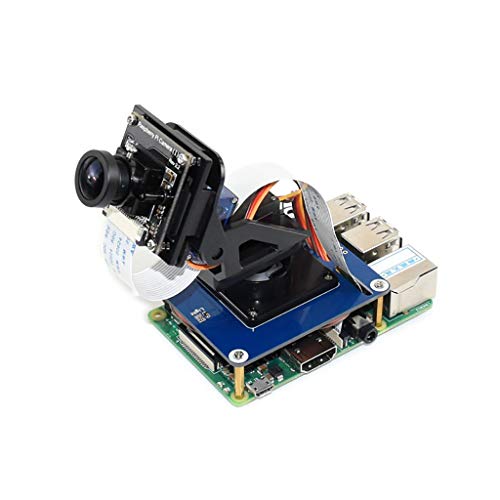

•Onboard voltage level translator, compatible with 3.3V/5V operating voltage; Specific acrylic board to fix the Raspberry Pi camera, make it easy to install
