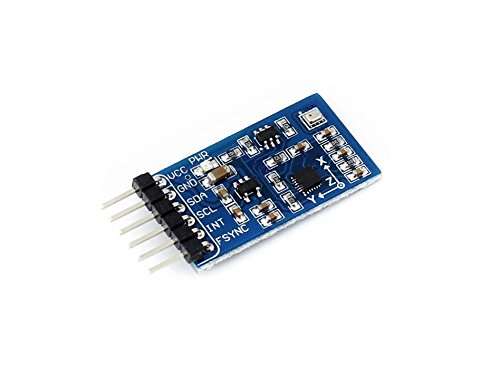

waveshare 10 DOF IMU Sensor (C) Inertial Measurement Unit with MPU9250 Onboard and BMP280 Sensor Lower Power Consumption and Higher Performance.
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•10 DOF IMU Sensor (C) is good at motion monitor, as well as detecting/measuring the position, height, and temperature. It would be helpful for making your own copter or balancing robot, provides great man-machine interaction.
•MPU9250: 3-axis gyroscope, 3-axis accelerometer, and 3-axis compass/magnetometer Internal Digital Motion Processing (DMP) engine, offloads complicate fusion calculation, sensor synchronization, gesture recognition, etc. Comparing with MPU6050, it is lower power consumption, and more suitable for wearable devices
•BMP280: barometric pressure sensor Embedded temperature sensor for temperature compensation Comparing with BMP180, it is lower power consumption, and higher performance
•You can get the 10 DOF data through I2C interface
•Power: 3.3V~5.5V (internal voltage regulation with low dropout)
