NewIGEYAPA
Water Level Sensor Control Relay IGEYAPA 10A GRL8-01 AC/DC 24V-240V Liquid Level Control Relay in Din Rail, Automatic Drain and Inlet Electronic Liquid Level Controller
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

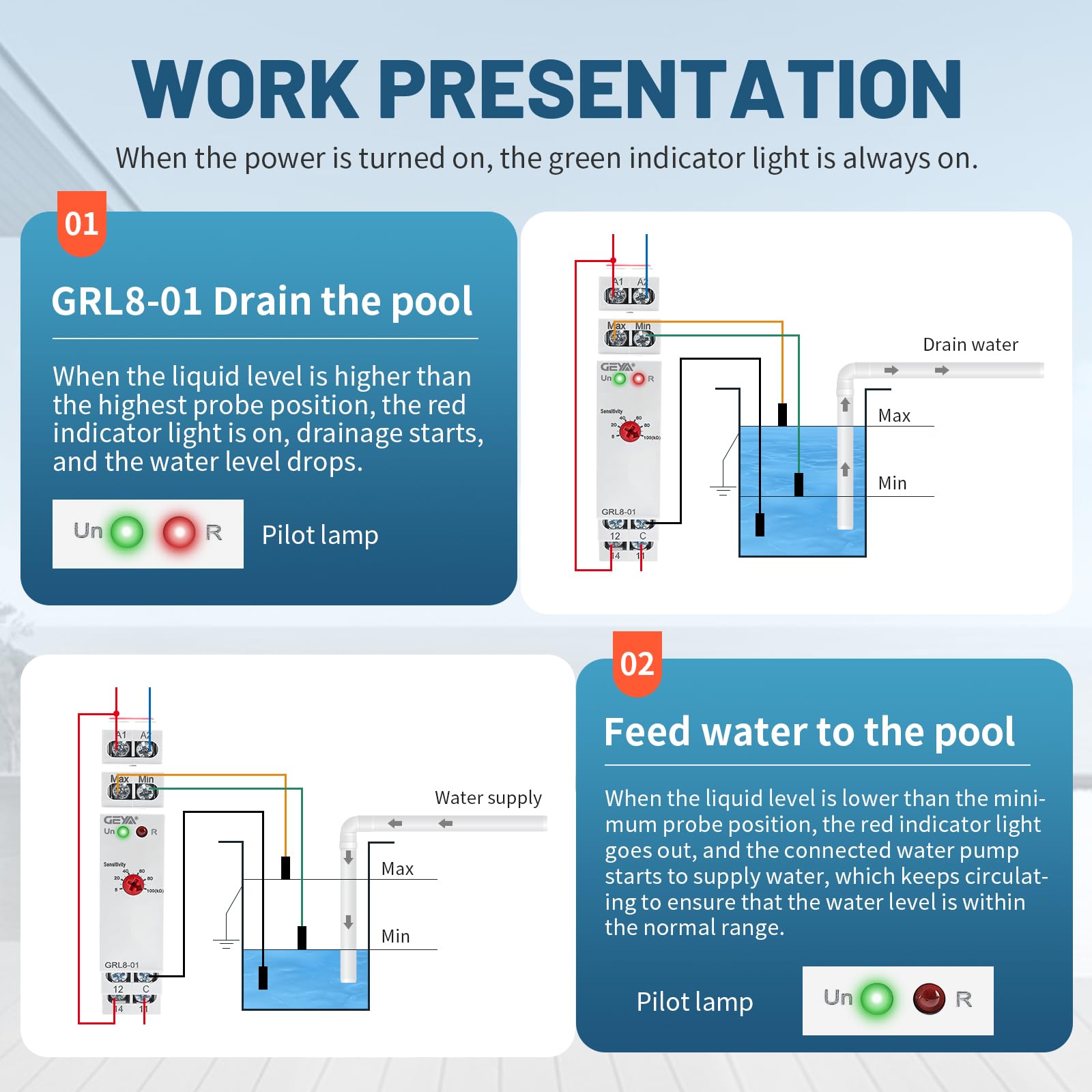

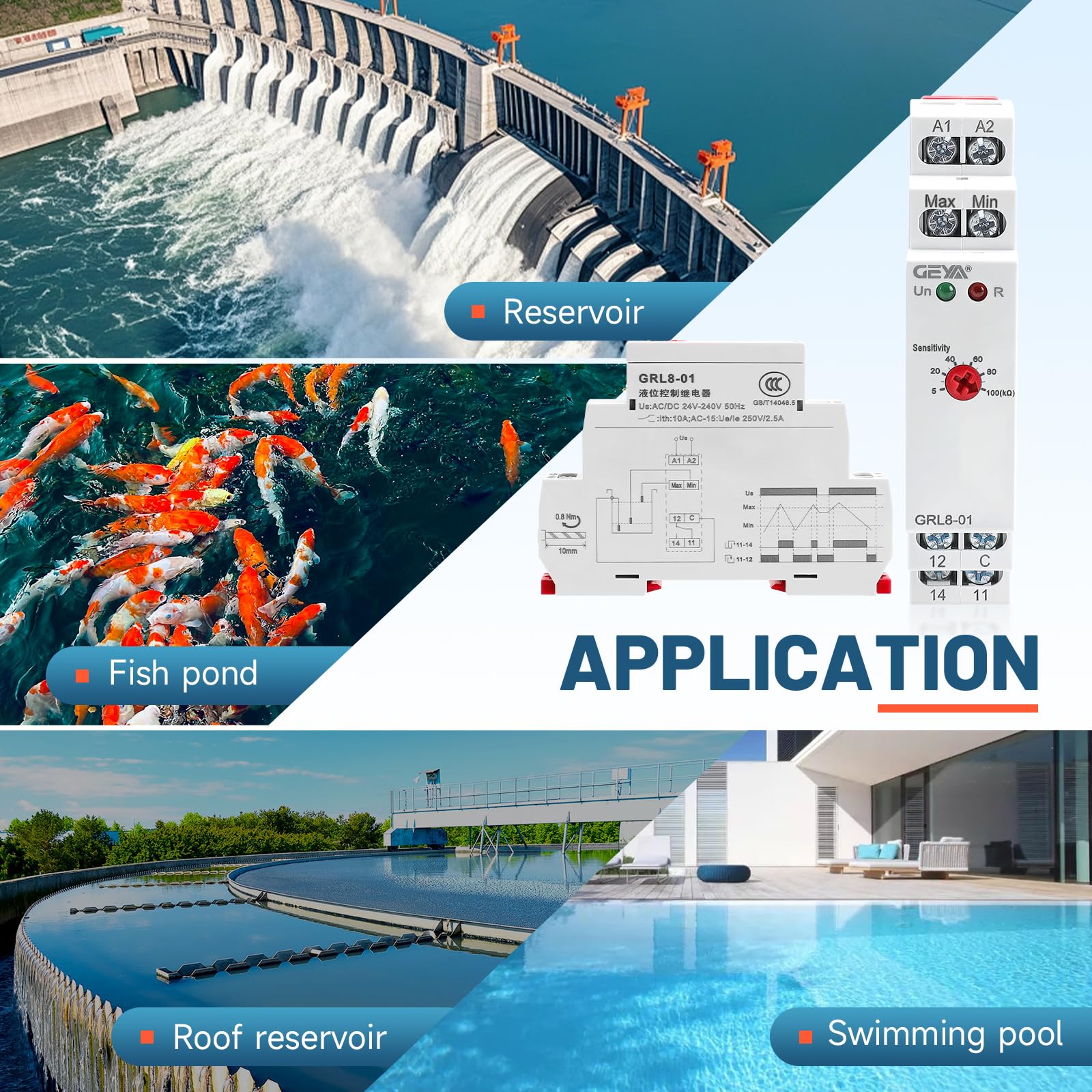

•FUNCTION & APPLICATION : grl8-01 water level controller liquid level relay, a wide operating voltage of AC/DC 24-240V (50-60Hz), and a rated current of 10A. Sensitivity 5-100kΩ, maximum and minimum water level monitoring and control. By connecting electric ball valves, water pumps, and controllers, it can realize automatic water supply and drainage in fish ponds, reservoirs, swimming pools, water tanks, etc.

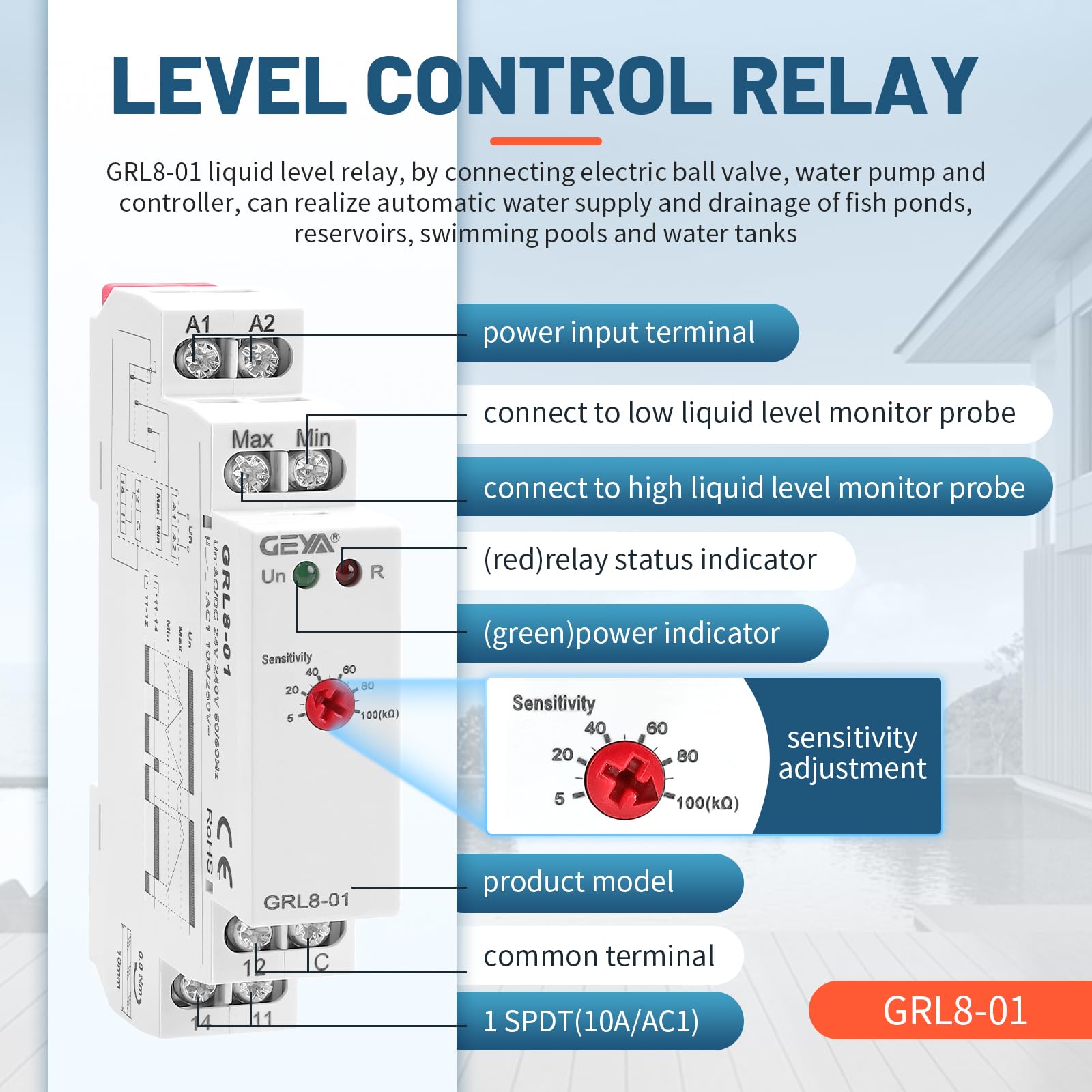

•INDICATOR BUTTON : grl8 01 ac dc 24-240v adjustable liquid level relay working status is indicated by LED indicator: power indicator: green LED (constantly on means the input power terminal is normal).

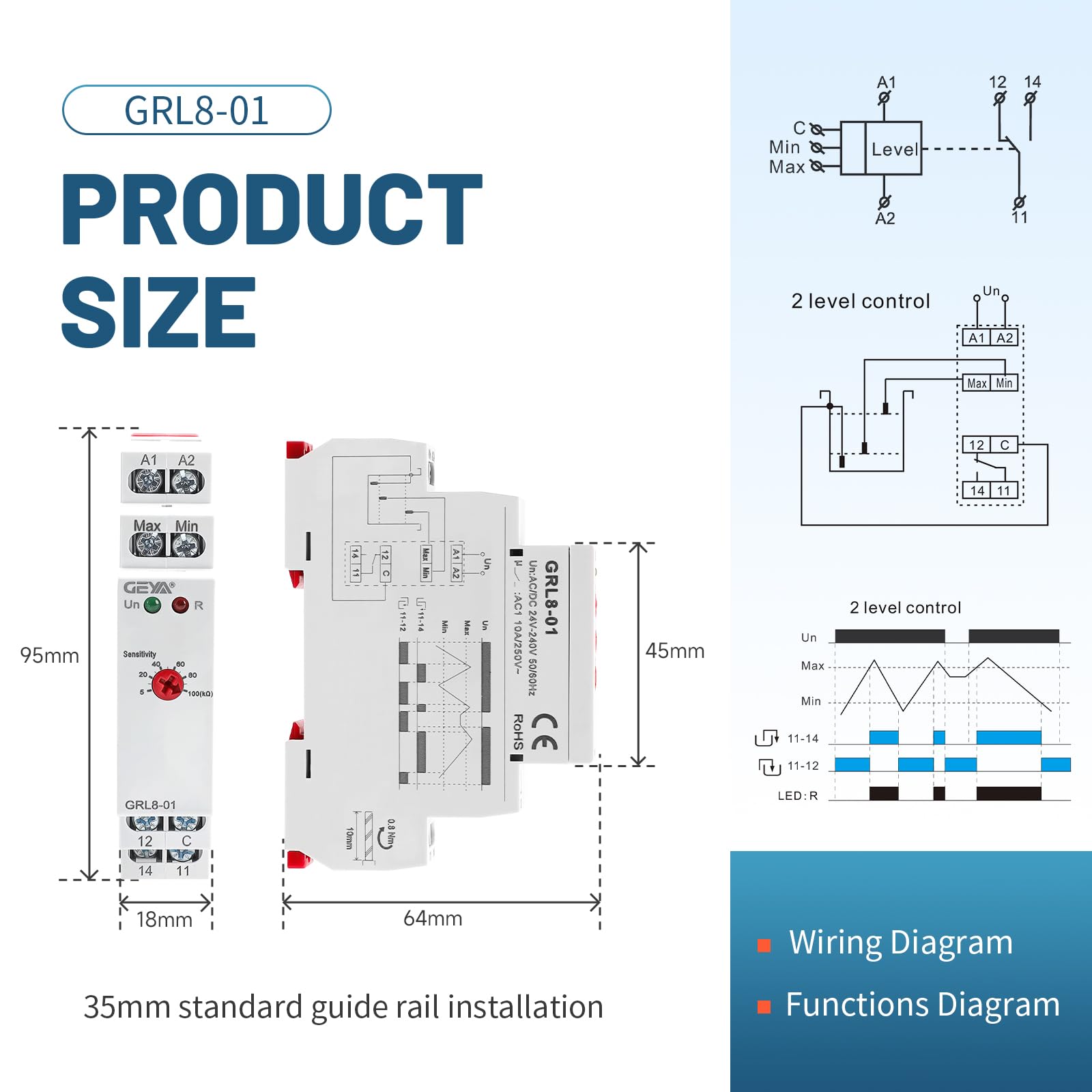

•COMPACT AND EASY TO INSTALL: grl8 01 liquid level control relay dimensions are dimensions: 90 x 18 x 64mm/3.5 x 0.7 x 2.5 inches, mounted on 35mm DIN rail, 2.85 ounces, easy to install, portable and compact, electrical components supporting this standard can be easily clipped on the rail, no screws required, maintenance is also very convenient
•CHOICE MATERIALS : grl8 01 level relay relay made of industrial grade plastic , compliant with , CE, CB, RoHS standards, flame retardant, relay switch has a sealing ring that can isolate dust and oxygen, and can work stably in humid environments to protect your expensive equipment
•WORRY FREE AFTER-SALES SERVICE: IGEYAPA provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to IGEYAPA at any time, watch the video and instructions before operation, which can better help you use the grl8 01 relay
