NewAce Instruments

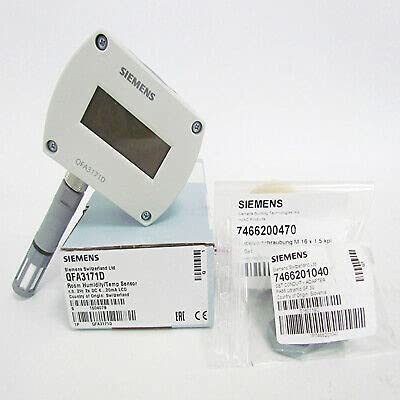

Wall Mounting Temperature and Humidity Sensor for Laboratories, Hospitals, Computers and EDP Centers Along with Calibration Certificate Model: QFA3171D (with LCD Display)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

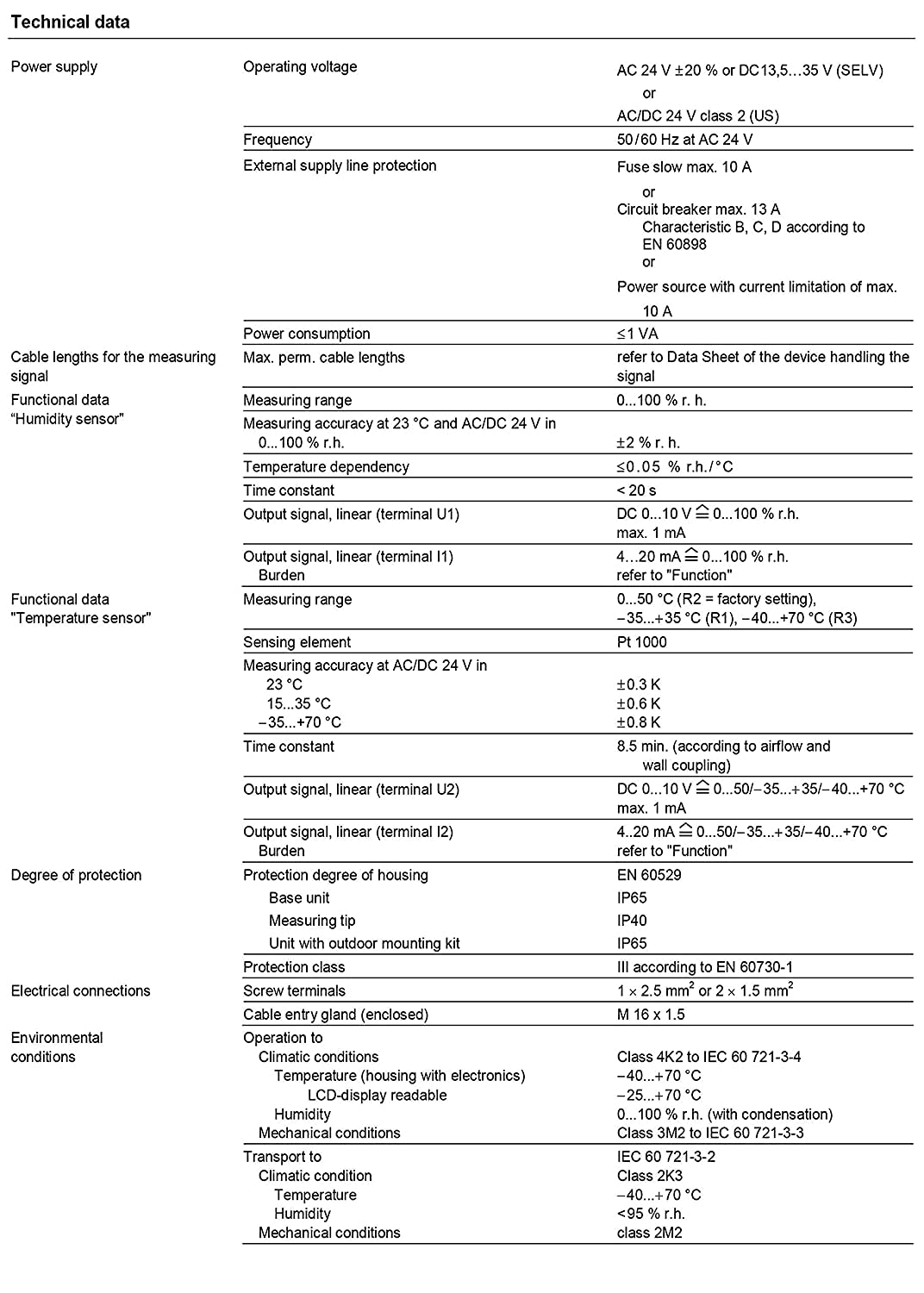

•Features: Operating voltage AC 24 V / DC 13.5-35 V
•Signal output DC 0-10 V / 4-20 mA for relative humidity and temperature
•Very high measuring accuracy across the entire measuring range
•Capacitive humidity measurement
•Function test
•Temperature Range: 32°F to 122°F / 0°C to 50°C; Accuracy: At 23°C: ±0.3 K; At 15 to 35°C: ±0.6 K; At -35 to +70°C: ±0.8 K
•Humidity Range: 0 to 100% Rh; Accuracy: At 0-100% r.h.: ±2 % r.h.
•Operating Temperature: -25 to +70 °C
•Operating Humidity: 0 to 100 % r.h. (with condensation)
•Display: Clear LCD Display
•Temperature dependency: ≤0.05 % r.h./°C
•Time Constant: Humidity: <20s; Temperature: 8.5 min.(according to airflow and wall coupling)

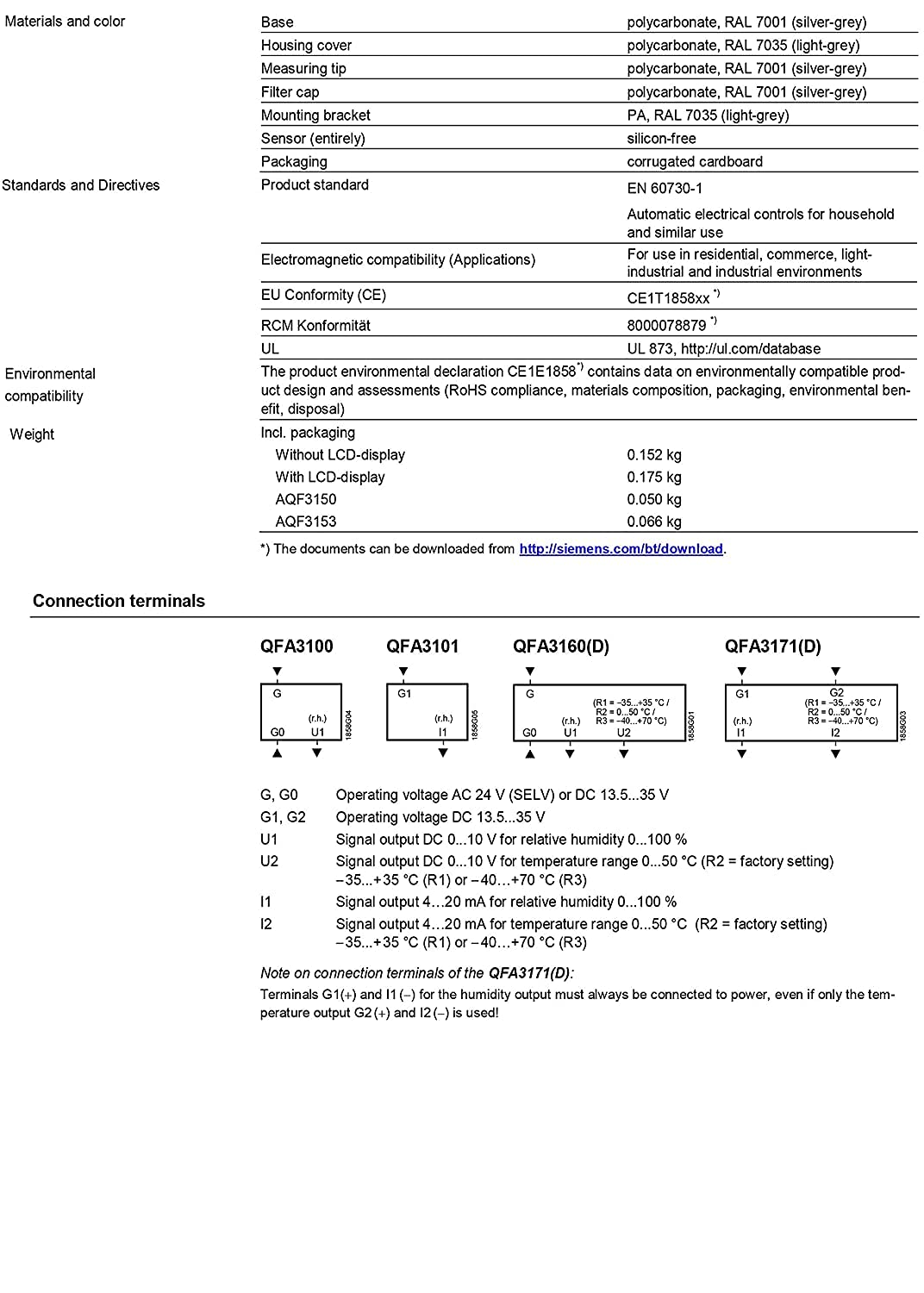

•Connection Electrical: Screw terminals: 1x2.5 mm2 or 2x1.5 mm2
•Signal output: DC 0-10 V / 4-20 mA for relative humidity and temperature
•Degree Of Protection: Protection degree of housing: EN 60529; Base unit: IP65; Measuring tip: IP40; Unit with outdoor mounting kit: IP65
•Weight: 0.175 kg.
•Supply Scope: 1 Unit of QFA3171D Temperature and Humidity Sensor, Instruction Manual and Calibrated Certificate
•Applications: paper, textile, pharmaceutical, food, chemical and electronics industry, etc., Laboratories, Hospitals, Indoor swimming-pools, Computer and EDP centers, Greenhouses With the AQF3100 accessory for outdoor use
