Visionis VIS-EL103-FSE 770lbs Electric Door Strike Lock for Wood Metal Doors 12V Fail Secure Normally Open Access Control

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

•Lock Size: 124Lx46Wx39H (mm) – 4.88Lx1.81Wx1.53H (in.) Holding Strength: 350kg (770 pounds) Voltage: 12VDC
•Current: 180 – 200 mA Feature: Fail Secure. N/O with power is unlocked Microswitch / Monitoring / 305: Yes

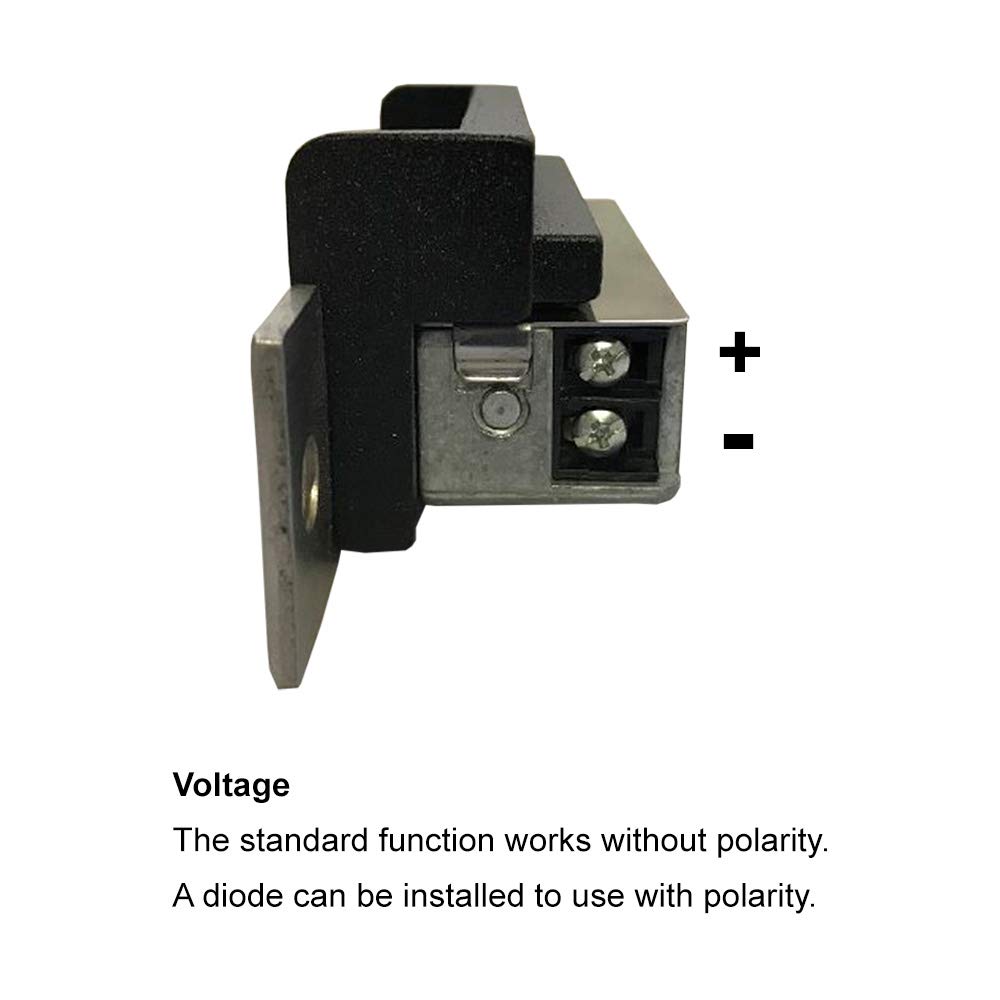

•Suitable For: Wooden Door, Metal Door, PVC Door Connections Power supply: No polarity (Polarity if a diode is installed). Microswitch: COM contact, NC contact, NO contact.
•Cycles Tested: 300.000 Operating Temperature: -15°C / +40°C (5°F / 104°F)
•Solenoid: Continuously duty Product + Packaging Weight: 0.39kg (0.86 pounds)

From USA

NewVisionis

Visionis VIS-EL103-FSE 770lbs Electric Door Strike Lock for Wood Metal Doors 12V Fail Secure Normally Open Access Control

ℹ

Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

•Lock Size: 124Lx46Wx39H (mm) – 4.88Lx1.81Wx1.53H (in.) Holding Strength: 350kg (770 pounds) Voltage: 12VDC
•Current: 180 – 200 mA Feature: Fail Secure. N/O with power is unlocked Microswitch / Monitoring / 305: Yes
•Suitable For: Wooden Door, Metal Door, PVC Door Connections Power supply: No polarity (Polarity if a diode is installed). Microswitch: COM contact, NC contact, NO contact.
•Cycles Tested: 300.000 Operating Temperature: -15°C / +40°C (5°F / 104°F)
•Solenoid: Continuously duty Product + Packaging Weight: 0.39kg (0.86 pounds)
