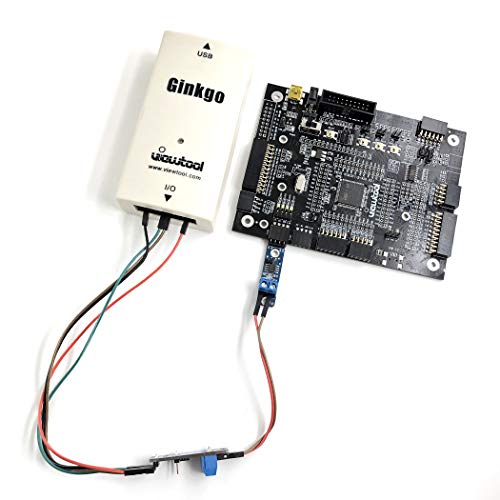

new | ViewTool Ginkgo Ficus USB to I2C/SPI/CAN Adapter Support Windows/Linux/MAC/Android/Raspberry Pi Compatible with UART/ADC/DAC/GPIO
Brand : ViewTool
new | ViewTool Ginkgo Ficus USB to I2C/SPI/CAN Adapter Support Windows/Linux/MAC/Android/Raspberry Pi Compatible with UART/ADC/DAC/GPIO
Brand : ViewTool
Availability :
Out Of Stock
Click to connect with our customer support
Product Specifications
Condition
New
Asin
B0825XXBBQ
Category
Electronics
Subcategory
Single Board Computers
Leafcategory
PC Accessory
Color
black
Origin
USA
Brandname
ViewTool
Height
0.7
Length
5
Width
3.8
Weight
1
Operating System
Android,Linux,Mac,Windows
RAM Memory Installed Size
64 GB
Product Details
USB-I2C/SPI/CAN adapter simulaneously working as well as ADC/DAC/PWM/GPIO/UART/COUNTERS
Complete STM32F105VCT6 periphierals lead out, all of pins could be used for critical resources requirement
Control all of STM32F105VCT6 resources through PC (USB) with ViewTool Ginkgo API interface

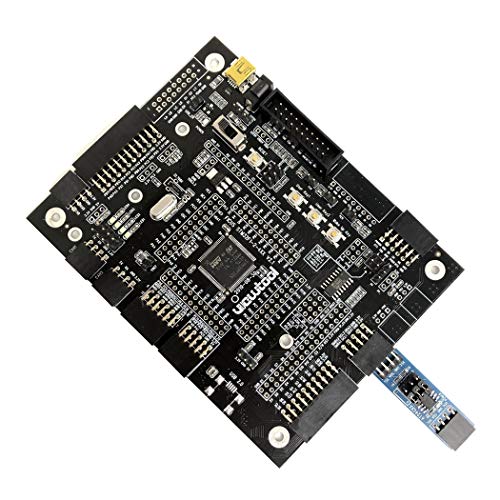

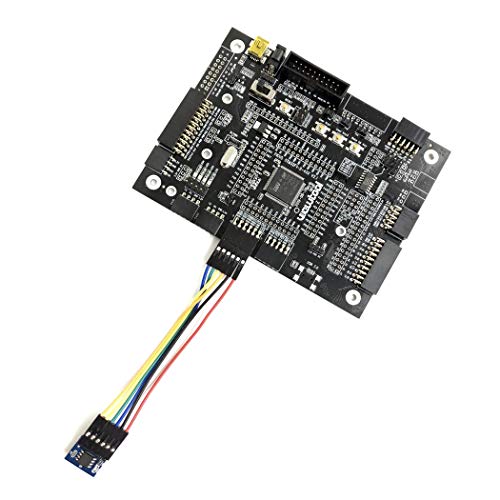

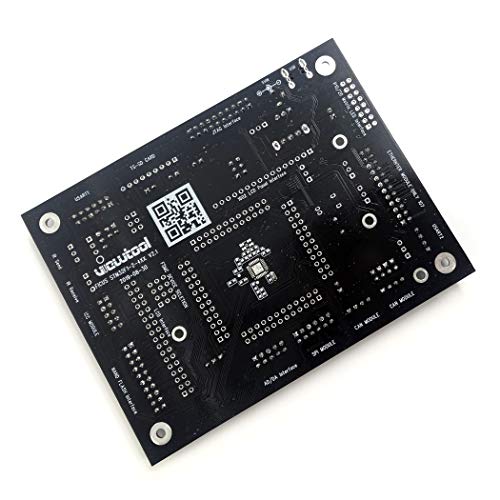

Evaluation board for various silicon chips as well as modules
Cross-platform, multiple programming language for various applications
Product Ranking
#12916 in Single Board Computers (Computers & Accessories)
Product Description
Typical Applications:
- USB-I2C/SPI/CAN adapter simulaneously working as well as ADC/DAC/PWM/GPIO/UART/COUNTERS
- Complete STM32F105VCT6 periphierals lead out, all of pins could be used for critical resources requirement
- Control all of STM32F105VCT6 resources through PC (USB) with ViewTool Ginkgo API interface
- Evaluation board for various silicon chips as well as modules
- SocketCAN
- Cross-platform, multiple programming language for various applications
- Power management chips with PMBus/SMBus interface control
- EEPROM or Flash devices accessing
- Data acqusition
- Analog voltage measurement and GPIO input or output control, DAC interface
- Compatible API interface with Viewtool Ficus development board, convenient for code integration and standalone usage
Feature:
- Support Linux,MAC,Windows,Android,RasPi
- USB power
- External power supply for larger current requirement
- I2C master/slave,Support SMBus/PMBus
- SPI master/slave
- SocketCAN protocol supported
- Lots of open source software examples (Crossing multiple OS with multiple languages)
- Support USB-SDI12, USB-EasyScale, UART, PWM, ADC/DAC, GPIO
- Multiple adapters can work in one PC at the same time (up to 100)
- Firmware upgrade
- Ginkgo API (Application Programming Interface) comes with docs and lots of application examples
- Available for customization of hardware (HW), silkscreen, firmware, driver and appliation software (SW), customization MOQ: HW=100,SW=10
Performance:
- USB 2.0 bus (fast speed)
- ARM 32-bit, Cortex-M3 CPU, 72 Mhz, 1.25 DMIPS/MHZ
- 256 Kbytes flash, 64 Kbytes SRAM
- 2 Hardware(standard) mode I2C protocol up to 1.2M (master and slave, SMBus/PMBus)
- Could be over 20 GPIO (software) mode I2C protocol bus
- 3 hardware SPIs(18 Mbit/s)
- 2 CAN interface (2.0B Active)
- 2 ADC (12bit,1us, 2MSPS) up to 16 channels
- SDI
